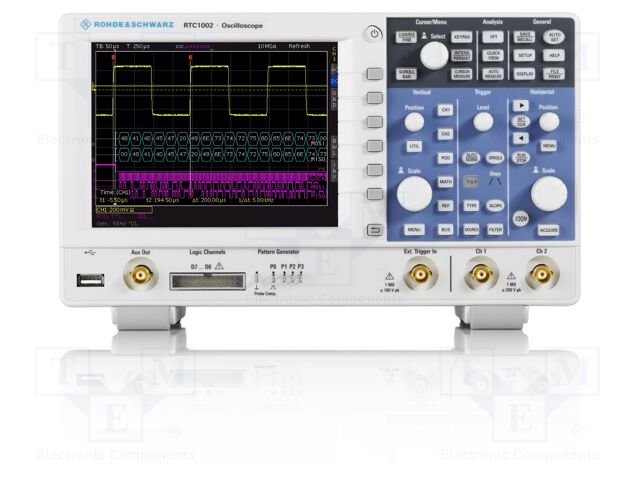

RTC1K-52M ROHDE & SCHWARZ

Category: Digital Oscilloscopes, Description: Oscilloscope: mixed signal; Ch: 2; 50MHz; 1Gsps; 1Mpts; 1n÷100s/div, Type of oscilloscope: mixed signal, Band: 50MHz, Number of channels: 2, Memory record length: 1Mpts, Sampling: 1Gsps, Max. input voltage: 150V, Trigger: falling-edge; impulse width; logic; rising-edge; serial protocol; video signal, Trigger modes: automatic; normal; single, Input coupling: AC, DC, GND, Vertical resolution: 8bit, Dimensions: 285x175x140mm, Standard equipment: mains cable; oscilloscope probe (1 per channel), Interface: Ethernet; USB, Input impedance: 1MΩ/14pF, Rise time: ≤7ns, Input sensitivity: 1mV/div...10V/div, Supply voltage: 100...240V AC, Measuring instrument features: EF function - electrical field detecion; mask testing; mathematical functions: addition, subtraction, division, multiplication and FFT, Trigger coupling: AC; DC; highpass; lowpass, Manufacturer series: RTC1000, Time base: 1n...100s/div, Supply voltage 400Hz: 100...120V AC, Kind of display used: colour; LCD 6,5", Display resolution: 640x480, Additional functions: function generator; voltmeter; with built-in component test function, кількість в упаковці: 1 шт.
