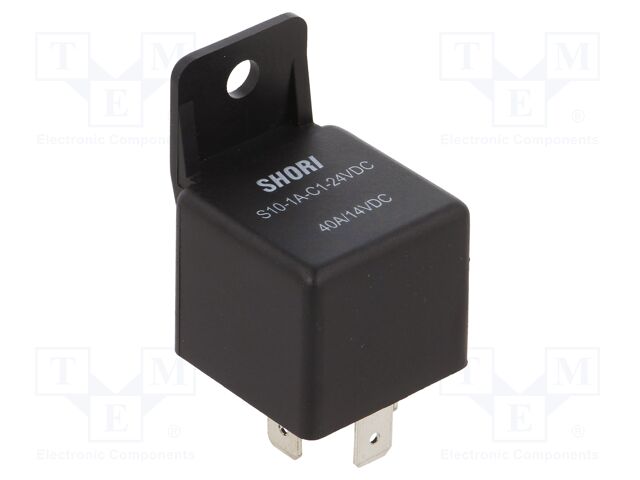

S10-1A-C1-24VDC SHORI ELECTRIC

Category: Automotive Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 40A
DC contacts rating @R: 40A / 12V DC
Manufacturer series: S10
Relay variant: automotive
Mounting: on panel; socket
Coil resistance: 320Ω
Operate time: 10ms
Body dimensions: 28.6x28.6x25.3mm
Release time: 10ms
Coil power consumption: 1.8W
Operating temperature: -30...80°C
Contact material: silver alloy
Coil voltage min.: 18V DC
Coil voltage max.: 36V DC
Contact resistance: 100mΩ
Coil current: 75mA
Related items: CS1-CW; RS-D03
Mechanical durability: 10000000 cycles
Leads: connectors 6,3x0,8mm
Electrical life: 100000 cycles
на замовлення 412 шт:
термін постачання 21-30 дні (днів)
Кількість | Ціна |
---|---|
4+ | 118.34 грн |
5+ | 100.91 грн |
14+ | 63.54 грн |
39+ | 59.80 грн |
Відгуки про товар
Написати відгук
Технічний опис S10-1A-C1-24VDC SHORI ELECTRIC
Category: Automotive Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 40A, DC contacts rating @R: 40A / 12V DC, Manufacturer series: S10, Relay variant: automotive, Mounting: on panel; socket, Coil resistance: 320Ω, Operate time: 10ms, Body dimensions: 28.6x28.6x25.3mm, Release time: 10ms, Coil power consumption: 1.8W, Operating temperature: -30...80°C, Contact material: silver alloy, Coil voltage min.: 18V DC, Coil voltage max.: 36V DC, Contact resistance: 100mΩ, Coil current: 75mA, Related items: CS1-CW; RS-D03, Mechanical durability: 10000000 cycles, Leads: connectors 6,3x0,8mm, Electrical life: 100000 cycles, кількість в упаковці: 1 шт.
Інші пропозиції S10-1A-C1-24VDC за ціною від 56.00 грн до 142.00 грн
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
S10-1A-C1-24VDC | Виробник : SHORI ELECTRIC |
![]() Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 40A; automotive Type of relay: electromagnetic Contacts configuration: SPST-NO Rated coil voltage: 24V DC Contact current max.: 40A DC contacts rating @R: 40A / 12V DC Manufacturer series: S10 Relay variant: automotive Mounting: on panel; socket Coil resistance: 320Ω Operate time: 10ms Body dimensions: 28.6x28.6x25.3mm Release time: 10ms Coil power consumption: 1.8W Operating temperature: -30...80°C Contact material: silver alloy Coil voltage min.: 18V DC Coil voltage max.: 36V DC Contact resistance: 100mΩ Coil current: 75mA Related items: CS1-CW; RS-D03 Mechanical durability: 10000000 cycles Leads: connectors 6,3x0,8mm Electrical life: 100000 cycles кількість в упаковці: 1 шт |
на замовлення 412 шт: термін постачання 14-21 дні (днів) |
|
||||||||||
S10-1A-C1-24VDC | Виробник : SHORI |
40A; 24VDC; SPST-NO; 1,8W; 28,6x28,6x25,3mm; contacts Ag; automotive; S10-1A-C1-24 SHORI P S10-1A-C1-24V кількість в упаковці: 20 шт |
на замовлення 94 шт: термін постачання 28-31 дні (днів) |
|
|||||||||||
![]() +1 |
Реле автомобільне S10-1A-C1-24VDC Код товару: 149293
Додати до обраних
Обраний товар
|
Виробник : Shori |
![]() Тип реле: Автомобільні Опис: Тип контактів: 1A; Uкотушки: 12VDC; Iкомутації: 40A; Rкотушки: 320 Ohm Габарити: 28,6x28,6x25,3 mm Напруга котушки: 24 VDC Струм макс.: 40 A Конфігурація контактів: SPST-NO(1A) |
товару немає в наявності
|
|
