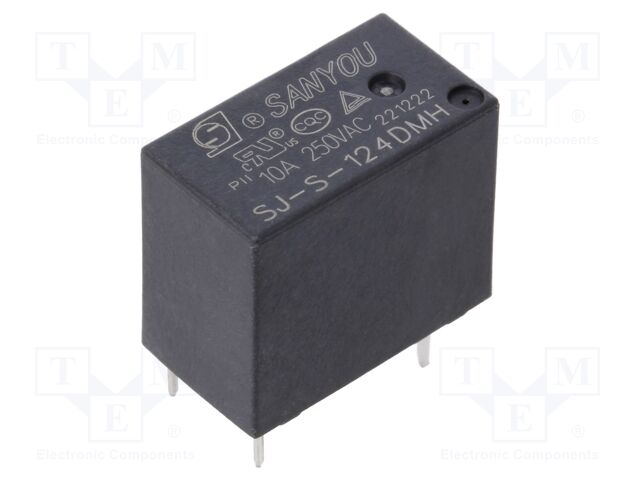

SJ-S-124DMH SANYOU
Виробник: SANYOU
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 12A
AC contacts rating @R: 10A / 250V AC
Manufacturer series: SJ-10A
Switched voltage: max. 277V AC
Mounting: THT
Coil resistance: 1.28kΩ
Coil voltage min.: 18V DC
Coil voltage max.: 31.2V DC
Body dimensions: 18.2x10.2x15.5mm
Coil power consumption: 450mW
Contact resistance: 100mΩ
Switching capacity: 3324VA
Contact material: AgSnO2
Operating temperature: -40...105°C
Relay variant: miniature
Current rating: 10A
| Кількість | Ціна |
|---|---|
| 10+ | 47.00 грн |
| 11+ | 38.27 грн |
| 30+ | 34.91 грн |
| 100+ | 26.35 грн |
Відгуки про товар
Написати відгук
Технічний опис SJ-S-124DMH SANYOU
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 12A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 12A, AC contacts rating @R: 10A / 250V AC, Manufacturer series: SJ-10A, Switched voltage: max. 277V AC, Mounting: THT, Coil resistance: 1.28kΩ, Coil voltage min.: 18V DC, Coil voltage max.: 31.2V DC, Body dimensions: 18.2x10.2x15.5mm, Coil power consumption: 450mW, Contact resistance: 100mΩ, Switching capacity: 3324VA, Contact material: AgSnO2, Operating temperature: -40...105°C, Relay variant: miniature, Current rating: 10A.
