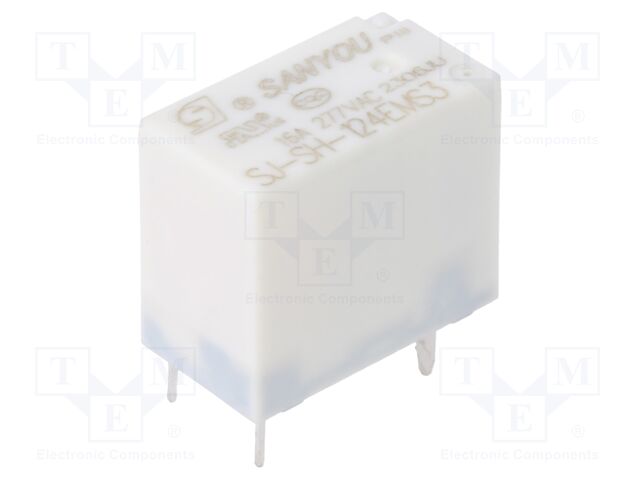

SJ-SH-124EMS

SJ-SH-124EMS SANYOU

pVersion=0046&contRep=ZT&docId=005056AB281E1EDD9AFA8D33333020D3&compId=SJ-16A-Datasheet.pdf?ci_sign=d50a4932e3360118b44773767486436900ff15f6 Виробник: SANYOU
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A
Type of relay: electromagnetic
Contacts configuration: SPST-NO
Rated coil voltage: 24V DC
Contact current max.: 16A
AC contacts rating @R: 16A / 277V AC
Manufacturer series: SJ-16A
Switched voltage: max. 277V AC
Relay variant: miniature
Mounting: THT
Coil resistance: 1.44kΩ
Coil voltage min.: 18V DC
Body dimensions: 18.2x10.2x15.5mm
Coil power consumption: 400mW
Switching capacity: 4432VA
Contact material: AgSnO2
Operating temperature: -40...105°C
Coil voltage max.: 31.2V DC
Current rating: 16A
Contact resistance: 100mΩ
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис SJ-SH-124EMS SANYOU

Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 16A, Type of relay: electromagnetic, Contacts configuration: SPST-NO, Rated coil voltage: 24V DC, Contact current max.: 16A, AC contacts rating @R: 16A / 277V AC, Manufacturer series: SJ-16A, Switched voltage: max. 277V AC, Relay variant: miniature, Mounting: THT, Coil resistance: 1.44kΩ, Coil voltage min.: 18V DC, Body dimensions: 18.2x10.2x15.5mm, Coil power consumption: 400mW, Switching capacity: 4432VA, Contact material: AgSnO2, Operating temperature: -40...105°C, Coil voltage max.: 31.2V DC, Current rating: 16A, Contact resistance: 100mΩ.
