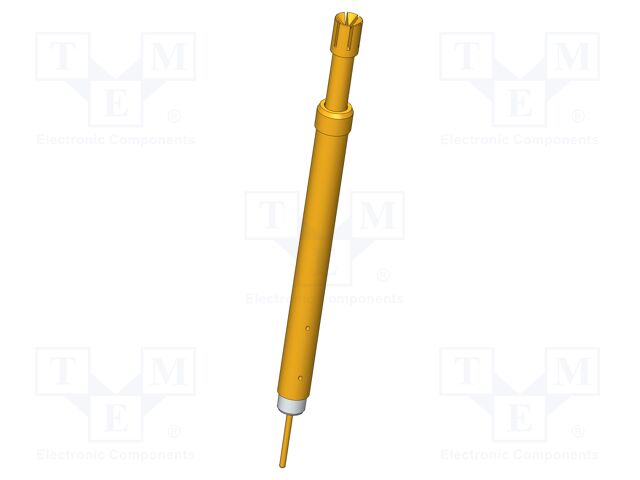

SKS-415 319 230 A 2302 2 INGUN
Виробник: INGUN
Category: Contact Probes
Description: Test needle; Maksimum spring compression: 5.2mm; 5A; Ø: 2.3mm
Manufacturer series: SKS-415
Current rating: 5A
Contact material: CuBe
Contact plating: gold-plated
Type of test accessories: test needle
Operating temperature: -40...80°C
Flange height: 2mm
Tip diameter: 2.3mm
Bit length: 3mm
Maksimum spring compression: 5.2mm
Length: 42.3mm
Max. contact resistance:: 100mΩ
Spring compression force: 0.5N
Blade tip shape: cone; inverted; slotted
Related items: KS-11323
Test accessories features: magnetic
Mounting: push-in
кількість в упаковці: 1 шт
Category: Contact Probes
Description: Test needle; Maksimum spring compression: 5.2mm; 5A; Ø: 2.3mm
Manufacturer series: SKS-415
Current rating: 5A
Contact material: CuBe
Contact plating: gold-plated
Type of test accessories: test needle
Operating temperature: -40...80°C
Flange height: 2mm
Tip diameter: 2.3mm
Bit length: 3mm
Maksimum spring compression: 5.2mm
Length: 42.3mm
Max. contact resistance:: 100mΩ
Spring compression force: 0.5N
Blade tip shape: cone; inverted; slotted
Related items: KS-11323
Test accessories features: magnetic
Mounting: push-in
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис SKS-415 319 230 A 2302 2 INGUN
Category: Contact Probes, Description: Test needle; Maksimum spring compression: 5.2mm; 5A; Ø: 2.3mm, Manufacturer series: SKS-415, Current rating: 5A, Contact material: CuBe, Contact plating: gold-plated, Type of test accessories: test needle, Operating temperature: -40...80°C, Flange height: 2mm, Tip diameter: 2.3mm, Bit length: 3mm, Maksimum spring compression: 5.2mm, Length: 42.3mm, Max. contact resistance:: 100mΩ, Spring compression force: 0.5N, Blade tip shape: cone; inverted; slotted, Related items: KS-11323, Test accessories features: magnetic, Mounting: push-in, кількість в упаковці: 1 шт.
