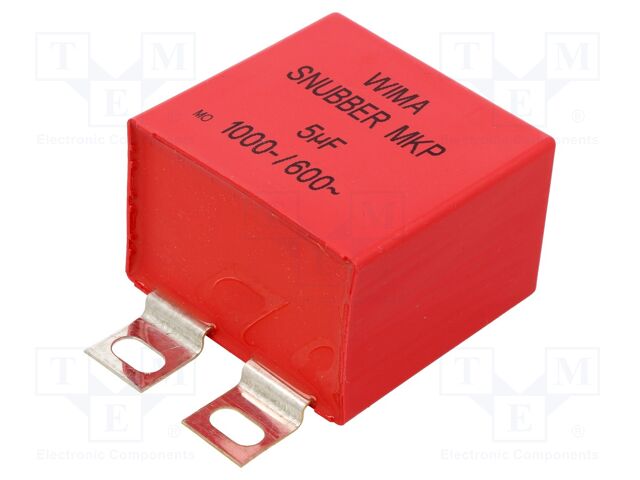

SNMPO145008L3GMS00 WIMA
Виробник: WIMA
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 5uF; Uoper: 1kVDC; Uoper max: 1kVDC; THT
Type of capacitor: polypropylene
Capacitance: 5µF
Operating voltage: 1kV DC
Max. operating voltage: 600V AC; 1kV DC
Body dimensions: 56x37x54mm
Tolerance: ±20%
Flammability rating: UL94V-0
Kind of material: flame retardant
Operating temperature: -55...110°C
Lead length: 6mm
Terminal pitch: 48.5mm
Pulse resistance: 390V/μs
Kind of package: Ammo Pack; reel; tape
Capacitors features: low dielectric loss factor; self-healing feature
Climate class: 55/100/56
Capacitor application: high frequency circuits; High Voltage circuits
Mounting: THT
Category: THT Film Capacitors
Description: Capacitor: polypropylene; 5uF; Uoper: 1kVDC; Uoper max: 1kVDC; THT
Type of capacitor: polypropylene
Capacitance: 5µF
Operating voltage: 1kV DC
Max. operating voltage: 600V AC; 1kV DC
Body dimensions: 56x37x54mm
Tolerance: ±20%
Flammability rating: UL94V-0
Kind of material: flame retardant
Operating temperature: -55...110°C
Lead length: 6mm
Terminal pitch: 48.5mm
Pulse resistance: 390V/μs
Kind of package: Ammo Pack; reel; tape
Capacitors features: low dielectric loss factor; self-healing feature
Climate class: 55/100/56
Capacitor application: high frequency circuits; High Voltage circuits
Mounting: THT
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис SNMPO145008L3GMS00 WIMA
Category: THT Film Capacitors, Description: Capacitor: polypropylene; 5uF; Uoper: 1kVDC; Uoper max: 1kVDC; THT, Type of capacitor: polypropylene, Capacitance: 5µF, Operating voltage: 1kV DC, Max. operating voltage: 600V AC; 1kV DC, Body dimensions: 56x37x54mm, Tolerance: ±20%, Flammability rating: UL94V-0, Kind of material: flame retardant, Operating temperature: -55...110°C, Lead length: 6mm, Terminal pitch: 48.5mm, Pulse resistance: 390V/μs, Kind of package: Ammo Pack; reel; tape, Capacitors features: low dielectric loss factor; self-healing feature, Climate class: 55/100/56, Capacitor application: high frequency circuits; High Voltage circuits, Mounting: THT.
