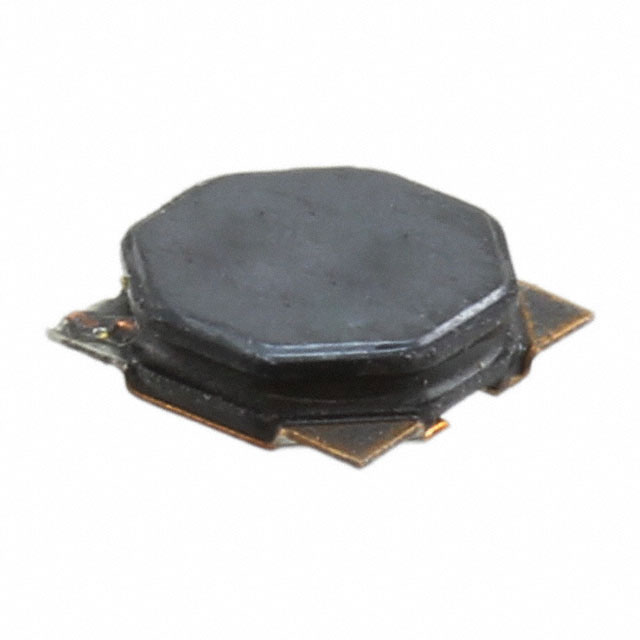

SRN4012-220M Bourns Inc.
Виробник: Bourns Inc.
Description: FIXED IND 22UH 620MA 480MOHM SMD
Tolerance: ±20%
Packaging: Tape & Reel (TR)
Current Rating (Amps): 620 mA
Inductance: 22 µH
Height - Seated (Max): 0.047" (1.20mm)
Inductance Frequency - Test: 100 kHz
Material - Core: Ferrite
Current - Saturation (Isat): 500mA
DC Resistance (DCR): 480mOhm Max
Operating Temperature: -40°C ~ 125°C
Type: Drum Core, Wirewound
Shielding: Shielded
Mounting Type: Surface Mount
Size / Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Package / Case: Nonstandard
Відгуки про товар
Написати відгук
Технічний опис SRN4012-220M Bourns Inc.
Description: FIXED IND 22UH 620MA 480MOHM SMD, Tolerance: ±20%, Packaging: Tape & Reel (TR), Current Rating (Amps): 620 mA, Inductance: 22 µH, Height - Seated (Max): 0.047" (1.20mm), Inductance Frequency - Test: 100 kHz, Material - Core: Ferrite, Current - Saturation (Isat): 500mA, DC Resistance (DCR): 480mOhm Max, Operating Temperature: -40°C ~ 125°C, Type: Drum Core, Wirewound, Shielding: Shielded, Mounting Type: Surface Mount, Size / Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm), Package / Case: Nonstandard.
