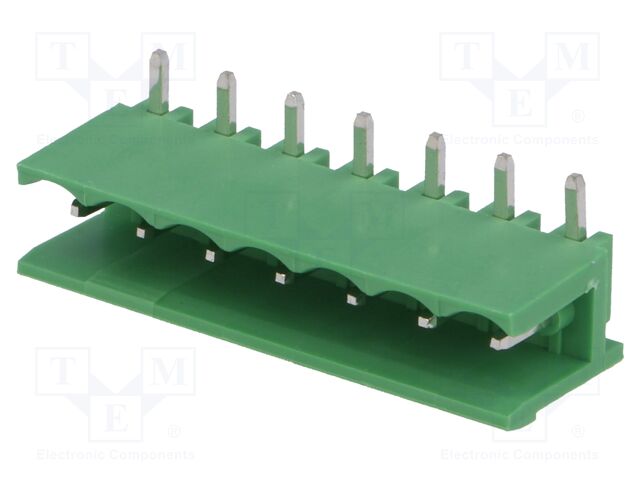

TBG-5-KB-7P/GN NINIGI
Виробник: NINIGI
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT
Type of connector: pluggable terminal block
Connector: socket
Kind of connector: male
Current rating: 15A
Rated voltage: 300V
Number of pins: 7
Spatial orientation: angled 90°
Connector variant: without side walls
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: brass
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 12.3mm
Connector pinout layout: 1x7
Contacts pitch: 5.08mm
Number of ways: 7
Locking system: friction lock
Height: 8mm
Connectors features: assembling possibility
Soldering temperature: 250°C / 5 s
Operating temperature: -40...105°C
Length: 35.56mm
кількість в упаковці: 1 шт
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; socket; male; 15A; 300V; THT
Type of connector: pluggable terminal block
Connector: socket
Kind of connector: male
Current rating: 15A
Rated voltage: 300V
Number of pins: 7
Spatial orientation: angled 90°
Connector variant: without side walls
Mechanical mounting: on PCBs
Electrical mounting: THT
Contact material: brass
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 12.3mm
Connector pinout layout: 1x7
Contacts pitch: 5.08mm
Number of ways: 7
Locking system: friction lock
Height: 8mm
Connectors features: assembling possibility
Soldering temperature: 250°C / 5 s
Operating temperature: -40...105°C
Length: 35.56mm
кількість в упаковці: 1 шт
на замовлення 1 шт:
термін постачання 14-21 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 304.74 грн |
| 20+ | 42.02 грн |
| 46+ | 24.15 грн |
| 127+ | 22.83 грн |
