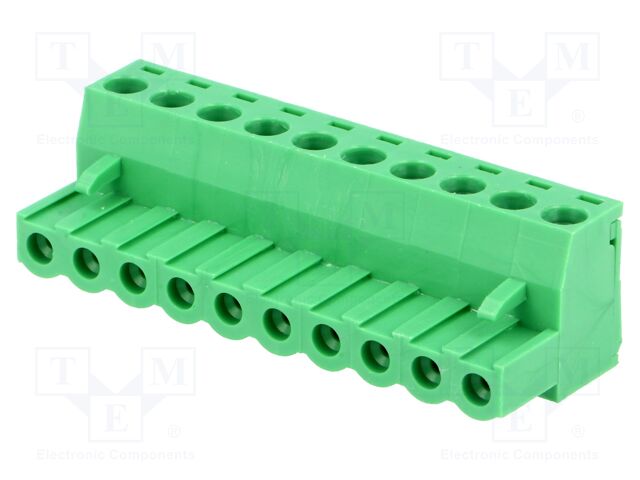

TBW-5-10P/GN NINIGI
Виробник: NINIGI
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 15A
Rated voltage: 300V
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 17.7mm
Connector pinout layout: 1x10
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 10
Locking system: latch
Number of terminals: 10
Height: 15.2mm
Operating temperature: -40...105°C
Length: 50.8mm
Contact material: brass
Stripped wire length: 8mm
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 15A
Rated voltage: 300V
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 17.7mm
Connector pinout layout: 1x10
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 10
Locking system: latch
Number of terminals: 10
Height: 15.2mm
Operating temperature: -40...105°C
Length: 50.8mm
Contact material: brass
Stripped wire length: 8mm
на замовлення 1473 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 155.15 грн |
| 10+ | 118.02 грн |
| 15+ | 62.84 грн |
| 40+ | 59.01 грн |
Відгуки про товар
Написати відгук
Технічний опис TBW-5-10P/GN NINIGI
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 15A, Rated voltage: 300V, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Depth: 17.7mm, Connector pinout layout: 1x10, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 10, Locking system: latch, Number of terminals: 10, Height: 15.2mm, Operating temperature: -40...105°C, Length: 50.8mm, Contact material: brass, Stripped wire length: 8mm, кількість в упаковці: 1 шт.
Інші пропозиції TBW-5-10P/GN за ціною від 70.81 грн до 186.18 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
TBW-5-10P/GN | Виробник : NINIGI |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10 Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 15A Rated voltage: 300V Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: screw terminal Contact plating: tinned Colour: green Flammability rating: UL94V-0 Body material: polyamide Depth: 17.7mm Connector pinout layout: 1x10 Wire cross-section: 2.5mm2 Contacts pitch: 5.08mm Number of ways: 10 Locking system: latch Number of terminals: 10 Height: 15.2mm Operating temperature: -40...105°C Length: 50.8mm Contact material: brass Stripped wire length: 8mm кількість в упаковці: 1 шт |
на замовлення 1473 шт: термін постачання 14-21 дні (днів) |
|
