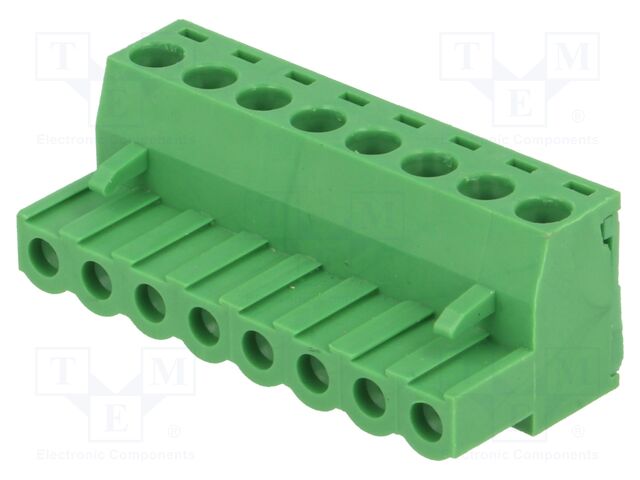

TBW-5-8P/GN NINIGI
Виробник: NINIGI
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x8
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 15A
Rated voltage: 300V
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 17.7mm
Connector pinout layout: 1x8
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 8
Locking system: latch
Number of terminals: 8
Height: 15.2mm
Operating temperature: -40...105°C
Length: 40.64mm
Contact material: brass
Stripped wire length: 8mm
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x8
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 15A
Rated voltage: 300V
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: polyamide
Depth: 17.7mm
Connector pinout layout: 1x8
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 8
Locking system: latch
Number of terminals: 8
Height: 15.2mm
Operating temperature: -40...105°C
Length: 40.64mm
Contact material: brass
Stripped wire length: 8mm
на замовлення 1307 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 122.14 грн |
| 10+ | 94.26 грн |
| 18+ | 50.58 грн |
| 50+ | 47.51 грн |
Відгуки про товар
Написати відгук
Технічний опис TBW-5-8P/GN NINIGI
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x8, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 15A, Rated voltage: 300V, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: polyamide, Depth: 17.7mm, Connector pinout layout: 1x8, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 8, Locking system: latch, Number of terminals: 8, Height: 15.2mm, Operating temperature: -40...105°C, Length: 40.64mm, Contact material: brass, Stripped wire length: 8mm, кількість в упаковці: 1 шт.
