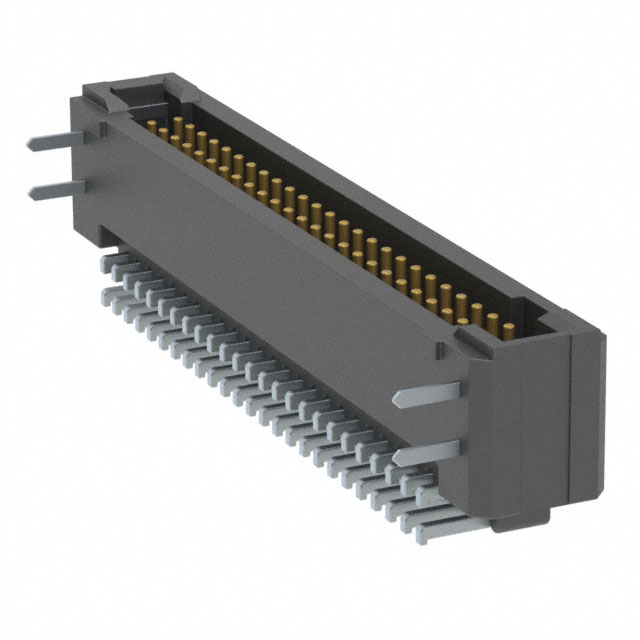

TFM-125-02-L-DH Samtec Inc.
Виробник: Samtec Inc.Description: CONN HEADER SMD R/A 50POS 1.27MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 275VAC
Current Rating (Amps): 3.2A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.225" (5.72mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
на замовлення 3153 шт:
термін постачання 21-31 дні (днів)
| Кількість | Ціна |
|---|---|
| 1+ | 846.43 грн |
| 10+ | 752.55 грн |
| 25+ | 712.03 грн |
| 50+ | 643.77 грн |
| 100+ | 506.59 грн |
| 500+ | 461.10 грн |
| 1000+ | 364.03 грн |
| 2000+ | 273.86 грн |
Відгуки про товар
Написати відгук
Технічний опис TFM-125-02-L-DH Samtec Inc.
Description: CONN HEADER SMD R/A 50POS 1.27MM, Packaging: Tube, Connector Type: Header, Voltage Rating: 275VAC, Current Rating (Amps): 3.2A per Contact, Mounting Type: Surface Mount, Right Angle, Number of Positions: 50, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 125°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.050" (1.27mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Insulation Height: 0.225" (5.72mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Row Spacing - Mating: 0.050" (1.27mm), Contact Length - Mating: 0.150" (3.81mm).
Інші пропозиції TFM-125-02-L-DH за ціною від 643.90 грн до 919.92 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFM-125-02-L-DH | Виробник : Samtec |
Headers & Wire Housings High-Reliability Tiger Eye Terminal Strips, .050" Pitch |
на замовлення 156 шт: термін постачання 21-30 дні (днів) |
|
