TFML-107-01-L-D-LC Samtec
Виробник: Samtec
Headers & Wire Housings Tiger Eye High-Reliability Locking Terminal Strip, 0.050" Pitch
| Кількість | Ціна |
|---|---|
| 2+ | 324.08 грн |
| 94+ | 260.42 грн |
| 517+ | 170.89 грн |
| 1034+ | 166.67 грн |
Відгуки про товар
Написати відгук
Технічний опис TFML-107-01-L-D-LC Samtec

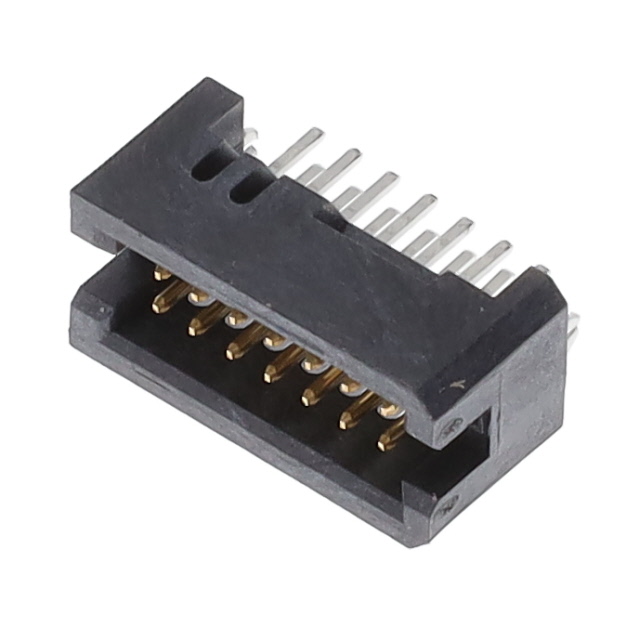

Description: CONN HEADER VERT 14POS 1.27MM, Contact Length - Mating: 0.134" (3.39mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Liquid Crystal Polymer (LCP), Shrouding: Shrouded - 4 Wall, Insulation Height: 0.220" (5.60mm), Contact Length - Post: 0.075" (1.91mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Friction Lock, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 14, Mounting Type: Through Hole, Connector Type: Header, Features: Board Lock, Packaging: Tube.
Інші пропозиції TFML-107-01-L-D-LC за ціною від 205.23 грн до 391.63 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TFML-107-01-L-D-LC | Samtec Inc. |
Description: CONN HEADER VERT 14POS 1.27MM Contact Length - Mating: 0.134" (3.39mm) Row Spacing - Mating: 0.050" (1.27mm) Insulation Material: Liquid Crystal Polymer (LCP) Shrouding: Shrouded - 4 Wall Insulation Height: 0.220" (5.60mm) Contact Length - Post: 0.075" (1.91mm) Contact Shape: Square Contact Finish - Post: Tin Contact Finish Thickness - Mating: 15.0µin (0.38µm) Contact Finish - Mating: Gold Pitch - Mating: 0.050" (1.27mm) Insulation Color: Black Contact Material: Phosphor Bronze Material Flammability Rating: UL94 V-0 Termination: Solder Number of Positions Loaded: All Fastening Type: Friction Lock Contact Type: Male Pin Operating Temperature: -55°C ~ 125°C Style: Board to Board or Cable Number of Rows: 2 Number of Positions: 14 Mounting Type: Through Hole Connector Type: Header Features: Board Lock Packaging: Tube |
на замовлення 1209 шт: термін постачання 21-31 дні (днів) |
|
| TFML-107-01-L-D-LC |
|
Виробник: Samtec Inc.
Description: CONN HEADER VERT 14POS 1.27MM
Contact Length - Mating: 0.134" (3.39mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.075" (1.91mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Friction Lock
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 14
Mounting Type: Through Hole
Connector Type: Header
Features: Board Lock
Packaging: Tube
Description: CONN HEADER VERT 14POS 1.27MM
Contact Length - Mating: 0.134" (3.39mm)
Row Spacing - Mating: 0.050" (1.27mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.220" (5.60mm)
Contact Length - Post: 0.075" (1.91mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.050" (1.27mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Friction Lock
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 14
Mounting Type: Through Hole
Connector Type: Header
Features: Board Lock
Packaging: Tube
на замовлення 1209 шт:
термін постачання 21-31 дні (днів)| Кількість | Ціна |
|---|---|
| 1+ | 391.63 грн |
| 10+ | 342.38 грн |
| 100+ | 301.64 грн |
| 500+ | 240.61 грн |
| 1000+ | 205.23 грн |
