Продукція > AMPHENOL ANYTEK > TJ0201520000G

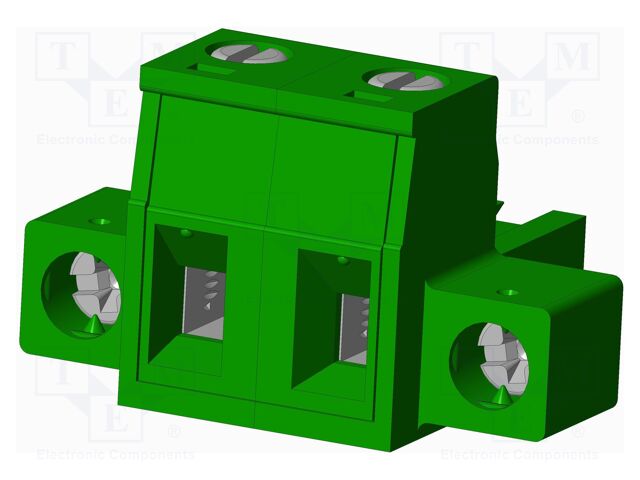

TJ0201520000G AMPHENOL ANYTEK

Name: TJ0201520000G
Brand: AMPHENOL ANYTEK
SKU: 460269094-1
Price: 67891.2 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894D3772920D6&compId=TJ7.622.pdf?ci_sign=277f61d90100232545a62ef13d6cc47d5169ca3c

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93

Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x2
Colour: green
Operating temperature: -40...115°C
Mechanical mounting: for cable
Flammability rating: UL94V-0
Number of pins: 2
Connector pinout layout: 1x2
Contacts pitch: 7.62mm
Wire cross-section: 2.5mm²
Wire size: 24AWG...12AWG
Locking system: friction lock; threaded joint
Electrical mounting: screw terminal
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
Rated voltage: 300V
Current rating: 12A
Body material: thermoplastic
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис TJ0201520000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x2, Colour: green, Operating temperature: -40...115°C, Mechanical mounting: for cable, Flammability rating: UL94V-0, Number of pins: 2, Connector pinout layout: 1x2, Contacts pitch: 7.62mm, Wire cross-section: 2.5mm2, Wire size: 24AWG...12AWG, Locking system: friction lock; threaded joint, Electrical mounting: screw terminal, Spatial orientation: straight, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, Rated voltage: 300V, Current rating: 12A, Body material: thermoplastic, кількість в упаковці: 1 шт.

Інші пропозиції TJ0201520000G

Назва	Виробник	Інформація	Доступність	Ціна
TJ0201520000G	Виробник : Amphenol Anytek	Description: TERM BLOCK PLUG 2POS STR 7.62MM Packaging: Bulk Features: Mating Flange, Retention Latches (Non-Wire Side) Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 2 Pitch: 0.300" (7.62mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Positions Per Level: 2 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - UL: 300 V	товару немає в наявності	В кошику од. на суму грн.
TJ0201520000G	Виробник : Amphenol Anytek	Pluggable Terminal Blocks TB PLGBLE PLUG WF	товару немає в наявності	В кошику од. на суму грн.
TJ0201520000G	Виробник : AMPHENOL ANYTEK	Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x2 Colour: green Operating temperature: -40...115°C Mechanical mounting: for cable Flammability rating: UL94V-0 Number of pins: 2 Connector pinout layout: 1x2 Contacts pitch: 7.62mm Wire cross-section: 2.5mm² Wire size: 24AWG...12AWG Locking system: friction lock; threaded joint Electrical mounting: screw terminal Spatial orientation: straight Type of connector: pluggable terminal block Connector: plug Kind of connector: female Contact plating: tinned Rated voltage: 300V Current rating: 12A Body material: thermoplastic	товару немає в наявності	В кошику од. на суму грн.
