Продукція > AMPHENOL ANYTEK > TJ0471200000G

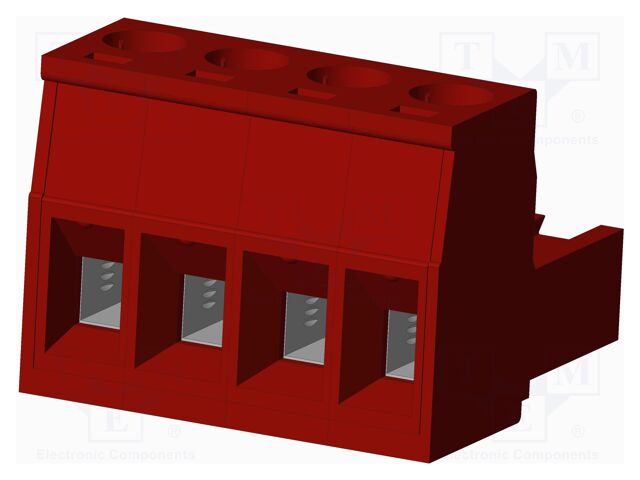

TJ0471200000G AMPHENOL ANYTEK

Name: TJ0471200000G
Brand: AMPHENOL ANYTEK
SKU: 460269281-1
Price: 178795.8 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC89435E08800D6&compId=TJ5.02.pdf?ci_sign=502e2e802f2412bb91f86715003973eee37b0deb

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93

Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66
Rated voltage: 300V
Operating temperature: -40...115°C
Current rating: 12A
Flammability rating: UL94V-0
Body material: PA66
Number of pins: 4
Contact material: phosphor bronze
Contacts pitch: 5mm
Wire size: 24AWG...12AWG
Electrical mounting: screw terminal
Mechanical mounting: for cable
Spatial orientation: straight
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Contact plating: tinned
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис TJ0471200000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66, Rated voltage: 300V, Operating temperature: -40...115°C, Current rating: 12A, Flammability rating: UL94V-0, Body material: PA66, Number of pins: 4, Contact material: phosphor bronze, Contacts pitch: 5mm, Wire size: 24AWG...12AWG, Electrical mounting: screw terminal, Mechanical mounting: for cable, Spatial orientation: straight, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Contact plating: tinned, кількість в упаковці: 1 шт.

Інші пропозиції TJ0471200000G

Назва	Виробник	Інформація	Доступність	Ціна
TJ0471200000G	Виробник : Amphenol Anytek	Description: TJ- 5.0- 2P RED ; "-" SLOT TYPE Features: Retention Latches (Non-Wire Side) Packaging: Bulk Color: Red Mounting Type: Free Hanging (In-Line) Number of Positions: 4 Pitch: 0.197" (5.00mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw - Leaf Spring, Wire Guard Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Wire Gauge or Range - mm²: 0.34-2.5mm² Positions Per Level: 4 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - UL: 300 V	товару немає в наявності	В кошику од. на суму грн.
TJ0471200000G	Виробник : Amphenol Anytek	Pluggable Terminal Blocks 500 TB PLU PLU DOWN/SIDE	товару немає в наявності	В кошику од. на суму грн.
TJ0471200000G	Виробник : AMPHENOL ANYTEK	Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 300V; PA66 Rated voltage: 300V Operating temperature: -40...115°C Current rating: 12A Flammability rating: UL94V-0 Body material: PA66 Number of pins: 4 Contact material: phosphor bronze Contacts pitch: 5mm Wire size: 24AWG...12AWG Electrical mounting: screw terminal Mechanical mounting: for cable Spatial orientation: straight Type of connector: pluggable terminal block Connector: plug Kind of connector: female Contact plating: tinned	товару немає в наявності	В кошику од. на суму грн.
