TJ0851570000G

TJ0851570000G AMPHENOL ANYTEK


pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC8949529CAC0D6&compId=TJ5.087.pdf?ci_sign=03ca0fd02ee58956dec6ee2a071c7b46d68fcdfc pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93 Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks

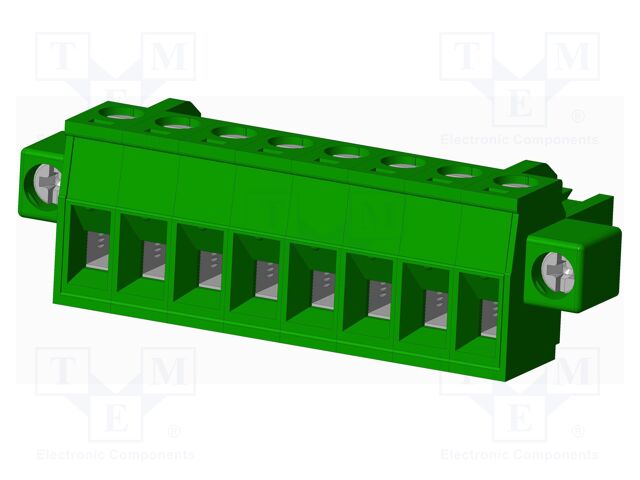

Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x8
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 12A
Rated voltage: 300V
Number of pins: 8
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: thermoplastic
Wire size: 24AWG...12AWG
Contacts pitch: 5.08mm
Operating temperature: -40...115°C
Connector pinout layout: 1x8
Wire cross-section: 2.5mm2
Locking system: friction lock; threaded joint
кількість в упаковці: 1 шт
товару немає в наявності

В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TJ0851570000G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 300V; 1x8, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 12A, Rated voltage: 300V, Number of pins: 8, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: thermoplastic, Wire size: 24AWG...12AWG, Contacts pitch: 5.08mm, Operating temperature: -40...115°C, Connector pinout layout: 1x8, Wire cross-section: 2.5mm2, Locking system: friction lock; threaded joint, кількість в упаковці: 1 шт.

Інші пропозиції TJ0851570000G

Фото Назва Виробник Інформація Доступність
Ціна
TJ0851570000G TJ0851570000G Виробник : Amphenol Anytek 3FxS1KP_OCFi.pdf Description: TERM BLOCK PLUG 8POS STR 5.08MM
Packaging: Bulk
Features: Mating Flange, Retention Latches (Non-Wire Side)
Color: Green
Mounting Type: Free Hanging (In-Line)
Number of Positions: 8
Pitch: 0.200" (5.08mm)
Type: Plug, Female Sockets
Operating Temperature: -40°C ~ 115°C
Termination Style: Screw - Rising Cage Clamp
Number of Levels: 1
Wire Gauge or Range - AWG: 12-24 AWG
Wire Gauge or Range - mm²: 1-2.5mm²
Positions Per Level: 8
Plug Wire Entry: 180°
Contact Mating Finish: Tin
Current - UL: 12 A
Voltage - UL: 300 V
