TJ1611530900G AMPHENOL ANYTEK

Name: TJ1611530900G
Brand: AMPHENOL ANYTEK
SKU: 460270006-1
Price: 1348550 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFABC894B1FC81C0D6&compId=TJ3.5.pdf?ci_sign=d740c70abbfe8313382c2e7950d224feda27f1e6

pVersion=0046&contRep=ZT&docId=005056AB281E1EDFB7AADCBA3BDF60DC&compId=TJ.pdf?ci_sign=9c656a9a94504bc7ffecf97a703e9135dad63f93

Виробник: AMPHENOL ANYTEK
Category: Pluggable terminal blocks

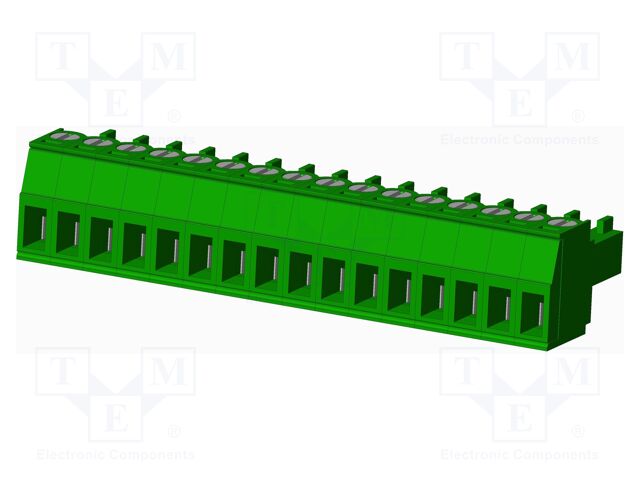

Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 10A
Rated voltage: 300V
Number of pins: 16
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: screw terminal
Contact material: phosphor bronze
Contact plating: tinned
Colour: green
Flammability rating: UL94V-0
Body material: PA66
Wire size: 28AWG...16AWG
Contacts pitch: 3.5mm
Operating temperature: -40...115°C
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис TJ1611530900G AMPHENOL ANYTEK

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 10A, Rated voltage: 300V, Number of pins: 16, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: screw terminal, Contact material: phosphor bronze, Contact plating: tinned, Colour: green, Flammability rating: UL94V-0, Body material: PA66, Wire size: 28AWG...16AWG, Contacts pitch: 3.5mm, Operating temperature: -40...115°C, кількість в упаковці: 1 шт.

Інші пропозиції TJ1611530900G

Назва	Виробник	Інформація	Доступність	Ціна
TJ1611530900G	Виробник : Amphenol Anytek	Description: TERM BLOCK PLUG 16POS 3.50MM Packaging: Bulk Color: Green Mounting Type: Free Hanging (In-Line) Number of Positions: 16 Pitch: 0.138" (3.50mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw - Leaf Spring, Wire Guard Number of Levels: 1 Wire Gauge or Range - AWG: 16-28 AWG Wire Gauge or Range - mm²: 1.5mm² Positions Per Level: 16 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 10 A Voltage - UL: 300 V	товару немає в наявності	В кошику од. на суму грн.
TJ1611530900G	Виробник : Amphenol Anytek	Pluggable Terminal Blocks PLUGGABLE SYSTEM	товару немає в наявності	В кошику од. на суму грн.
TJ1611530900G	Виробник : AMPHENOL ANYTEK	Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 10A; 300V; PA66 Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 10A Rated voltage: 300V Number of pins: 16 Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: screw terminal Contact material: phosphor bronze Contact plating: tinned Colour: green Flammability rating: UL94V-0 Body material: PA66 Wire size: 28AWG...16AWG Contacts pitch: 3.5mm Operating temperature: -40...115°C	товару немає в наявності	В кошику од. на суму грн.
