Продукція > INDEL > TSPZ14/004
TSPZ14/004

TSPZ14/004 INDEL

pVersion=0046&contRep=ZT&docId=E22A57A7C8F6ECF1A303005056AB0C4F&compId=ui39.pdf?ci_sign=d94ae49e50518b4bd312128288ead859351bce03 Виробник: INDEL
Category: PCB transformers

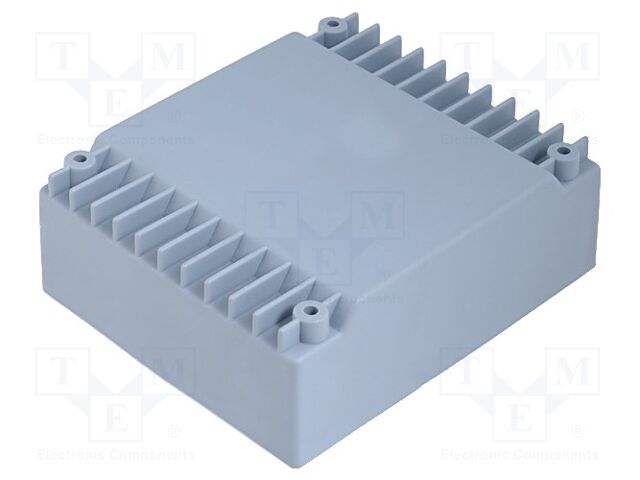

Description: Transformer: encapsulated; 14VA; 230VAC; 15V; 15V; 470mA; 470mA; PCB
Type of transformer: encapsulated
Power: 14VA
Primary voltage: 230V AC
Secondary voltage 1: 15V
Secondary voltage 2: 15V
Secondary winding current 1: 470mA
Secondary winding current 2: 470mA
IP rating: IP00
Insulation class: II
Thermal class: Ta40B
Conform to the norm: PN EN 61558
P dimension: 5mm
B dimension: 68mm
C dimension: 23.8mm
m dimension: 45mm
Electrical insulation strength: 4kV/60s
Mounting: PCB
A dimension: 57.2mm
A1 dimension: 50mm
B1 dimension: 62.5mm
товару немає в наявності
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TSPZ14/004 INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 14VA; 230VAC; 15V; 15V; 470mA; 470mA; PCB, Type of transformer: encapsulated, Power: 14VA, Primary voltage: 230V AC, Secondary voltage 1: 15V, Secondary voltage 2: 15V, Secondary winding current 1: 470mA, Secondary winding current 2: 470mA, IP rating: IP00, Insulation class: II, Thermal class: Ta40B, Conform to the norm: PN EN 61558, P dimension: 5mm, B dimension: 68mm, C dimension: 23.8mm, m dimension: 45mm, Electrical insulation strength: 4kV/60s, Mounting: PCB, A dimension: 57.2mm, A1 dimension: 50mm, B1 dimension: 62.5mm.
