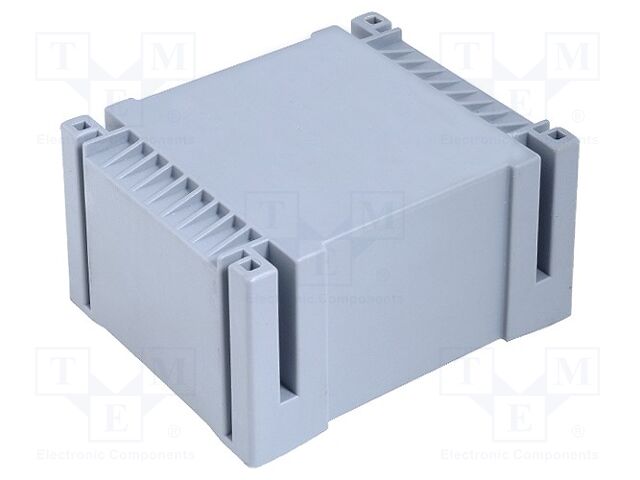

TSPZ4/005 INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 4VA; 230VAC; 15V; 15V; 130mA; 130mA; PCB, Type of transformer: encapsulated, Power: 4VA, Primary voltage: 230V AC, Secondary voltage 1: 15V, Secondary voltage 2: 15V, Secondary winding current 1: 0.13A, Secondary winding current 2: 130mA, Mounting: PCB, IP rating: IP00, Conform to the norm: PN EN 61558, Thermal class: Ta40B, Insulation class: II, A dimension: 44mm, A1 dimension: 37.5mm, B dimension: 53mm, B1 dimension: 47.5mm, C dimension: 18.8mm, P dimension: 5mm, Electrical insulation strength: 4kV/60s, m dimension: 35mm.
