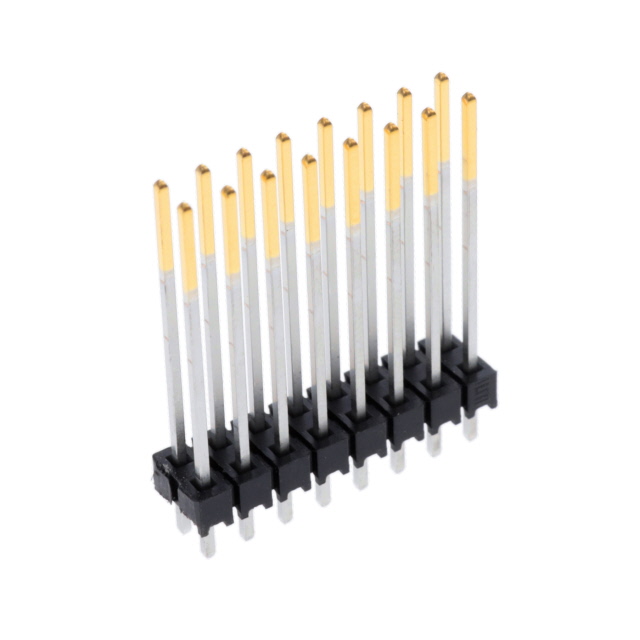

TSW-108-18-F-D Samtec Inc.
Виробник: Samtec Inc.
Description: CONN HEADER VERT 16POS 2.54MM
Contact Length - Mating: 0.720" (18.29mm)
Row Spacing - Mating: 0.100" (2.54mm)
Insulation Material: Polybutylene Terephthalate (PBT)
Overall Contact Length: 0.930" (23.62mm)
Shrouding: Unshrouded
Insulation Height: 0.100" (2.54mm)
Contact Length - Post: 0.110" (2.79mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Mating: Gold
Pitch - Mating: 0.100" (2.54mm)
Insulation Color: Black
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Push-Pull
Contact Type: Male Pin
Operating Temperature: -55°C ~ 125°C
Style: Board to Board or Cable
Number of Rows: 2
Number of Positions: 16
Mounting Type: Through Hole
Connector Type: Header
Packaging: Bulk
| Кількість | Ціна |
|---|---|
| 4+ | 104.43 грн |
| 50+ | 87.66 грн |
| 100+ | 76.29 грн |
Відгуки про товар
Написати відгук
Технічний опис TSW-108-18-F-D Samtec Inc.
Description: CONN HEADER VERT 16POS 2.54MM, Contact Length - Mating: 0.720" (18.29mm), Row Spacing - Mating: 0.100" (2.54mm), Insulation Material: Polybutylene Terephthalate (PBT), Overall Contact Length: 0.930" (23.62mm), Shrouding: Unshrouded, Insulation Height: 0.100" (2.54mm), Contact Length - Post: 0.110" (2.79mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 3.00µin (0.076µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.100" (2.54mm), Insulation Color: Black, Contact Material: Phosphor Bronze, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Operating Temperature: -55°C ~ 125°C, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 16, Mounting Type: Through Hole, Connector Type: Header, Packaging: Bulk.
Інші пропозиції TSW-108-18-F-D за ціною від 56.47 грн до 108.30 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TSW-108-18-F-D | Samtec |
Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch |
на замовлення 273 шт: термін постачання 21-30 дні (днів) |
|
| TSW-108-18-F-D |
|
Виробник: Samtec
Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch
Headers & Wire Housings Classic PCB Header Strips, 0.100" pitch
на замовлення 273 шт:
термін постачання 21-30 дні (днів)| Кількість | Ціна |
|---|---|
| 4+ | 108.30 грн |
| 50+ | 93.01 грн |
| 100+ | 70.18 грн |
| 500+ | 60.83 грн |
| 1000+ | 56.47 грн |
