TSZS 25/007M

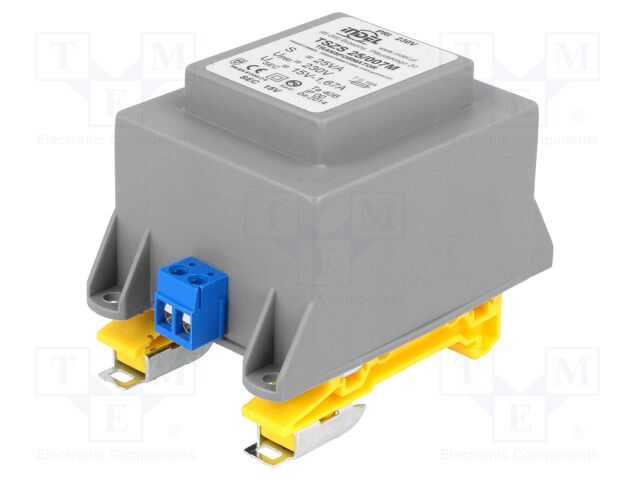

TSZS 25/007M INDEL

pVersion=0046&contRep=ZT&docId=005056AB752F1ED38DE2F3841002E9E4&compId=kk_tszs.pdf?ci_sign=fea45a97e3ede7a1bd00a05d520d9e4620734fcf Виробник: INDEL
Category: Transformers with Fastening
Description: Transformer: encapsulated; 25VA; 230VAC; 15V; 1.67A; IP00; A: 63.6mm
Type of transformer: encapsulated
Power: 25VA
Primary voltage: 230V AC
Secondary voltage 1: 15V
Secondary winding current 1: 1.67A
Leads: terminal block
Mounting: for DIN rail mounting
IP rating: IP00
Thermal class: Ta40B
Conform to the norm: PN EN 61558
Insulation class: II
A dimension: 63.6mm
A1 dimension: 41.8mm
B dimension: 53.6mm
B1 dimension: 35.8mm
C dimension: 47.2mm
C1 dimension: 37.7mm
D dimension: 72.5mm
D1 dimension: 43.5mm
E dimension: 81.8mm
Electrical insulation strength: 4kV/60s
Flammability rating: UL94V-0
на замовлення 3 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
1+2325.76 грн
2+2041.64 грн
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TSZS 25/007M INDEL

Category: Transformers with Fastening, Description: Transformer: encapsulated; 25VA; 230VAC; 15V; 1.67A; IP00; A: 63.6mm, Type of transformer: encapsulated, Power: 25VA, Primary voltage: 230V AC, Secondary voltage 1: 15V, Secondary winding current 1: 1.67A, Leads: terminal block, Mounting: for DIN rail mounting, IP rating: IP00, Thermal class: Ta40B, Conform to the norm: PN EN 61558, Insulation class: II, A dimension: 63.6mm, A1 dimension: 41.8mm, B dimension: 53.6mm, B1 dimension: 35.8mm, C dimension: 47.2mm, C1 dimension: 37.7mm, D dimension: 72.5mm, D1 dimension: 43.5mm, E dimension: 81.8mm, Electrical insulation strength: 4kV/60s, Flammability rating: UL94V-0.
