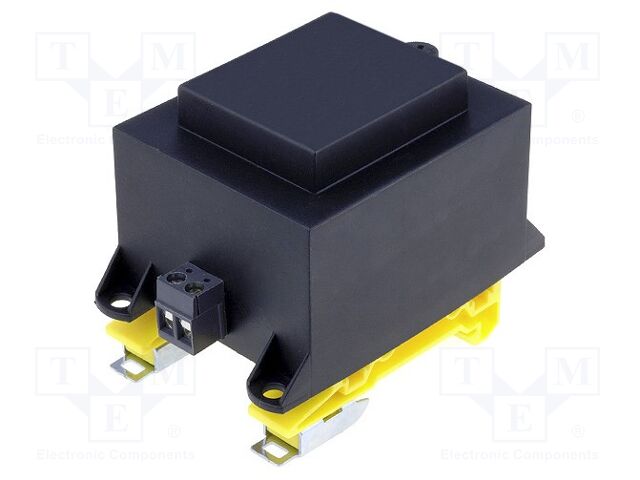

TSZS 25/015M INDEL

Category: Transformers with Fastening, Description: Transformer: encapsulated; 25VA; 230VAC; 230V; 110mA; IP00; UL94V-0, Type of transformer: encapsulated, Power: 25VA, Primary voltage: 230V AC, Secondary voltage 1: 230V, Secondary winding current 1: 110mA, Leads: terminal block, Mounting: for DIN rail mounting, Conform to the norm: PN EN 61558, IP rating: IP00, Thermal class: Ta40B, A1 dimension: 41.8mm, B1 dimension: 35.8mm, C1 dimension: 37.7mm, D1 dimension: 43.5mm, B dimension: 53.6mm, C dimension: 47.2mm, D dimension: 72.5mm, Flammability rating: UL94V-0, Electrical insulation strength: 4kV/60s, Insulation class: II, A dimension: 63.6mm, E dimension: 81.8mm.
