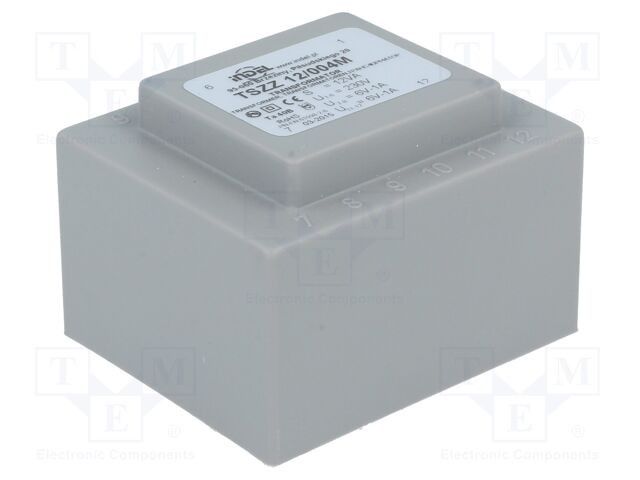

TSZZ12/004M INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 12VA; 230VAC; 6V; 6V; 1A; 1A; PCB; IP00, Conform to the norm: PN EN 61558, Mounting: PCB, Insulation class: II, IP rating: IP00, Thermal class: Ta40B, C dimension: 34.6mm, B dimension: 44mm, A dimension: 52mm, P dimension: 5mm, A1 dimension: 35.6mm, M dimension: 27.5mm, C1 dimension: 27.8mm, B1 dimension: 34.6mm, Secondary winding current 1: 1A, Secondary winding current 2: 1A, Secondary voltage 2: 6V, Secondary voltage 1: 6V, Power: 12VA, Primary voltage: 230V AC, Electrical insulation strength: 4kV/60s, Primary winding terminals: 1-6, Secondary winding terminals: 7-8, 11-12, Type of transformer: encapsulated.
