Продукція > INDEL > TSZZ2.4/009MP
TSZZ2.4/009MP

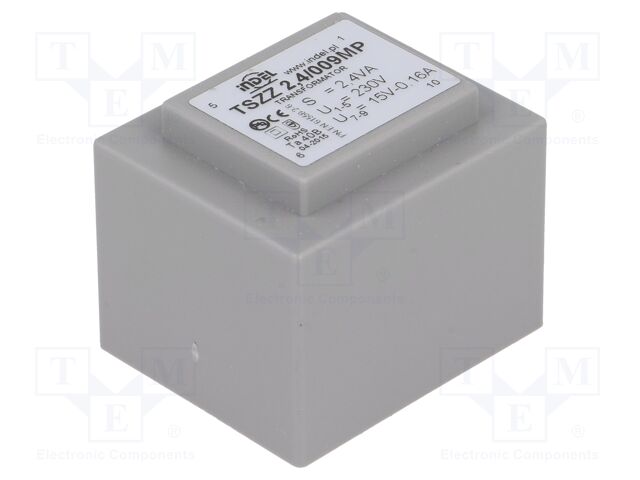

TSZZ2.4/009MP INDEL

pVersion=0046&contRep=ZT&docId=005056AB752F1EE384ACB32A8CC7ACAD&compId=30_8-12.pdf?ci_sign=d6ac677273ad59af955857d79f69b99b25d55d62 Виробник: INDEL
Category: PCB transformers
Description: Transformer: encapsulated; 2.4VA; 230VAC; 15V; 160mA; PCB; IP00
Conform to the norm: PN EN 61558
Secondary winding current 1: 160mA
Thermal class: Ta40B
A1 dimension: 23.6mm
B1 dimension: 20.2mm
C1 dimension: 23.2mm
P dimension: 5.05mm
M dimension: 20mm
B dimension: 27.1mm
C dimension: 26.8mm
Electrical insulation strength: 4kV/60s
Mounting: PCB
IP rating: IP00
Power: 2.4VA
Insulation class: II
A dimension: 32.1mm
Type of transformer: encapsulated
Primary voltage: 230V AC
Primary winding terminals: 1-5
Secondary voltage 1: 15V
Secondary winding terminals: 7-9
на замовлення 9 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
2+268.34 грн
5+220.09 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис TSZZ2.4/009MP INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 2.4VA; 230VAC; 15V; 160mA; PCB; IP00, Conform to the norm: PN EN 61558, Secondary winding current 1: 160mA, Thermal class: Ta40B, A1 dimension: 23.6mm, B1 dimension: 20.2mm, C1 dimension: 23.2mm, P dimension: 5.05mm, M dimension: 20mm, B dimension: 27.1mm, C dimension: 26.8mm, Electrical insulation strength: 4kV/60s, Mounting: PCB, IP rating: IP00, Power: 2.4VA, Insulation class: II, A dimension: 32.1mm, Type of transformer: encapsulated, Primary voltage: 230V AC, Primary winding terminals: 1-5, Secondary voltage 1: 15V, Secondary winding terminals: 7-9.
