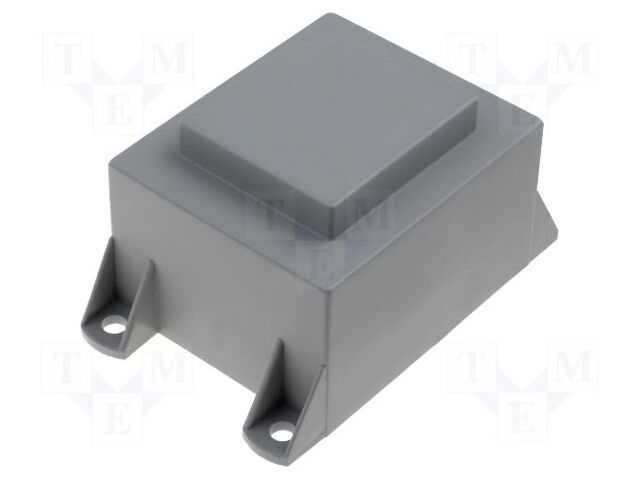

TSZZ45/002M/5 INDEL

Category: PCB transformers, Description: Transformer: encapsulated; 45VA; 230VAC; 6V; 6V; 3.75A; 3.75A; PCB, IP rating: IP00, Insulation class: II, Thermal class: Ta40B, P dimension: 5mm, D dimension: 72.5mm, C dimension: 56.5mm, A dimension: 63.6mm, M dimension: 32.5mm, B dimension: 53.6mm, B1 dimension: 35.8mm, A1 dimension: 41.8mm, D1 dimension: 43.5mm, C1 dimension: 47.3mm, Secondary winding current 1: 3.75A, Secondary winding current 2: 3.75A, Secondary voltage 2: 6V, Secondary voltage 1: 6V, Power: 45VA, Primary voltage: 230V AC, Primary winding terminals: 1-7, Electrical insulation strength: 4kV/60s, Secondary winding terminals: 8-9, 13-14, Type of transformer: encapsulated, Conform to the norm: PN EN 61558, Mounting: PCB.
