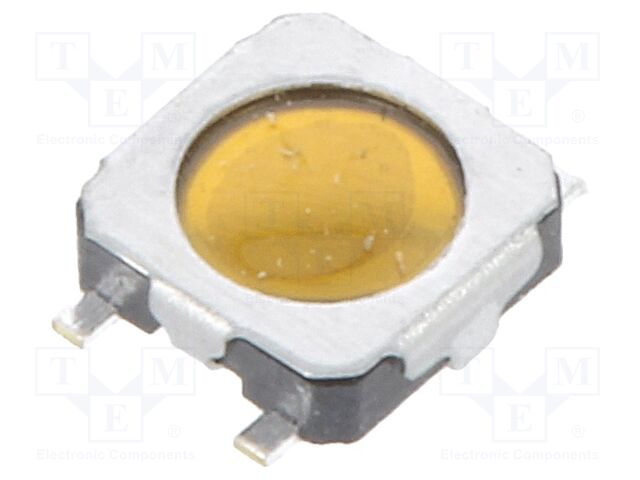

TVAF17NCB JIANFU
Виробник: JIANFU
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMT; none; 3.35x3.35mm
Type of switch: microswitch TACT
Contacts configuration: SPST
Number of positions: 2
Stable positions number: 1
DC contacts rating @R: 50mA / 12V DC
Mounting: SMT
Illumination: none
Body dimensions: 3.35x3.35mm
Button height: 0.85mm
Switching method: OFF-(ON)
Operating temperature: -30...85°C
Leads: for PCB
Max. contact resistance:: 100mΩ
Min. insulation resistance: 0.1GΩ
| Кількість | Ціна |
|---|---|
| 59+ | 7.79 грн |
| 100+ | 5.28 грн |
Відгуки про товар
Написати відгук
Технічний опис TVAF17NCB JIANFU
Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMT; none; 3.35x3.35mm, Type of switch: microswitch TACT, Contacts configuration: SPST, Number of positions: 2, Stable positions number: 1, DC contacts rating @R: 50mA / 12V DC, Mounting: SMT, Illumination: none, Body dimensions: 3.35x3.35mm, Button height: 0.85mm, Switching method: OFF-(ON), Operating temperature: -30...85°C, Leads: for PCB, Max. contact resistance:: 100mΩ, Min. insulation resistance: 0.1GΩ.
