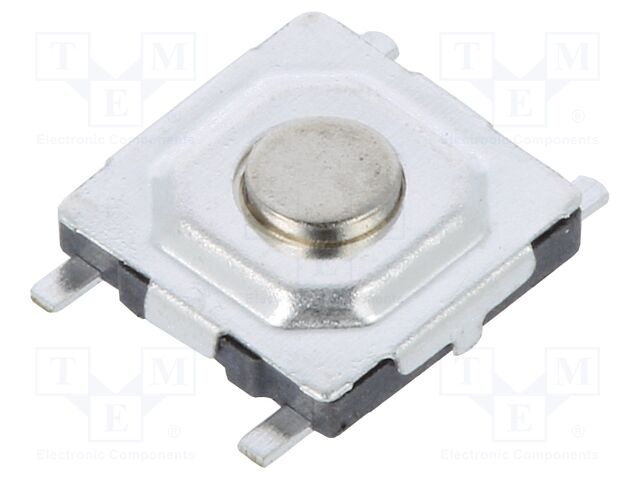

TVCF19015BPB JIANFU
Виробник: JIANFU
Category: Microswitches TACT
Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMT; none; 5.2x5.2mm
Leads: for PCB
Type of switch: microswitch TACT
Illumination: none
Switching method: OFF-(ON)
Mounting: SMT
Contacts configuration: SPST
Operating temperature: -30...85°C
Button height: 1.5mm
Body dimensions: 5.2x5.2mm
DC contacts rating @R: 50mA / 12V DC
Max. contact resistance:: 100mΩ
Stable positions number: 1
Number of positions: 2
Min. insulation resistance: 0.1GΩ
| Кількість | Ціна |
|---|---|
| 59+ | 7.70 грн |
| 100+ | 5.53 грн |
| 500+ | 4.57 грн |
| 1000+ | 4.10 грн |
Відгуки про товар
Написати відгук
Технічний опис TVCF19015BPB JIANFU
Category: Microswitches TACT, Description: Microswitch TACT; SPST; Pos: 2; 0.05A/12VDC; SMT; none; 5.2x5.2mm, Leads: for PCB, Type of switch: microswitch TACT, Illumination: none, Switching method: OFF-(ON), Mounting: SMT, Contacts configuration: SPST, Operating temperature: -30...85°C, Button height: 1.5mm, Body dimensions: 5.2x5.2mm, DC contacts rating @R: 50mA / 12V DC, Max. contact resistance:: 100mΩ, Stable positions number: 1, Number of positions: 2, Min. insulation resistance: 0.1GΩ.
