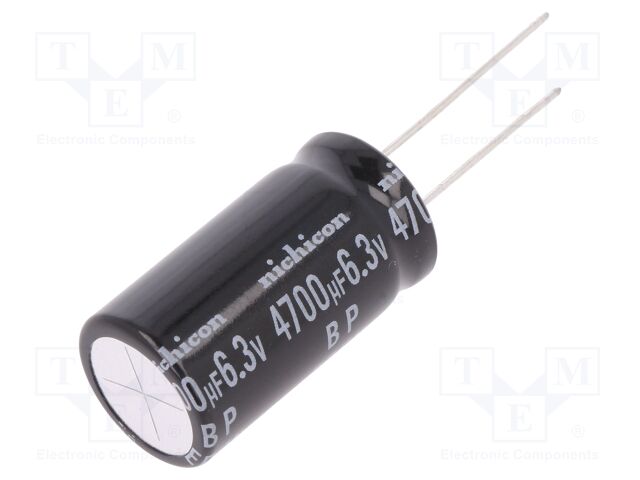

UEP0J472MHD NICHICON
Виробник: NICHICONCategory: THT audio electrolytic capacitors
Description: Capacitor: electrolytic; bipolar; THT; 4700uF; 6.3VDC; Ø12.5x20mm
Type of capacitor: electrolytic
Mounting: THT
Capacitance: 4.7mF
Operating voltage: 6.3V DC
Body dimensions: Ø12.5x20mm
Terminal pitch: 5mm
Tolerance: ±20%
Operating temperature: -55...105°C
Manufacturer series: UEP
Capacitor application: audio equipment
Nominal life: 1000h
Kind of capacitor: bipolar
на замовлення 19 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 10+ | 226.02 грн |
Відгуки про товар
Написати відгук
Технічний опис UEP0J472MHD NICHICON
Description: CAP ALUM 4700UF 20% 6.3V RADIAL, Tolerance: ±20%, Packaging: Bulk, Package / Case: Radial, Can, Size / Dimension: 0.630" Dia (16.00mm), Polarization: Bi-Polar, Mounting Type: Through Hole, Operating Temperature: -55°C ~ 105°C, Applications: General Purpose, Lead Spacing: 0.295" (7.50mm), Lifetime @ Temp.: 1000 Hrs @ 105°C, Height - Seated (Max): 1.319" (33.50mm), Capacitance: 4700 µF, Voltage - Rated: 6.3 V, Ripple Current @ Low Frequency: 1.43 A @ 120 Hz, Ripple Current @ High Frequency: 1.6445 A @ 10 kHz.
Інші пропозиції UEP0J472MHD
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
UEP0J472MHD | Виробник : Nichicon |
Description: CAP ALUM 4700UF 20% 6.3V RADIAL Tolerance: ±20% Packaging: Bulk Package / Case: Radial, Can Size / Dimension: 0.630" Dia (16.00mm) Polarization: Bi-Polar Mounting Type: Through Hole Operating Temperature: -55°C ~ 105°C Applications: General Purpose Lead Spacing: 0.295" (7.50mm) Lifetime @ Temp.: 1000 Hrs @ 105°C Height - Seated (Max): 1.319" (33.50mm) Capacitance: 4700 µF Voltage - Rated: 6.3 V Ripple Current @ Low Frequency: 1.43 A @ 120 Hz Ripple Current @ High Frequency: 1.6445 A @ 10 kHz |
товару немає в наявності |
|
 |
UEP0J472MHD | Виробник : Nichicon |
Aluminium Electrolytic Capacitors - Radial Leaded 6.3volts 4700uF 0.2L/S |
товару немає в наявності |
