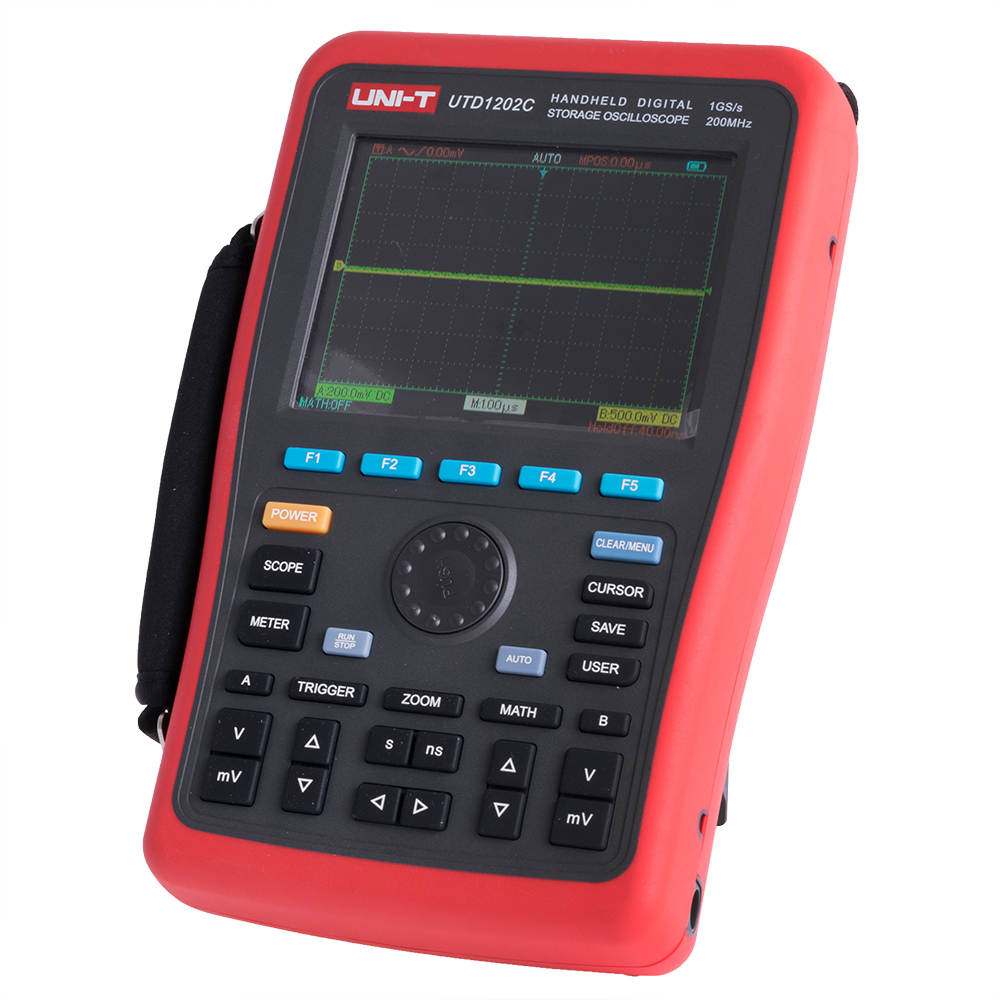

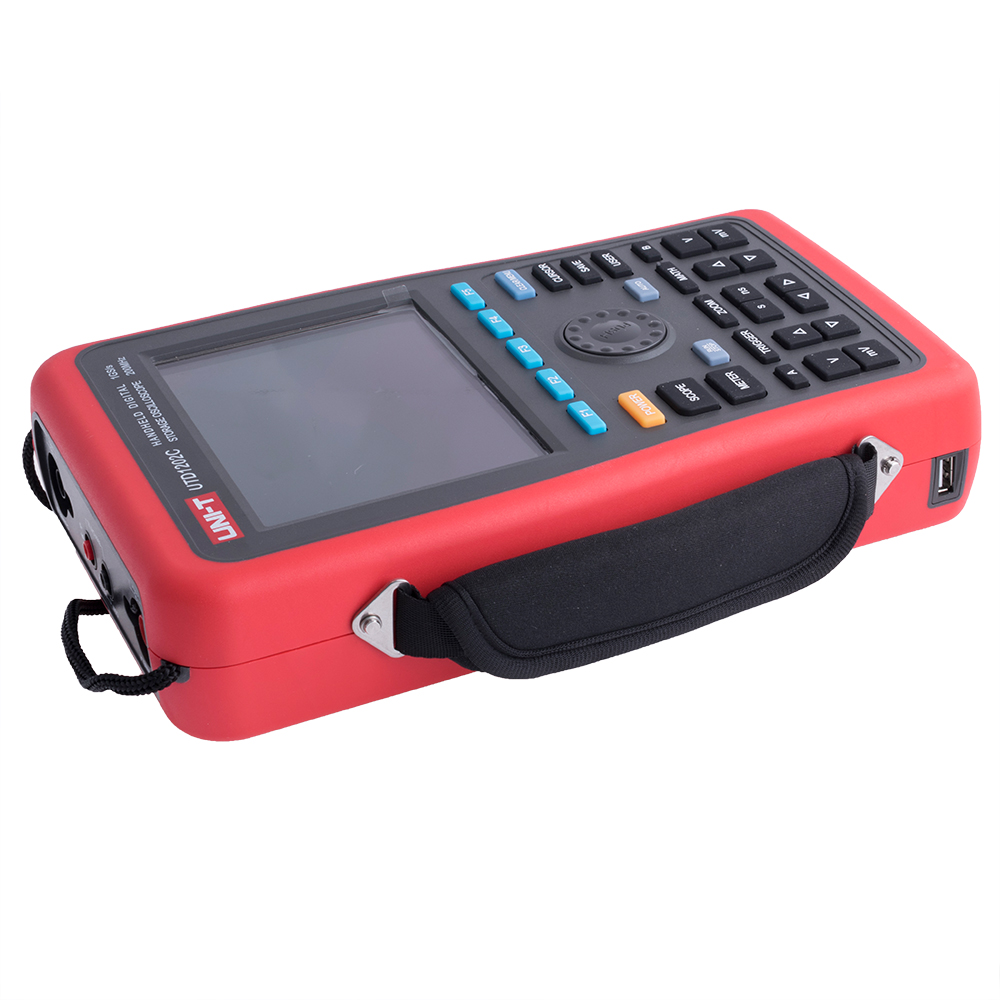

UTD1202C UNI-T

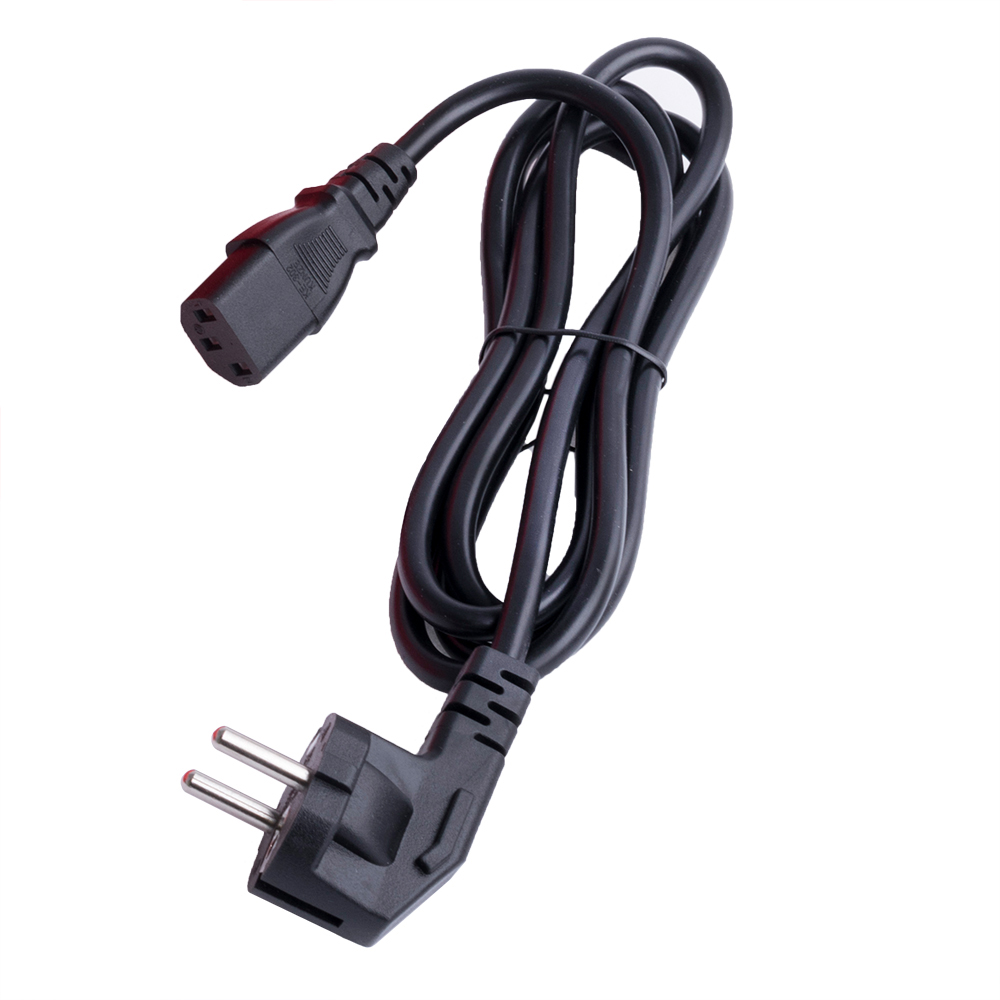

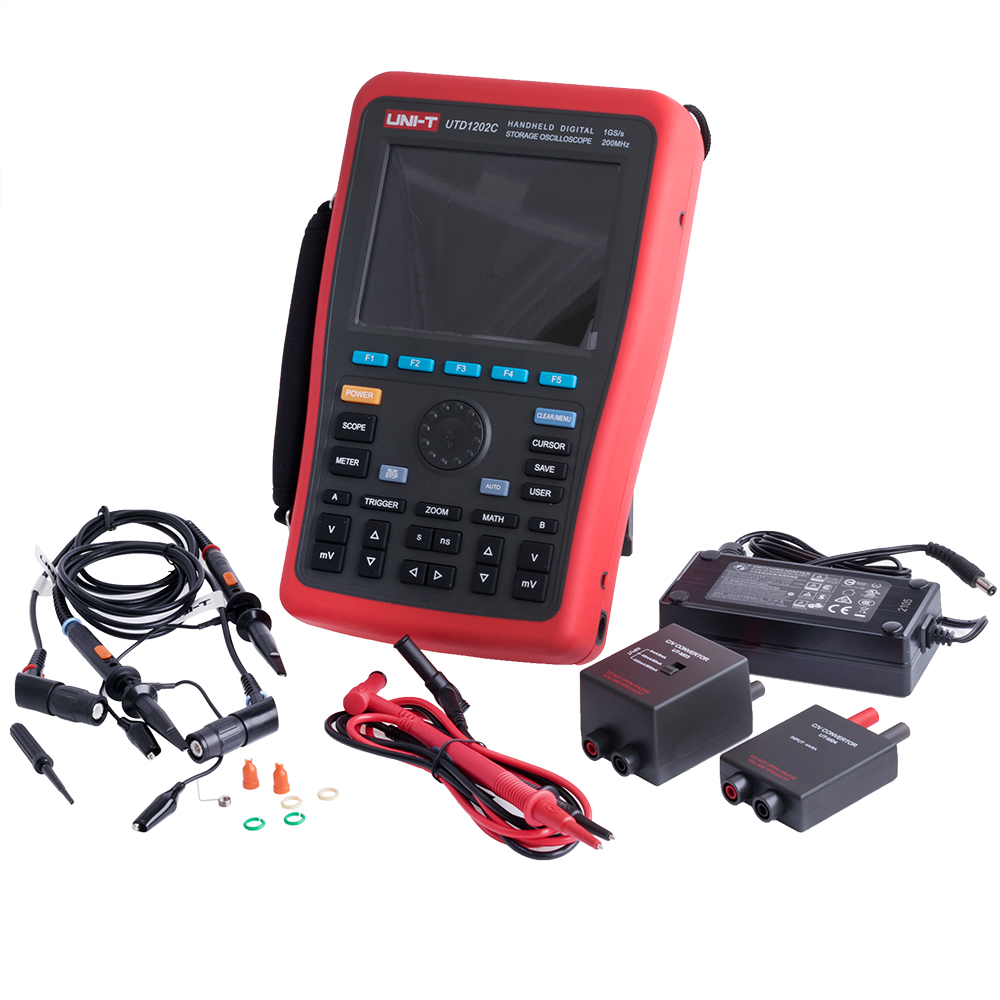

Category: Portable Oscilloscopes, Scopemeters, Description: Handheld oscilloscope; 200MHz; LCD TFT 5,7"; Ch: 2; 1Gsps; 7.5kpts, Type of oscilloscope: handheld oscilloscope, Number of channels: 2, Band: 200MHz, Sampling: 1Gsps, Memory record length: 7.5kpts, Kind of display used: LCD TFT 5,7", Trigger: alternate; falling-edge; impulse width; rising-edge, Time base: 5n...50s/div, Interface: USB Host, Rise time: ≤1.8ns, Input sensitivity: 5mV/div...50V/div, Measuring instrument features: automatic measurement of many parameters; multimeter function, Standard equipment: adapter DC; mains cable; shunt x2; test probe x2, Power supply: rechargeable battery Li-Ion 7,4V 4400mAh x1, Battery/ rechargeable battery: rechargeable battery Li-Ion 7,4V 4400mAh x1, Display resolution: 320x240, Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance, AC current measuring range: 6mA; 60mA; 600mA; 6A, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, DC current measuring range: 6mA; 60mA; 600mA; 6A, DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, AC voltage measuring range: 600mV; 6V; 60V; 600V; 700V, Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF, Display parameters: (5999), Capacitance measuring accuracy: ±(4%+ 5 digit); ±(5%+10 digit) @ 6nF...6mF, AC current measuring accuracy: ±(2% + 5 digit); ±(2.5% + 5 digit)@6A, DC voltage measuring accuracy: ±(1% + 5 digit), DC current measuring accuracy: ±(1.2% + 5 digit); ±(1.5% + 5 digit) @6A, AC voltage measuring accuracy: ±(1.5% + 5 digit), Resistance measuring accuracy: ±(1.2%+5 digit); ±(1.5%+5 digit)@(600Ω); ±(1.5%+5 digit)@(6MΩ); ±(1.5%+5 digit)@(60MΩ), Dimensions: 268x168x60mm.
