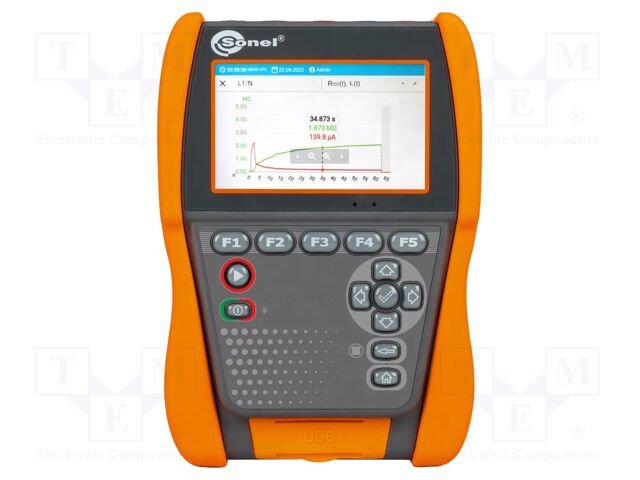

WMPLMIC2511 SONEL

Category: Insulation Resistance Meters, Description: Meter: insulation resistance; colour,LCD 5,6"; VAC: 0÷1.5kV; IP65, Battery/ rechargeable battery: rechargeable batteryLi-Ion 10,8V 3,5Ah x1, Capacitance measuring accuracy: ±(5%+ 5 digit), Power supply: rechargeable batteryLi-Ion 10,8V 3,5Ah x1, DC voltage measuring accuracy: ±(3% + 2 digit), Standard equipment: calibration certificate; crocodile clips; pointed electrode; power supply; test leads; USB adapter; USB / USB C cable, Touchpad: yes, Body dimensions: 234x169x70mm, Kind of display used: colour; LCD 5,6", Temperature measuring range: -40...99.9°C, DC voltage measuring range: 0...1.5kV, Weight with battery: 1.3kg, Measurement memory: 9999, AC voltage measuring range: 0...1.5kV, Insulation resistance measuring ranges: 0...999.9kΩ; 1Ω...2TΩ; 10Ω...99.99MΩ; 10Ω...99.99GΩ; 100Ω...999.9MΩ; 100Ω...999.9GΩ; 1...9.999MΩ; 1...9.999GΩ, Insulation resistance measuring accuracy: ±(3% + 20digit), Interface: USB, Test voltage: 10V; 25V; 50V; 100V; 250V; 500V; 1kV; 2.5kV, Conform to the norm: CAT III 600V; CAT IV 600V; EN 61010, AC voltage measuring accuracy: ±(3% + 2 digit), Type of meter: insulation resistance, IP rating: IP65, Measurement: AC voltage; capacitance; DC voltage; insulation resistance; resistance; temperature, Capacitance measuring range: 0...999nF; 1...9.99µF.
