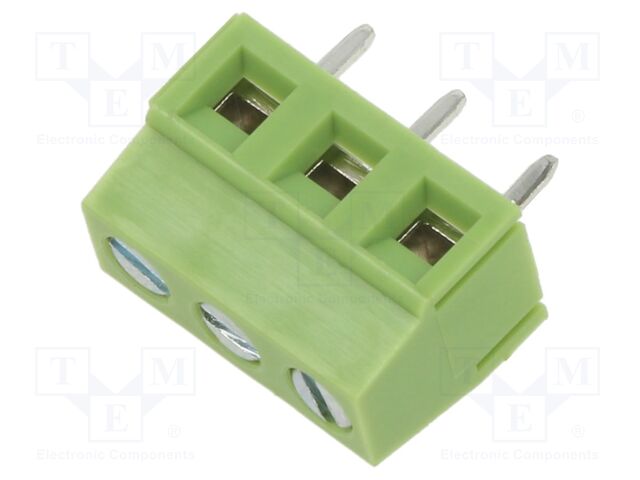

XY127V-3P 5.0MM GREEN

XY127V-3P 5.0MM GREEN XINYA

pVersion=0046&contRep=ZT&docId=005056AB281E1FD099F39EFD322680E1&compId=XY127V-5.0.pdf?ci_sign=1d4a2b8322fd52f4ee43eeb0891ebc2c3f1bd8a3 Виробник: XINYA
Category: PCB terminal blocks
Description: Connector: PCB terminal block; terminal; 12A; 300V; angled 90°
Type of connector: PCB terminal block
Connector: terminal
Spatial orientation: angled 90°
Mechanical mounting: on PCBs
Electrical mounting: screw terminal; THT
Contact material: brass
Contact plating: tinned
Colour: green
Body material: polyamide
Contacts pitch: 5mm
Number of ways: 3
Connectors features: assembling possibility
Number of terminals: 3
Height: 10mm
Length: 15mm
Current rating: 12A
Wire size: 26AWG...14AWG
Connector pinout layout: 1x3
Rated voltage: 300V
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Wire cross-section: 1.5mm2
Depth: 8.3mm
на замовлення 6059 шт:
термін постачання 21-30 дні (днів)
Кількість Ціна
25+17.13 грн
50+13.00 грн
107+8.66 грн
294+8.19 грн
Мінімальне замовлення: 25
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис XY127V-3P 5.0MM GREEN XINYA

Category: PCB terminal blocks, Description: Connector: PCB terminal block; terminal; 12A; 300V; angled 90°, Type of connector: PCB terminal block, Connector: terminal, Spatial orientation: angled 90°, Mechanical mounting: on PCBs, Electrical mounting: screw terminal; THT, Contact material: brass, Contact plating: tinned, Colour: green, Body material: polyamide, Contacts pitch: 5mm, Number of ways: 3, Connectors features: assembling possibility, Number of terminals: 3, Height: 10mm, Length: 15mm, Current rating: 12A, Wire size: 26AWG...14AWG, Connector pinout layout: 1x3, Rated voltage: 300V, Flammability rating: UL94V-0, Operating temperature: -40...105°C, Wire cross-section: 1.5mm2, Depth: 8.3mm.
