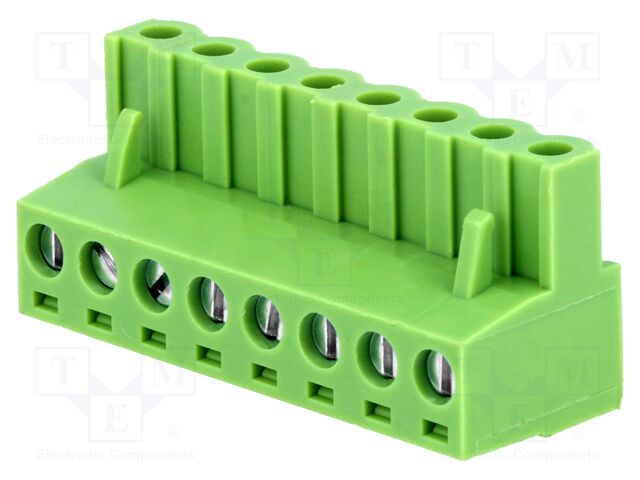

XY2500F-B(5.08)-8P XINYA
Виробник: XINYACategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 12A; 250V; 1x8
Type of connector: pluggable terminal block
Connector: plug
Current rating: 12A
Rated voltage: 0.25kV
Spatial orientation: straight
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Contact material: brass
Contact plating: nickel plated
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 28AWG...12AWG
Connector pinout layout: 1x8
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 8
Number of terminals: 8
Operating temperature: -40...120°C
Conform to the norm: UL
Kind of connector: female
Locking system: latch
на замовлення 12689 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 8+ | 59.26 грн |
| 10+ | 46.86 грн |
| 50+ | 39.85 грн |
| 200+ | 36.44 грн |
| 500+ | 33.60 грн |
Відгуки про товар
Написати відгук
Технічний опис XY2500F-B(5.08)-8P XINYA
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 12A; 250V; 1x8, Type of connector: pluggable terminal block, Connector: plug, Current rating: 12A, Rated voltage: 0.25kV, Spatial orientation: straight, Mechanical mounting: for cable, Electrical mounting: cage clamp; screw terminal, Contact material: brass, Contact plating: nickel plated, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 28AWG...12AWG, Connector pinout layout: 1x8, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 8, Number of terminals: 8, Operating temperature: -40...120°C, Conform to the norm: UL, Kind of connector: female, Locking system: latch, кількість в упаковці: 1 шт.
Інші пропозиції XY2500F-B(5.08)-8P за ціною від 40.32 грн до 71.12 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
XY2500F-B(5.08)-8P | Виробник : XINYA |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 12A; 250V; 1x8 Type of connector: pluggable terminal block Connector: plug Current rating: 12A Rated voltage: 0.25kV Spatial orientation: straight Mechanical mounting: for cable Electrical mounting: cage clamp; screw terminal Contact material: brass Contact plating: nickel plated Colour: green Flammability rating: UL94V-0 Body material: polyamide 66 Wire size: 28AWG...12AWG Connector pinout layout: 1x8 Wire cross-section: 2.5mm2 Contacts pitch: 5.08mm Number of ways: 8 Number of terminals: 8 Operating temperature: -40...120°C Conform to the norm: UL Kind of connector: female Locking system: latch кількість в упаковці: 1 шт |
на замовлення 12689 шт: термін постачання 7-14 дні (днів) |
|
