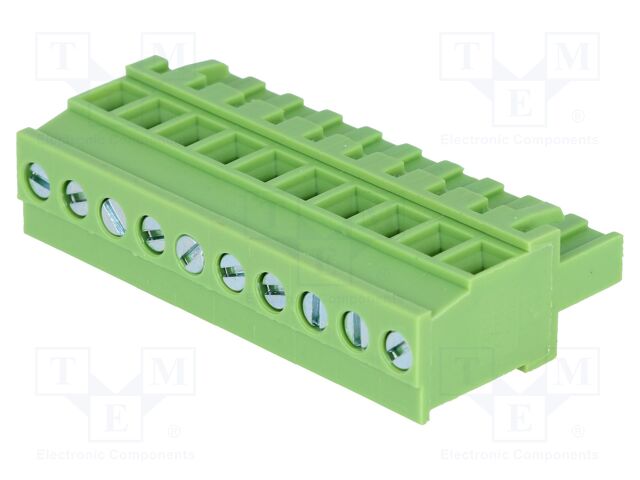

XY2500F-BV(5.08)-10P XINYA
Виробник: XINYACategory: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 15A
Rated voltage: 0.3kV
Spatial orientation: angled 90°
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Contact material: brass
Contact plating: nickel plated
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 28AWG...12AWG
Connector pinout layout: 1x10
Wire cross-section: 2.5mm2
Contacts pitch: 5.08mm
Number of ways: 10
Locking system: latch
Conform to the norm: UL
Number of terminals: 10
Operating temperature: -40...120°C
на замовлення 752 шт:
термін постачання 21-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 4+ | 124.81 грн |
| 10+ | 96.72 грн |
| 50+ | 84.21 грн |
| 100+ | 76.71 грн |
| 500+ | 69.20 грн |
Відгуки про товар
Написати відгук
Технічний опис XY2500F-BV(5.08)-10P XINYA
Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 15A, Rated voltage: 0.3kV, Spatial orientation: angled 90°, Mechanical mounting: for cable, Electrical mounting: cage clamp; screw terminal, Contact material: brass, Contact plating: nickel plated, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 28AWG...12AWG, Connector pinout layout: 1x10, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 10, Locking system: latch, Conform to the norm: UL, Number of terminals: 10, Operating temperature: -40...120°C, кількість в упаковці: 1 шт.
Інші пропозиції XY2500F-BV(5.08)-10P за ціною від 83.04 грн до 149.77 грн
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
XY2500F-BV(5.08)-10P | Виробник : XINYA |
Category: Pluggable terminal blocks Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x10 Type of connector: pluggable terminal block Connector: plug Kind of connector: female Current rating: 15A Rated voltage: 0.3kV Spatial orientation: angled 90° Mechanical mounting: for cable Electrical mounting: cage clamp; screw terminal Contact material: brass Contact plating: nickel plated Colour: green Flammability rating: UL94V-0 Body material: polyamide 66 Wire size: 28AWG...12AWG Connector pinout layout: 1x10 Wire cross-section: 2.5mm2 Contacts pitch: 5.08mm Number of ways: 10 Locking system: latch Conform to the norm: UL Number of terminals: 10 Operating temperature: -40...120°C кількість в упаковці: 1 шт |
на замовлення 752 шт: термін постачання 7-14 дні (днів) |
|
