Продукція > XINYA > XY2500F-BV(5.08)-8P

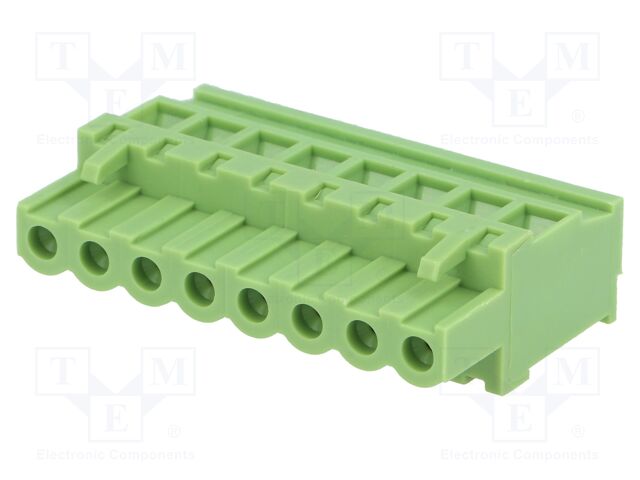

XY2500F-BV(5.08)-8P XINYA

Name: XY2500F-BV(5.08)-8P
Brand: XINYA
SKU: 460254651-1
Price: 297.1 UAH
Availability: BackOrder

pVersion=0046&contRep=ZT&docId=005056AB752F1ED6BBA67B2C69ADFE28&compId=XY2500F-BV.pdf?ci_sign=e792064cb8e0b70a1477e53b32608dbc93aa3e85

Виробник: XINYA
Category: Pluggable terminal blocks
Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x8
Type of connector: pluggable terminal block
Connector: plug
Kind of connector: female
Current rating: 15A
Rated voltage: 300V
Spatial orientation: angled 90°
Mechanical mounting: for cable
Electrical mounting: cage clamp; screw terminal
Contact material: brass
Contact plating: nickel plated
Colour: green
Flammability rating: UL94V-0
Body material: polyamide 66
Wire size: 28AWG...12AWG
Connector pinout layout: 1x8
Wire cross-section: 2.5mm²
Contacts pitch: 5.08mm
Number of ways: 8
Locking system: latch
Conform to the norm: UL
Number of terminals: 8
Operating temperature: -40...120°C
кількість в упаковці: 1 шт

товару немає в наявності

В кошику од. на суму грн.

Відгуки про товар

Написати відгук

Технічний опис XY2500F-BV(5.08)-8P XINYA

Category: Pluggable terminal blocks, Description: Connector: pluggable terminal block; plug; female; 15A; 300V; 1x8, Type of connector: pluggable terminal block, Connector: plug, Kind of connector: female, Current rating: 15A, Rated voltage: 300V, Spatial orientation: angled 90°, Mechanical mounting: for cable, Electrical mounting: cage clamp; screw terminal, Contact material: brass, Contact plating: nickel plated, Colour: green, Flammability rating: UL94V-0, Body material: polyamide 66, Wire size: 28AWG...12AWG, Connector pinout layout: 1x8, Wire cross-section: 2.5mm2, Contacts pitch: 5.08mm, Number of ways: 8, Locking system: latch, Conform to the norm: UL, Number of terminals: 8, Operating temperature: -40...120°C, кількість в упаковці: 1 шт.
