Виробник: RST
Category: Surge Arresters
Description: Surge arrester; In 8/20us: 20kA; 35VAC; for DIN rail mounting
Application: protection of data lines
Manufacturer series: RST S20
Surge arresters features: indirect shielding
Type of protection: surge arrester
Operating temperature: -40...80°C
Mounting: for DIN rail mounting
Body dimensions: 10x85x65mm
Max. operating voltage: 35V AC; 50V DC
Rated voltage: 50V DC
Protection level at rated imp. current: 1.1kV
Rated impulse current In (10/350)µs: 4kA
IP rating: IP20
Rated impulse current In (8/20)µs: 20kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; In 8/20us: 10kA; 12VAC; -40÷80°C; IP20; 58V
Rated impulse current In (10/350)µs: 2.5kA
Rated impulse current In (8/20)µs: 10kA
Mounting: for RST AL rail mounting; in housing
IP rating: IP20
Application: protection of transmission line conductors; SSWiN/KD circits protection
Manufacturer series: RST AL RS
Type of protection: surge arrester
Operating temperature: -40...80°C
Body dimensions: 20x65x14.5mm
Max. operating voltage: 12V AC; 17V DC
Rated voltage: 15V DC
Protection level at rated imp. current: 58V

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; In 8/20us: 20kA; 38VAC; for DIN rail mounting
Manufacturer series: RST SAP 6A xxV
Rated voltage: 48V DC
Mounting: for DIN rail mounting
IP rating: IP20
Application: protection of 6A power supply circuits; protection of teletechnical equipment
Type of protection: surge arrester
Operating temperature: -40...80°C
Body dimensions: 17.5x90x56.4mm
Max. operating voltage: 38V AC; 54V DC
Protection level at rated imp. current: 70V
Rated impulse current In (10/350)µs: 3.5kA
Rated impulse current In (8/20)µs: 20kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; In 8/20us: 2.5kA; 46VAC; rack 19"; -40÷80°C; IP20
Manufacturer series: RST Safe NET POE
Application: Gigabit Ethernet LAN surge protection with PoE
IP rating: IP20
Mounting: rack 19"
Type of protection: surge arrester
Operating temperature: -40...80°C
Body dimensions: 482.5x150x44.4mm
Max. operating voltage: 46V AC; 65V DC
Rated voltage: 60V DC
Protection level at rated imp. current: 0.7kV
Rated impulse current In (10/350)µs: 1kA
Surge arresters features: 7 protected lines; screw terminal grounding
Rated impulse current In (8/20)µs: 2.5kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; In 8/20us: 2.5kA; 46VAC; rack 19"; -40÷80°C; IP20
Manufacturer series: RST Safe NET POE
Application: Gigabit Ethernet LAN surge protection with PoE
IP rating: IP20
Mounting: rack 19"
Type of protection: surge arrester
Operating temperature: -40...80°C
Body dimensions: 482.5x150x44.4mm
Max. operating voltage: 46V AC; 65V DC
Rated voltage: 60V DC
Protection level at rated imp. current: 0.7kV
Rated impulse current In (10/350)µs: 1kA
Surge arresters features: 8 protected lines; screw terminal grounding
Rated impulse current In (8/20)µs: 2.5kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; In 8/20us: 2.5kA; 45VAC; rack 19"; -40÷80°C; IP20
Application: IP CCTV system protection; protection of LAN network
Type of protection: surge arrester
Operating temperature: -40...80°C
Body dimensions: 482.5x130x44.4mm
Max. operating voltage: 45V AC; 64V DC
Rated voltage: 60V DC
Protection level at rated imp. current: 0.9kV
Rated impulse current In (10/350)µs: 1kA
Surge arresters features: 5 protected lines; M6 screw terminal grounding
Rated impulse current In (8/20)µs: 2.5kA
Mounting: rack 19"
IP rating: IP20
Manufacturer series: RST Safe NET GDT

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; Type 2; 40kA; for DIN rail mounting; -40÷70°C
Operating temperature: -40...70°C
Manufacturer series: RST Solar
Mounting: for DIN rail mounting
Application: protection of photovoltaic installations
IP rating: IP20
Type of protection: surge arrester
Kind of surge arrester: Type 2
Body dimensions: 54x90x66mm
Rated voltage: 1kV DC
Protection level at rated imp. current: 4kV
Rated impulse current In (8/20)µs: 40kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; Type 2; In 8/20us: 40kA; Uoper.max: 275VAC; IP20
Manufacturer series: RST Power
Application: protection of building installations
Type of protection: surge arrester
Mounting: for DIN rail mounting
IP rating: IP20
Kind of network: TN-C
Kind of surge arrester: Type 2
Operating temperature: -40...70°C
Body dimensions: 18x90x59mm
Rated voltage: 230V AC
Max. operating voltage: 275V AC
Protection level at rated imp. current: 1.5kV
Rated impulse current In (10/350)µs: 4kA
Rated impulse current In (8/20)µs: 40kA

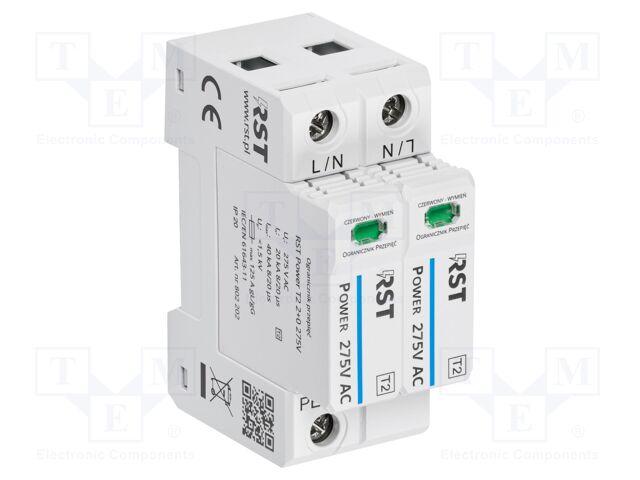

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; Type 2; In 8/20us: 40kA; Uoper.max: 275VAC; IP20
Manufacturer series: RST Power
Application: protection of building installations
Type of protection: surge arrester
Mounting: for DIN rail mounting
IP rating: IP20
Kind of network: TN
Kind of surge arrester: Type 2
Operating temperature: -40...70°C
Body dimensions: 36x90x59mm
Rated voltage: 230V AC
Max. operating voltage: 275V AC
Protection level at rated imp. current: 1.5kV
Rated impulse current In (10/350)µs: 4kA
Rated impulse current In (8/20)µs: 40kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; Type 2; In 8/20us: 40kA; Uoper.max: 275VAC; IP20
Manufacturer series: RST Power
Application: protection of building installations
Type of protection: surge arrester
Mounting: for DIN rail mounting
IP rating: IP20
Kind of network: TN-S
Kind of surge arrester: Type 2
Operating temperature: -40...70°C
Body dimensions: 72x90x59mm
Rated voltage: 230/400V AC
Max. operating voltage: 275V AC
Protection level at rated imp. current: 1.5kV
Rated impulse current In (10/350)µs: 4kA
Rated impulse current In (8/20)µs: 40kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; Type 2,varistor; In 8/20us: 40kA; -40÷70°C; IP20
Manufacturer series: RST Power
Application: protection of building installations
Type of protection: surge arrester
Mounting: for DIN rail mounting
IP rating: IP20
Kind of network: TN-S; TT
Kind of surge arrester: Type 2; varistor
Operating temperature: -40...70°C
Body dimensions: 36x90x59mm
Rated voltage: 230/400V AC
Max. operating voltage: 275V AC
Protection level at rated imp. current: 1.5kV
Rated impulse current In (10/350)µs: 12.5kA
Rated impulse current In (8/20)µs: 40kA

Виробник: RST
Category: Surge Arresters
Description: Surge arrester; Type 2,varistor; In 8/20us: 40kA; -40÷70°C; IP20
Manufacturer series: RST Power
Application: protection of building installations
Type of protection: surge arrester
Mounting: for DIN rail mounting
IP rating: IP20
Kind of network: TN-S; TT
Kind of surge arrester: Type 2; varistor
Operating temperature: -40...70°C
Body dimensions: 72x90x59mm
Rated voltage: 230/400V AC
Max. operating voltage: 275V AC
Protection level at rated imp. current: 1.5kV
Rated impulse current In (10/350)µs: 12.5kA
Rated impulse current In (8/20)µs: 40kA
