Продукція > SAMTEC INC. > Всі товари виробника SAMTEC INC. (211034) > Сторінка 202 з 3518
Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LTMM-105-02-G-D | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 2 Style: Board to Board Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 20.0µin (0.51µm) Contact Finish - Post: Gold Part Status: Active Contact Shape: Square Contact Length - Post: 0.118" (3.00mm) Insulation Height: 0.190" (4.83mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 2257 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
BBD-110-G-A | Samtec Inc. |
![]() Packaging: Tube Connector Type: Header Mounting Type: Through Hole Number of Positions: 20 Number of Rows: 2 Style: Board to Board Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 20.0µin (0.51µm) Contact Finish - Post: Nickel Part Status: Active Contact Shape: Circular Contact Length - Post: 0.125" (3.18mm) Insulation Height: 0.211" (5.35mm) Shrouding: Unshrouded Overall Contact Length: 0.460" (11.68mm) Insulation Material: Polyester, Glass Filled Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.125" (3.18mm) |
на замовлення 265 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |

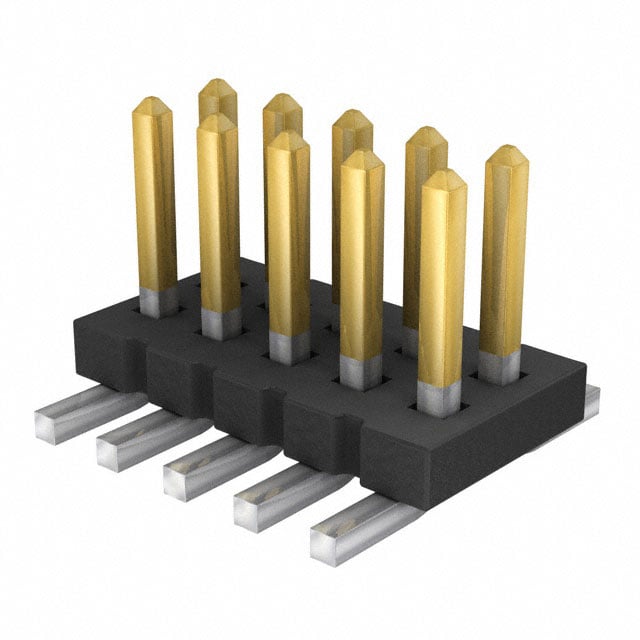

FTS-105-01-F-DV-TR | Samtec Inc. |
![]() Packaging: Tape & Reel (TR) Connector Type: Header, Cuttable Current Rating (Amps): 3.4A per Contact Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.034" (0.86mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 6000 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
TFC-120-02-F-D-LC | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
TSM-102-01-T-DV | Samtec Inc. |
![]() Packaging: Bulk Connector Type: Header, Cuttable Mounting Type: Surface Mount Number of Positions: 4 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 7249 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
SFC-120-T2-F-D-LC | Samtec Inc. |
![]() Packaging: Tube Features: Board Lock Connector Type: Receptacle Voltage Rating: 350VAC Current Rating (Amps): 3.1A per Contact Mounting Type: Surface Mount Number of Positions: 40 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Female Socket Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Insulation Height: 0.180" (4.57mm) Row Spacing - Mating: 0.050" (1.27mm) Number of Rows: 2 |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
MTSW-102-07-T-S-130-RA | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
ESQ-125-24-T-D | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
|
MEC8-150-02-L-DV-A | Samtec Inc. |
![]() Packaging: Tray Features: Board Guide Gender: Female Contact Finish: Gold Color: Black Mounting Type: Surface Mount Number of Positions: 100 Pitch: 0.031" (0.80mm) Operating Temperature: -55°C ~ 125°C Read Out: Dual Contact Type: Hairpin Bellows Card Type: Non Specified - Dual Edge Card Thickness: 0.062" (1.57mm) Termination: Solder Contact Finish Thickness: 10.0µin (0.25µm) Contact Material: Phosphor Bronze Part Status: Active Number of Rows: 2 |
на замовлення 120 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
MEC8-110-02-L-DV-A | Samtec Inc. |
![]() Packaging: Tray Features: Board Guide Gender: Female Contact Finish: Gold Color: Black Mounting Type: Surface Mount Number of Positions: 20 Pitch: 0.031" (0.80mm) Operating Temperature: -55°C ~ 125°C Read Out: Dual Contact Type: Hairpin Bellows Card Type: Non Specified - Dual Edge Card Thickness: 0.062" (1.57mm) Termination: Solder Contact Finish Thickness: 10.0µin (0.25µm) Contact Material: Phosphor Bronze Part Status: Active Number of Rows: 2 |
на замовлення 1040 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
FFSD-07-D-18.00-01-N | Samtec Inc. |
![]() Packaging: Bulk Features: Polarizing Key Connector Type: Socket to Socket Contact Finish: Gold Color: Gray, Ribbon Length: 1.50' (457.20mm) Shielding: Unshielded Number of Positions: 14 Number of Rows: 2 Contact Finish Thickness: 10.0µin (0.25µm) Cable Termination: IDC Pitch - Cable: 0.025" (0.64mm) Pitch - Connector: 0.050" (1.27mm) |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
FFSD-05-S-20.00-01-N | Samtec Inc. |
![]() Features: Polarizing Key Packaging: Bulk Connector Type: Socket to Cable Contact Finish: Gold Color: Gray, Ribbon Length: 1.67' (508.00mm) Shielding: Unshielded Number of Positions: 10 Number of Rows: 2 Contact Finish Thickness: 10.0µin (0.25µm) Cable Termination: IDC Pitch - Cable: 0.025" (0.64mm) Pitch - Connector: 0.050" (1.27mm) Part Status: Active |
на замовлення 118 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
IDSD-05-D-02.00-G | Samtec Inc. |
![]() Packaging: Bulk Connector Type: Socket to Socket Contact Finish: Gold Color: Gray, Ribbon Length: 0.167' (50.80mm, 2.00") Shielding: Unshielded Number of Positions: 10 Number of Rows: 2 Cable Termination: IDC Pitch - Cable: 0.050" (1.27mm) Pitch - Connector: 0.100" (2.54mm) Part Status: Active |
на замовлення 72 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
IDMD-10-T-05.00-G-R | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
IDMD-05-T-03.00-G-R | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
FFSD-10-D-30.00-01-N-D15-O | Samtec Inc. |
![]() Packaging: Bulk Features: Polarizing Key Connector Type: Socket to Socket (3) Contact Finish: Gold Color: Gray, Ribbon Length: 2.50' (762.00mm) Shielding: Unshielded Number of Positions: 20 Number of Rows: 2 Contact Finish Thickness: 10.0µin (0.25µm) Cable Termination: IDC Pitch - Cable: 0.025" (0.64mm) Pitch - Connector: 0.050" (1.27mm) Part Status: Active |
на замовлення 68 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
SFSD-25-28-H-10.00-DR-NDX | Samtec Inc. |
![]() Packaging: Bulk Features: Latch Lock, Polarizing Key Connector Type: Socket to Socket Contact Finish: Gold Color: Black, Individual Length: 0.833' (254.00mm, 10.00") Shielding: Unshielded Number of Positions: 50 Number of Rows: 2 Contact Finish Thickness: 30.0µin (0.76µm) Cable Termination: Crimp Pitch - Connector: 0.050" (1.27mm) Part Status: Active |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
|
SMA-J-P-H-ST-EM1 | Samtec Inc. |
![]() Packaging: Tray Connector Type: Jack, Female Socket Contact Termination: Solder Impedance: 50 Ohms Mounting Type: Board Edge, End Launch Fastening Type: Threaded Connector Style: SMA Housing Color: Gold Shield Termination: Solder Center Contact Material: Beryllium Copper Part Status: Active Frequency - Max: 20 GHz Number of Ports: 1 |
на замовлення 3652 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
TMS-125-01-G-S | Samtec Inc. |
![]() Packaging: Tube Connector Type: Header Current Rating (Amps): 5A per Contact Mounting Type: Through Hole Number of Positions: 25 Number of Rows: 1 Style: Board to Board Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Gold Part Status: Active Contact Shape: Square Contact Length - Post: 0.120" (3.05mm) Insulation Height: 0.100" (2.54mm) Shrouding: Unshrouded Overall Contact Length: 0.450" (11.43mm) Insulation Material: Liquid Crystal Polymer (LCP) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 309 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
TSW-107-26-F-Q | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
TFSD-50-28-G-24.00-T-NDS | Samtec Inc. |
![]() Packaging: Bulk Features: Polarizing Key Connector Type: Socket to Plug Contact Finish: Gold Color: Black, Individual Length: 2.00' (609.60mm) Shielding: Unshielded Number of Positions: 100 Number of Rows: 2 Contact Finish Thickness: 10.0µin (0.25µm) Cable Termination: Crimp Pitch - Connector: 0.050" (1.27mm) Part Status: Active |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
BSH-030-01-F-D-A | Samtec Inc. |
![]() Packaging: Tray Features: Board Guide Connector Type: Socket, Center Strip Contacts Contact Finish: Gold Mounting Type: Surface Mount Number of Positions: 60 Pitch: 0.020" (0.50mm) Height Above Board: 0.128" (3.25mm) Contact Finish Thickness: 3.00µin (0.076µm) Mated Stacking Heights: 5mm Part Status: Active Number of Rows: 2 |
на замовлення 95 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
ESQT-112-02-G-D-375 | Samtec Inc. |
![]() Packaging: Bulk Connector Type: Elevated Socket Current Rating (Amps): 4.5A per Contact Mounting Type: Through Hole Number of Positions: 24 Style: Board to Board or Cable Operating Temperature: -55°C ~ 125°C Contact Type: Forked Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 20.0µin (0.51µm) Contact Finish - Post: Gold Contact Length - Post: 0.475" (12.07mm) Insulation Height: 0.375" (9.53mm) Row Spacing - Mating: 0.079" (2.00mm) Number of Rows: 2 |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |

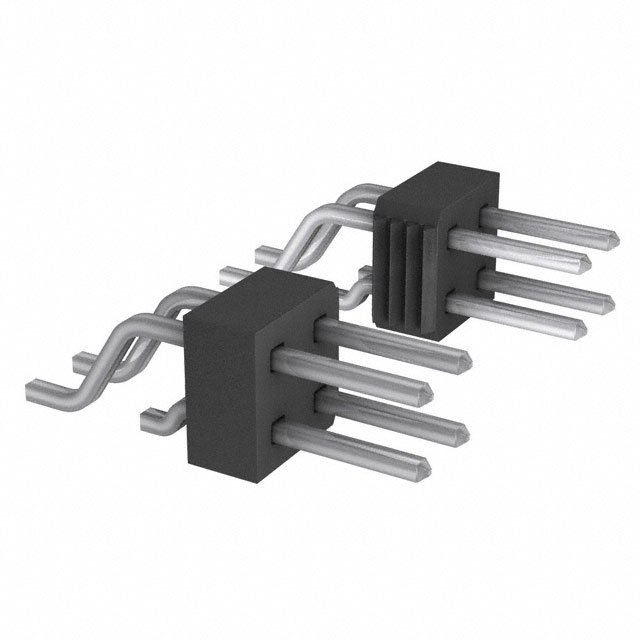

TSM-105-01-T-DH | Samtec Inc. |
![]() Packaging: Tube Connector Type: Header Mounting Type: Surface Mount, Right Angle Number of Positions: 10 Number of Rows: 2 Style: Board to Board or Cable Operating Temperature: -55°C ~ 105°C Contact Type: Male Pin Fastening Type: Push-Pull Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.100" (2.54mm) Contact Finish - Mating: Tin Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.240" (6.10mm) Shrouding: Unshrouded Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.100" (2.54mm) Contact Length - Mating: 0.230" (5.84mm) |
на замовлення 125 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
|
TSW-104-23-S-T | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
DWM-50-54-G-S-335 | Samtec Inc. |
![]() |
на замовлення 53 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
EC2-10 | Samtec Inc. |
![]() Packaging: Tube For Use With/Related Products: EHT Series Number of Positions: 20 Accessory Type: Cap (Cover) Part Status: Active |
на замовлення 199 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EC2-17 | Samtec Inc. |
![]() |
на замовлення 355 шт: термін постачання 21-31 дні (днів) |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EC2-20 | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
|
EHF-105-01-F-D-SM-LC | Samtec Inc. |
![]() Packaging: Tube Features: Board Lock, Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 579 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-105-01-L-D-SM-P | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot, Pick and Place Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EHF-105-01-L-D-SM-P-TR | Samtec Inc. |
![]() Packaging: Tape & Reel (TR) Features: Keying Slot, Pick and Place Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 150 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
EHF-108-01-LM-D | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
EHF-110-01-L-D-SM-LC | Samtec Inc. |
![]() Packaging: Tube Features: Board Lock, Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 20 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 2709 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-113-01-L-D | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Through Hole Number of Positions: 26 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.107" (2.71mm) Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.350" (8.89mm) Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 5230 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-113-01-L-D-RA | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Through Hole, Right Angle Number of Positions: 26 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.090" (2.29mm) Insulation Height: 0.263" (6.67mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 446 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-113-01-L-D-SM-LC | Samtec Inc. |
![]() Packaging: Tube Features: Board Lock, Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 26 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 1890 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-113-01-L-D-SM-P-TR | Samtec Inc. |
![]() Packaging: Tape & Reel (TR) Features: Keying Slot, Pick and Place Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 26 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 150 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-117-01-F-D-SM-LC | Samtec Inc. |
![]() Packaging: Tube Features: Board Lock, Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 34 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 4023 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-117-01-L-D-SM | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 34 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 1236 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-117-01-L-D-SM-LC | Samtec Inc. |
![]() Packaging: Tube Features: Board Lock, Keying Slot Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Surface Mount Number of Positions: 34 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 10.0µin (0.25µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 796 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-120-01-F-D | Samtec Inc. |
![]() Features: Keying Slot Packaging: Tube Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Through Hole Number of Positions: 40 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.107" (2.71mm) Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.350" (8.89mm) Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 3418 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-125-01-F-D | Samtec Inc. |
![]() Features: Keying Slot Packaging: Tube Connector Type: Header Current Rating (Amps): 1.75A Mounting Type: Through Hole Number of Positions: 50 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.050" (1.27mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 3.00µin (0.076µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.107" (2.71mm) Insulation Height: 0.325" (8.25mm) Shrouding: Shrouded - 4 Wall Overall Contact Length: 0.350" (8.89mm) Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled Row Spacing - Mating: 0.050" (1.27mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 355 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHF-125-01-LM-D-RA | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EHT-105-01-L-D | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Through Hole Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 15.0µin (0.38µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.114" (2.90mm) Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EHT-105-01-S-D-SM-10-K-TR | Samtec Inc. |
![]() Packaging: Tape & Reel (TR) Features: Keying Slot, Pick and Place Connector Type: Header Current Rating (Amps): 3A Mounting Type: Surface Mount Number of Positions: 10 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: 9 Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
EHT-105-01-S-D-SM-LC-K | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
EHT-107-01-S-D | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Through Hole Number of Positions: 14 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Shape: Square Contact Length - Post: 0.114" (2.90mm) Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EHT-108-01-S-D | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Through Hole Number of Positions: 16 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.114" (2.90mm) Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 548 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHT-108-01-S-D-RA | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Through Hole, Right Angle Number of Positions: 16 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.120" (3.05mm) Insulation Height: 0.300" (7.62mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 2033 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHT-108-01-S-D-SM | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Surface Mount Number of Positions: 16 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 842 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
EHT-108-01-S-D-SM-04-P-TR | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
EHT-108-01-S-D-SM-P | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
EHT-108-01-S-D-SM-P-TR | Samtec Inc. |
![]() Packaging: Tape & Reel (TR) Features: Keying Slot, Pick and Place Connector Type: Header Current Rating (Amps): 3A Mounting Type: Surface Mount Number of Positions: 16 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 900 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHT-110-01-S-D-SM-LC-K | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EHT-112-01-S-D-SM | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Surface Mount Number of Positions: 24 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 380 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
EHT-112-01-S-D-SM-LC-K | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | |||||||||||||||||||
![]() |
EHT-113-01-S-D-RA | Samtec Inc. |
![]() |
товару немає в наявності |
В кошику од. на суму грн. | ||||||||||||||||||
![]() |
EHT-117-01-S-D | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Through Hole Number of Positions: 34 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Contact Length - Post: 0.114" (2.90mm) Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 1194 шт: термін постачання 21-31 дні (днів) |
|
||||||||||||||||||
![]() |
EHT-117-01-S-D-SM | Samtec Inc. |
![]() Packaging: Tube Features: Keying Slot Connector Type: Header Current Rating (Amps): 3A Mounting Type: Surface Mount Number of Positions: 34 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -55°C ~ 125°C Contact Type: Male Pin Fastening Type: Latch Lock/Eject Hooks Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Phosphor Bronze Insulation Color: Black Pitch - Mating: 0.079" (2.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Part Status: Active Contact Shape: Square Insulation Height: 0.370" (9.40mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP) Row Spacing - Mating: 0.079" (2.00mm) Contact Length - Mating: 0.120" (3.05mm) |
на замовлення 22 шт: термін постачання 21-31 дні (днів) |
|
LTMM-105-02-G-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 10POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.190" (4.83mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 10POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.190" (4.83mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 2257 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 501.58 грн |
10+ | 436.91 грн |
100+ | 382.55 грн |
500+ | 302.32 грн |
1000+ | 264.53 грн |
BBD-110-G-A |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Tube
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Nickel
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.125" (3.18mm)
Insulation Height: 0.211" (5.35mm)
Shrouding: Unshrouded
Overall Contact Length: 0.460" (11.68mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.125" (3.18mm)
Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Tube
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Nickel
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.125" (3.18mm)
Insulation Height: 0.211" (5.35mm)
Shrouding: Unshrouded
Overall Contact Length: 0.460" (11.68mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.125" (3.18mm)
на замовлення 265 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 561.31 грн |
10+ | 459.05 грн |
100+ | 390.18 грн |
FTS-105-01-F-DV-TR |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.034" (0.86mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tape & Reel (TR)
Connector Type: Header, Cuttable
Current Rating (Amps): 3.4A per Contact
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.034" (0.86mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 6000 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1000+ | 57.36 грн |
3000+ | 39.97 грн |
5000+ | 33.43 грн |
TFC-120-02-F-D-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER .05" 40POS GOLD SMD
Description: CONN HEADER .05" 40POS GOLD SMD
товару немає в наявності
В кошику
од. на суму грн.
TSM-102-01-T-DV |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 4POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 4
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
Description: CONN HEADER SMD 4POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Mounting Type: Surface Mount
Number of Positions: 4
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 7249 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
11+ | 31.09 грн |
50+ | 23.01 грн |
100+ | 18.95 грн |
500+ | 15.25 грн |
1000+ | 10.80 грн |
2000+ | 9.53 грн |
5000+ | 6.87 грн |
SFC-120-T2-F-D-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN RCPT 40POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Voltage Rating: 350VAC
Current Rating (Amps): 3.1A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Insulation Height: 0.180" (4.57mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
Description: CONN RCPT 40POS 0.05 GOLD SMD
Packaging: Tube
Features: Board Lock
Connector Type: Receptacle
Voltage Rating: 350VAC
Current Rating (Amps): 3.1A per Contact
Mounting Type: Surface Mount
Number of Positions: 40
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Insulation Height: 0.180" (4.57mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику
од. на суму грн.
MTSW-102-07-T-S-130-RA |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER 2 POS 2.54MM TH
Description: CONN HEADER 2 POS 2.54MM TH
товару немає в наявності
В кошику
од. на суму грн.
ESQ-125-24-T-D |
![]() |
Виробник: Samtec Inc.
Description: CONN RECEPT 50POS .1" TIN
Description: CONN RECEPT 50POS .1" TIN
товару немає в наявності
В кошику
од. на суму грн.
MEC8-150-02-L-DV-A |
![]() |
Виробник: Samtec Inc.
Description: CONN EDGE DUAL FML 100POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Hairpin Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
Description: CONN EDGE DUAL FML 100POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 100
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Hairpin Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
на замовлення 120 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 625.14 грн |
10+ | 555.97 грн |
25+ | 525.46 грн |
50+ | 475.41 грн |
100+ | 380.59 грн |
MEC8-110-02-L-DV-A |
![]() |
Виробник: Samtec Inc.
Description: CONN EDGE DUAL FMALE 20POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Hairpin Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
Description: CONN EDGE DUAL FMALE 20POS 0.031
Packaging: Tray
Features: Board Guide
Gender: Female
Contact Finish: Gold
Color: Black
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.031" (0.80mm)
Operating Temperature: -55°C ~ 125°C
Read Out: Dual
Contact Type: Hairpin Bellows
Card Type: Non Specified - Dual Edge
Card Thickness: 0.062" (1.57mm)
Termination: Solder
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Phosphor Bronze
Part Status: Active
Number of Rows: 2
на замовлення 1040 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 303.57 грн |
104+ | 289.28 грн |
416+ | 232.51 грн |
936+ | 200.44 грн |
FFSD-07-D-18.00-01-N |
![]() |
Виробник: Samtec Inc.
Description: CABLE ASSEM .05" 14POS F-F 18"
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 1.50' (457.20mm)
Shielding: Unshielded
Number of Positions: 14
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Description: CABLE ASSEM .05" 14POS F-F 18"
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 1.50' (457.20mm)
Shielding: Unshielded
Number of Positions: 14
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
товару немає в наявності
В кошику
од. на суму грн.
FFSD-05-S-20.00-01-N |
![]() |
Виробник: Samtec Inc.
Description: CABLE FLAT 0.508M 30AWG 10 POS
Features: Polarizing Key
Packaging: Bulk
Connector Type: Socket to Cable
Contact Finish: Gold
Color: Gray, Ribbon
Length: 1.67' (508.00mm)
Shielding: Unshielded
Number of Positions: 10
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
Description: CABLE FLAT 0.508M 30AWG 10 POS
Features: Polarizing Key
Packaging: Bulk
Connector Type: Socket to Cable
Contact Finish: Gold
Color: Gray, Ribbon
Length: 1.67' (508.00mm)
Shielding: Unshielded
Number of Positions: 10
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
на замовлення 118 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 1040.80 грн |
10+ | 888.56 грн |
25+ | 854.34 грн |
50+ | 769.71 грн |
100+ | 726.94 грн |
IDSD-05-D-02.00-G |
![]() |
Виробник: Samtec Inc.
Description: CBL ASSY FLAT 10 POS IDC .05M
Packaging: Bulk
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.167' (50.80mm, 2.00")
Shielding: Unshielded
Number of Positions: 10
Number of Rows: 2
Cable Termination: IDC
Pitch - Cable: 0.050" (1.27mm)
Pitch - Connector: 0.100" (2.54mm)
Part Status: Active
Description: CBL ASSY FLAT 10 POS IDC .05M
Packaging: Bulk
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.167' (50.80mm, 2.00")
Shielding: Unshielded
Number of Positions: 10
Number of Rows: 2
Cable Termination: IDC
Pitch - Cable: 0.050" (1.27mm)
Pitch - Connector: 0.100" (2.54mm)
Part Status: Active
на замовлення 72 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 682.41 грн |
10+ | 594.02 грн |
25+ | 561.20 грн |
50+ | 513.83 грн |
IDMD-10-T-05.00-G-R |
![]() |
Виробник: Samtec Inc.
Description: CBL ASSY FLAT 20POS IDC .127M
Description: CBL ASSY FLAT 20POS IDC .127M
товару немає в наявності
В кошику
од. на суму грн.
IDMD-05-T-03.00-G-R |
![]() |
Виробник: Samtec Inc.
Description: CBL ASSY FLAT 10POS IDC .076M
Description: CBL ASSY FLAT 10POS IDC .076M
товару немає в наявності
В кошику
од. на суму грн.
FFSD-10-D-30.00-01-N-D15-O |
![]() |
Виробник: Samtec Inc.
Description: CABLE ASSEM FLAT 20 POS IDC
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Socket (3)
Contact Finish: Gold
Color: Gray, Ribbon
Length: 2.50' (762.00mm)
Shielding: Unshielded
Number of Positions: 20
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
Description: CABLE ASSEM FLAT 20 POS IDC
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Socket (3)
Contact Finish: Gold
Color: Gray, Ribbon
Length: 2.50' (762.00mm)
Shielding: Unshielded
Number of Positions: 20
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
на замовлення 68 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 3156.77 грн |
10+ | 2351.75 грн |
25+ | 2133.32 грн |
50+ | 1863.67 грн |
SFSD-25-28-H-10.00-DR-NDX |
![]() |
Виробник: Samtec Inc.
Description: CABLE ASSY DBL SOCKET 50POS 28 A
Packaging: Bulk
Features: Latch Lock, Polarizing Key
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Black, Individual
Length: 0.833' (254.00mm, 10.00")
Shielding: Unshielded
Number of Positions: 50
Number of Rows: 2
Contact Finish Thickness: 30.0µin (0.76µm)
Cable Termination: Crimp
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
Description: CABLE ASSY DBL SOCKET 50POS 28 A
Packaging: Bulk
Features: Latch Lock, Polarizing Key
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Black, Individual
Length: 0.833' (254.00mm, 10.00")
Shielding: Unshielded
Number of Positions: 50
Number of Rows: 2
Contact Finish Thickness: 30.0µin (0.76µm)
Cable Termination: Crimp
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
товару немає в наявності
В кошику
од. на суму грн.
SMA-J-P-H-ST-EM1 |
![]() |
Виробник: Samtec Inc.
Description: CONN SMA JACK STR 50OHM EDGE MNT
Packaging: Tray
Connector Type: Jack, Female Socket
Contact Termination: Solder
Impedance: 50 Ohms
Mounting Type: Board Edge, End Launch
Fastening Type: Threaded
Connector Style: SMA
Housing Color: Gold
Shield Termination: Solder
Center Contact Material: Beryllium Copper
Part Status: Active
Frequency - Max: 20 GHz
Number of Ports: 1
Description: CONN SMA JACK STR 50OHM EDGE MNT
Packaging: Tray
Connector Type: Jack, Female Socket
Contact Termination: Solder
Impedance: 50 Ohms
Mounting Type: Board Edge, End Launch
Fastening Type: Threaded
Connector Style: SMA
Housing Color: Gold
Shield Termination: Solder
Center Contact Material: Beryllium Copper
Part Status: Active
Frequency - Max: 20 GHz
Number of Ports: 1
на замовлення 3652 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 170.19 грн |
10+ | 139.31 грн |
25+ | 130.55 грн |
50+ | 116.67 грн |
100+ | 111.09 грн |
250+ | 104.14 грн |
500+ | 97.54 грн |
1000+ | 92.89 грн |
2500+ | 89.09 грн |
TMS-125-01-G-S |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 25POS 1.27MM
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 5A per Contact
Mounting Type: Through Hole
Number of Positions: 25
Number of Rows: 1
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.450" (11.43mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.230" (5.84mm)
Description: CONN HEADER VERT 25POS 1.27MM
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 5A per Contact
Mounting Type: Through Hole
Number of Positions: 25
Number of Rows: 1
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.450" (11.43mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 309 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 286.38 грн |
25+ | 248.70 грн |
50+ | 231.39 грн |
100+ | 206.74 грн |
TSW-107-26-F-Q |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 14POS 2.54MM
Description: CONN HEADER VERT 14POS 2.54MM
товару немає в наявності
В кошику
од. на суму грн.
TFSD-50-28-G-24.00-T-NDS |
![]() |
Виробник: Samtec Inc.
Description: CABLE ASSEMBLY 100POS 28AWG 24"
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Plug
Contact Finish: Gold
Color: Black, Individual
Length: 2.00' (609.60mm)
Shielding: Unshielded
Number of Positions: 100
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: Crimp
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
Description: CABLE ASSEMBLY 100POS 28AWG 24"
Packaging: Bulk
Features: Polarizing Key
Connector Type: Socket to Plug
Contact Finish: Gold
Color: Black, Individual
Length: 2.00' (609.60mm)
Shielding: Unshielded
Number of Positions: 100
Number of Rows: 2
Contact Finish Thickness: 10.0µin (0.25µm)
Cable Termination: Crimp
Pitch - Connector: 0.050" (1.27mm)
Part Status: Active
товару немає в наявності
В кошику
од. на суму грн.
BSH-030-01-F-D-A |
![]() |
Виробник: Samtec Inc.
Description: CONN SOCKET 60POS SMD GOLD
Packaging: Tray
Features: Board Guide
Connector Type: Socket, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 60
Pitch: 0.020" (0.50mm)
Height Above Board: 0.128" (3.25mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mated Stacking Heights: 5mm
Part Status: Active
Number of Rows: 2
Description: CONN SOCKET 60POS SMD GOLD
Packaging: Tray
Features: Board Guide
Connector Type: Socket, Center Strip Contacts
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 60
Pitch: 0.020" (0.50mm)
Height Above Board: 0.128" (3.25mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mated Stacking Heights: 5mm
Part Status: Active
Number of Rows: 2
на замовлення 95 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 497.49 грн |
10+ | 406.73 грн |
25+ | 381.20 грн |
50+ | 340.65 грн |
ESQT-112-02-G-D-375 |
![]() |
Виробник: Samtec Inc.
Description: CONN SOCKET 24POS 0.079 GOLD PCB
Packaging: Bulk
Connector Type: Elevated Socket
Current Rating (Amps): 4.5A per Contact
Mounting Type: Through Hole
Number of Positions: 24
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Length - Post: 0.475" (12.07mm)
Insulation Height: 0.375" (9.53mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
Description: CONN SOCKET 24POS 0.079 GOLD PCB
Packaging: Bulk
Connector Type: Elevated Socket
Current Rating (Amps): 4.5A per Contact
Mounting Type: Through Hole
Number of Positions: 24
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Length - Post: 0.475" (12.07mm)
Insulation Height: 0.375" (9.53mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику
од. на суму грн.
TSM-105-01-T-DH |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD R/A 10POS 2.54MM
Packaging: Tube
Connector Type: Header
Mounting Type: Surface Mount, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.240" (6.10mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
Description: CONN HEADER SMD R/A 10POS 2.54MM
Packaging: Tube
Connector Type: Header
Mounting Type: Surface Mount, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.240" (6.10mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
на замовлення 125 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
5+ | 79.37 грн |
50+ | 63.57 грн |
100+ | 54.30 грн |
TSW-104-23-S-T |
![]() |
Виробник: Samtec Inc.
Description: HEADER 12 POS 3 ROW .1" SEL GOLD
Description: HEADER 12 POS 3 ROW .1" SEL GOLD
товару немає в наявності
В кошику
од. на суму грн.
DWM-50-54-G-S-335 |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SNGL .050 50POS GOLD
Description: CONN HEADER SNGL .050 50POS GOLD
на замовлення 53 шт:
термін постачання 21-31 дні (днів)В кошику од. на суму грн.
EC2-10 |
![]() |
Виробник: Samtec Inc.
Description: EJECTOR 2MM HEADER CAP
Packaging: Tube
For Use With/Related Products: EHT Series
Number of Positions: 20
Accessory Type: Cap (Cover)
Part Status: Active
Description: EJECTOR 2MM HEADER CAP
Packaging: Tube
For Use With/Related Products: EHT Series
Number of Positions: 20
Accessory Type: Cap (Cover)
Part Status: Active
на замовлення 199 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
3+ | 135.83 грн |
10+ | 114.09 грн |
25+ | 109.24 грн |
50+ | 100.22 грн |
100+ | 95.67 грн |
EC2-17 |
![]() |
Виробник: Samtec Inc.
Description: EJECTOR 2MM HEADER CAP
Description: EJECTOR 2MM HEADER CAP
на замовлення 355 шт:
термін постачання 21-31 дні (днів)В кошику од. на суму грн.
EC2-20 |
![]() |
Виробник: Samtec Inc.
Description: EJECTOR 2MM HEADER CAP
Description: EJECTOR 2MM HEADER CAP
товару немає в наявності
В кошику
од. на суму грн.
EHF-105-01-F-D-SM-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 579 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 292.11 грн |
10+ | 239.37 грн |
100+ | 203.41 грн |
500+ | 170.40 грн |
EHF-105-01-L-D-SM-P |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tube
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tube
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
товару немає в наявності
В кошику
од. на суму грн.
EHF-105-01-L-D-SM-P-TR |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 10POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 150 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
150+ | 230.41 грн |
EHF-108-01-LM-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER .050" 16POS DUAL
Description: CONN HEADER .050" 16POS DUAL
товару немає в наявності
В кошику
од. на суму грн.
EHF-110-01-L-D-SM-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 20POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 20
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 2709 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 321.57 грн |
10+ | 262.70 грн |
100+ | 223.29 грн |
500+ | 187.06 грн |
1000+ | 181.29 грн |
EHF-113-01-L-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 26POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 26POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 5230 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 218.47 грн |
10+ | 178.63 грн |
100+ | 151.84 грн |
500+ | 127.20 грн |
1000+ | 121.13 грн |
5000+ | 118.11 грн |
EHF-113-01-L-D-RA |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER R/A 26POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole, Right Angle
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.263" (6.67mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER R/A 26POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole, Right Angle
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.263" (6.67mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 446 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 312.57 грн |
10+ | 255.92 грн |
100+ | 217.48 грн |
EHF-113-01-L-D-SM-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 26POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 26POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 1890 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 477.03 грн |
10+ | 390.11 грн |
100+ | 331.52 грн |
500+ | 277.74 грн |
1000+ | 277.46 грн |
EHF-113-01-L-D-SM-P-TR |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 26POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 26POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 150 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
150+ | 357.56 грн |
EHF-117-01-F-D-SM-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 34POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 34POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 4023 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
2+ | 256.93 грн |
10+ | 209.98 грн |
100+ | 178.47 грн |
500+ | 149.51 грн |
1000+ | 142.38 грн |
EHF-117-01-L-D-SM |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 34POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 34POS 1.27MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 1236 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 400.94 грн |
10+ | 327.86 грн |
100+ | 278.71 грн |
500+ | 233.49 грн |
1000+ | 231.03 грн |
EHF-117-01-L-D-SM-LC |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 34POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 34POS 1.27MM
Packaging: Tube
Features: Board Lock, Keying Slot
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 796 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 452.49 грн |
10+ | 370.01 грн |
100+ | 314.49 грн |
500+ | 263.47 грн |
EHF-120-01-F-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 40POS 1.27MM
Features: Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 40POS 1.27MM
Features: Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 3418 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 366.57 грн |
10+ | 300.05 грн |
100+ | 255.01 грн |
500+ | 213.63 грн |
1000+ | 209.64 грн |
EHF-125-01-F-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 50POS 1.27MM
Features: Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 50POS 1.27MM
Features: Keying Slot
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 1.75A
Mounting Type: Through Hole
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.107" (2.71mm)
Insulation Height: 0.325" (8.25mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 355 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 389.48 грн |
10+ | 305.64 грн |
100+ | 249.12 грн |
EHF-125-01-LM-D-RA |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER R/A 50POS 1.27MM
Description: CONN HEADER R/A 50POS 1.27MM
товару немає в наявності
В кошику
од. на суму грн.
EHT-105-01-L-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 10POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 10POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 15.0µin (0.38µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
товару немає в наявності
В кошику
од. на суму грн.
EHT-105-01-S-D-SM-10-K-TR |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 10POS 2MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: 9
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 10POS 2MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: 9
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
товару немає в наявності
В кошику
од. на суму грн.
EHT-105-01-S-D-SM-LC-K |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER .787" 10POS DUAL
Description: CONN HEADER .787" 10POS DUAL
товару немає в наявності
В кошику
од. на суму грн.
EHT-107-01-S-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 14POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 14POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
товару немає в наявності
В кошику
од. на суму грн.
EHT-108-01-S-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 16POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 16POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 548 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 430.39 грн |
10+ | 352.05 грн |
100+ | 299.24 грн |
500+ | 250.69 грн |
EHT-108-01-S-D-RA |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER R/A 16POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.300" (7.62mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER R/A 16POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.300" (7.62mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 2033 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 537.58 грн |
10+ | 439.83 грн |
100+ | 373.88 грн |
500+ | 318.57 грн |
EHT-108-01-S-D-SM |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 16POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 16POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 842 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 615.32 грн |
10+ | 503.96 грн |
100+ | 428.38 грн |
500+ | 370.22 грн |
EHT-108-01-S-D-SM-04-P-TR |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER .787" 16POS DUAL SMD
Description: CONN HEADER .787" 16POS DUAL SMD
товару немає в наявності
В кошику
од. на суму грн.
EHT-108-01-S-D-SM-P |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER .787" 16POS DUAL SMD
Description: CONN HEADER .787" 16POS DUAL SMD
товару немає в наявності
В кошику
од. на суму грн.
EHT-108-01-S-D-SM-P-TR |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 16POS 2MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 16POS 2MM
Packaging: Tape & Reel (TR)
Features: Keying Slot, Pick and Place
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 900 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
150+ | 437.92 грн |
300+ | 401.59 грн |
450+ | 400.10 грн |
EHT-110-01-S-D-SM-LC-K |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 20POS 2MM
Description: CONN HEADER SMD 20POS 2MM
товару немає в наявності
В кошику
од. на суму грн.
EHT-112-01-S-D-SM |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 24POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 24
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 24POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 24
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 380 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 1016.26 грн |
10+ | 867.04 грн |
100+ | 755.89 грн |
EHT-112-01-S-D-SM-LC-K |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER .787" 24POS DUAL SMD
Description: CONN HEADER .787" 24POS DUAL SMD
товару немає в наявності
В кошику
од. на суму грн.
EHT-113-01-S-D-RA |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER R/A 26POS 2MM
Description: CONN HEADER R/A 26POS 2MM
товару немає в наявності
В кошику
од. на суму грн.
EHT-117-01-S-D |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER VERT 34POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER VERT 34POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.114" (2.90mm)
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 1194 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 417.30 грн |
10+ | 341.81 грн |
100+ | 290.54 грн |
500+ | 243.41 грн |
1000+ | 241.79 грн |
EHT-117-01-S-D-SM |
![]() |
Виробник: Samtec Inc.
Description: CONN HEADER SMD 34POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
Description: CONN HEADER SMD 34POS 2MM
Packaging: Tube
Features: Keying Slot
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Surface Mount
Number of Positions: 34
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.370" (9.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.120" (3.05mm)
на замовлення 22 шт:
термін постачання 21-31 дні (днів)Кількість | Ціна |
---|---|
1+ | 1465.47 грн |
10+ | 1150.31 грн |
