Продукція > SAMTEC INC. > Всі товари виробника SAMTEC INC. (211776) > Сторінка 2464 з 3530

Обрати Сторінку:   [  << Попередня Сторінка ]  1 353 706 1059 1412 1765 2118 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2471 2824 3177 3530  [ Наступна Сторінка >> ]
Фото Назва Виробник Інформація Доступність
Ціна
MTMM-105-06-S-S-160 Samtec Inc. Description: CONN HEADER VERT 5POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 5
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.178" (4.52mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.397" (10.08mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 1039 шт:
термін постачання 21-31 дні (днів)
2+185.43 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-112-07-S-S-160 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 12POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 683 шт:
термін постачання 21-31 дні (днів)
2+203.56 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-205-08-S-S-160-RA Samtec Inc. mtsw.pdf Description: CONN HEADER R/A 5POS 5.08MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Number of Positions: 5
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.200" (5.08mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.119" (3.02mm)
Shrouding: Unshrouded
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 378 шт:
термін постачання 21-31 дні (днів)
2+206.86 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTMM-106-04-S-S-160 Samtec Inc. Description: CONN HEADER VERT 6POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.104" (2.64mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.323" (8.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 855 шт:
термін постачання 21-31 дні (днів)
2+206.86 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-113-07-S-S-160 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 13POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 13
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 533 шт:
термін постачання 21-31 дні (днів)
2+219.22 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTMM-107-04-S-S-160 Samtec Inc. Description: CONN HEADER VERT 7POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 7
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.104" (2.64mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.323" (8.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 759 шт:
термін постачання 21-31 дні (днів)
2+222.51 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-115-07-S-S-160 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 15POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 15
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 533 шт:
термін постачання 21-31 дні (днів)
2+254.66 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTMM-108-05-S-S-160 Samtec Inc. Description: CONN HEADER VERT 8POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.158" (4.01mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.377" (9.58mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 660 шт:
термін постачання 21-31 дні (днів)
2+266.19 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTLW-111-07-S-S-160 Samtec Inc. Description: CONN HEADER VERT 11POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 5.2A per Contact
Mounting Type: Through Hole
Number of Positions: 11
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.210" (5.33mm)
Insulation Height: 0.060" (1.52mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 443 шт:
термін постачання 21-31 дні (днів)
2+295.86 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
HCSS-16-01-T Samtec Inc. hcss-xx-x-xx.xx-01-xxx-xxx-mkt.pdf Description: IDC SOCKET AND TERMINAL CABLE AS
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-110-07-S-S-160 Samtec Inc. Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.237" (6.02mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.456" (11.58mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 558 шт:
термін постачання 21-31 дні (днів)
1+342.84 грн
В кошику  од. на суму  грн.
MTMM-111-04-S-S-160 Samtec Inc. Description: 2.00 MM VARIABLE POST HEIGHT TER
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 11
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.104" (2.64mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.323" (8.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 435 шт:
термін постачання 21-31 дні (днів)
1+363.44 грн
В кошику  од. на суму  грн.
MTMM-112-03-S-S-160 Samtec Inc. Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.083" (2.11mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.302" (7.67mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 435 шт:
термін постачання 21-31 дні (днів)
1+380.75 грн
В кошику  од. на суму  грн.
HCSS-16-01-N Samtec Inc. hcss-xx-x-xx.xx-01-xxx-xxx-mkt.pdf Description: IDC SOCKET AND TERMINAL CABLE AS
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
HCSS-16-01 Samtec Inc. hcss-xx-x-xx.xx-01-xxx-xxx-mkt.pdf Description: IDC SOCKET AND TERMINAL CABLE AS
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
MTLW-120-05-S-S-160 Samtec Inc. Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 5.2A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.060" (1.52mm)
Shrouding: Unshrouded
Overall Contact Length: 0.335" (8.51mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 221 шт:
термін постачання 21-31 дні (днів)
1+576.07 грн
В кошику  од. на суму  грн.
PSS-16-01-T-S Samtec Inc. PSS-16-01-T-S Description: .200" POWER SOCKET STRIP
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-120-02-S-S-160 Samtec Inc. Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.036" (0.91mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.255" (6.48mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 186 шт:
термін постачання 21-31 дні (днів)
1+610.68 грн
В кошику  од. на суму  грн.
MTMM-124-05-S-S-160 Samtec Inc. Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 24
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.158" (4.01mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.377" (9.58mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 228 шт:
термін постачання 21-31 дні (днів)
1+735.95 грн
В кошику  од. на суму  грн.
ZW-14-10-T-S-365-280 Samtec Inc. zw_th.pdf Description: CONN BRD STACK .100" 14POS
Packaging: Bulk
Color: Black
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Termination: Solder
Contact Finish - Post (Mating): Tin
Number of Rows: 1
Number of Positions: 14
Length - Overall Pin: 0.830" (21.082mm)
Length - Post (Mating): 0.185" (4.699mm)
Length - Stack Height: 0.365" (9.271mm)
Length - Tail: 0.280" (7.112mm)
на замовлення 226 шт:
термін постачання 21-31 дні (днів)
3+136.81 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
RF316-01SB1-07SP1-0305 Samtec Inc. rfxxxx-xxxxx-xxxxxx-xxxx-mkt.pdf?display=pdf Description: 50 OHM RF CABLE ASSEMBLY
Packaging: Bulk
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-133-06-G-D-240 Samtec Inc. Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.397" (10.08mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.240" (6.10mm)
на замовлення 90 шт:
термін постачання 21-31 дні (днів)
1+1288.94 грн
В кошику  од. на суму  грн.
MTMM-133-06-H-D-240 Samtec Inc. MTMM-101-02-F-D-006 Description: VARIABLE POST HEIGHT HEADER STRI
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.397" (10.08mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-G-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-L-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-S-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-T-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-133-08-L-D-240 Samtec Inc. Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.177" (4.50mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.476" (12.09mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-G-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-L-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-S-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-T-D-240 Samtec Inc. mtsw.pdf Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-TR CLE-150-01-G-DV-TR Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-P-TR MLE-150-01-G-DV-P-TR Samtec Inc. Description: 1MM MICRO STRIPS
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-A-TR MLE-150-01-G-DV-A-TR Samtec Inc. Description: 1MM MICRO STRIPS
Features: Board Guide
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.

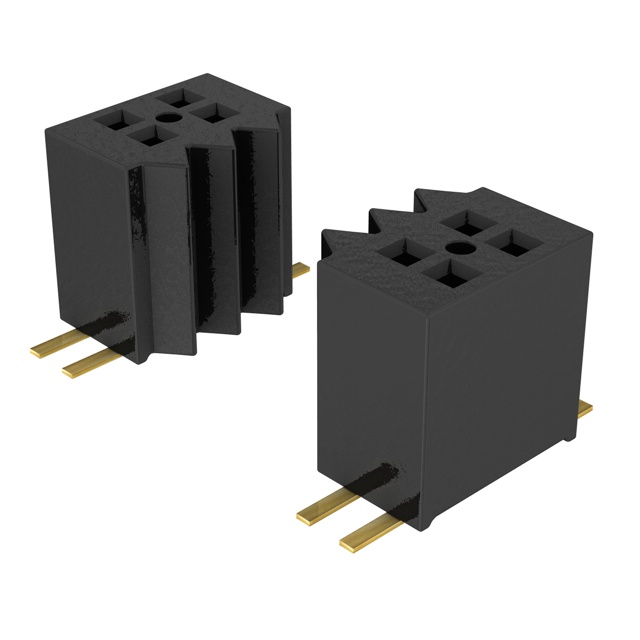

CLE-150-01-G-DV-K-TR CLE-150-01-G-DV-K-TR Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-A-K-TR MLE-150-01-G-DV-A-K-TR Samtec Inc. Description: 1MM MICRO STRIPS
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-A-TR CLE-150-01-G-DV-A-TR Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-A-P-TR MLE-150-01-G-DV-A-P-TR Samtec Inc. Description: 1MM MICRO STRIPS
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FLE-150-01-G-DV-P-TR FLE-150-01-G-DV-P-TR Samtec Inc. fle-1xx-xx-xx-dv-x-footprint.pdf Description: CONN RCPT 100POS 0.05 GOLD SMD
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.172" (4.37mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-A-K-TR CLE-150-01-G-DV-A-K-TR Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-A-P-TR CLE-150-01-G-DV-A-P-TR Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-A-P-TR FTE-150-01-G-DV-A-P-TR Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES-P-TR Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: End Shrouds, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES-A-P-TR Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FLE-150-01-G-DV-A-K-TR FLE-150-01-G-DV-A-K-TR Samtec Inc. fle-1xx-xx-xx-dv-x-footprint.pdf Description: CONN RCPT 100POS 0.05 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.172" (4.37mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DH-K-TR FTE-150-01-G-DH-K-TR Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD R/A 100P 0.8MM
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.120" (3.05mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-F-DV-A-K CLE-150-01-F-DV-A-K Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tube
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-P Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-A FTE-150-01-G-DV-A Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-A-P FTE-150-01-G-DV-A-P Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EP Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: End Shrouds
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
на замовлення 82 шт:
термін постачання 21-31 дні (днів)
14+1265.74 грн
Мінімальне замовлення: 14
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EC Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Lock, End Shrouds
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EP-P Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
на замовлення 62 шт:
термін постачання 21-31 дні (днів)
12+1302.19 грн
Мінімальне замовлення: 12
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EC-A Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Lock, End Shrouds
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EP-A-P Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES-A-P Samtec Inc. fte_sm.pdf Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FLE-150-01-GF-DV-A FLE-150-01-GF-DV-A Samtec Inc. Description: CONN RCPT 100POS 0.05 GOLD SMD
Features: Board Guide
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Gold
Insulation Height: 0.172" (4.37mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-K CLE-150-01-G-DV-K Samtec Inc. cle_sm.pdf Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Pick and Place
Packaging: Tube
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-105-06-S-S-160
Виробник: Samtec Inc.
Description: CONN HEADER VERT 5POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 5
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.178" (4.52mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.397" (10.08mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 1039 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+185.43 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-112-07-S-S-160 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 12POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 683 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+203.56 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-205-08-S-S-160-RA mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER R/A 5POS 5.08MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole, Right Angle
Number of Positions: 5
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.200" (5.08mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.119" (3.02mm)
Shrouding: Unshrouded
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 378 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+206.86 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTMM-106-04-S-S-160
Виробник: Samtec Inc.
Description: CONN HEADER VERT 6POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 6
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.104" (2.64mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.323" (8.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 855 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+206.86 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-113-07-S-S-160 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 13POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 13
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 533 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+219.22 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTMM-107-04-S-S-160
Виробник: Samtec Inc.
Description: CONN HEADER VERT 7POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 7
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.104" (2.64mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.323" (8.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 759 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+222.51 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTSW-115-07-S-S-160 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 15POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 15
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.170" (4.32mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 533 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+254.66 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTMM-108-05-S-S-160
Виробник: Samtec Inc.
Description: CONN HEADER VERT 8POS 2MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.158" (4.01mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.377" (9.58mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 660 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+266.19 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
MTLW-111-07-S-S-160
Виробник: Samtec Inc.
Description: CONN HEADER VERT 11POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 5.2A per Contact
Mounting Type: Through Hole
Number of Positions: 11
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.210" (5.33mm)
Insulation Height: 0.060" (1.52mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 443 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
2+295.86 грн
Мінімальне замовлення: 2
В кошику  од. на суму  грн.
HCSS-16-01-T hcss-xx-x-xx.xx-01-xxx-xxx-mkt.pdf
Виробник: Samtec Inc.
Description: IDC SOCKET AND TERMINAL CABLE AS
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-110-07-S-S-160
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 10
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.237" (6.02mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.456" (11.58mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 558 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+342.84 грн
В кошику  од. на суму  грн.
MTMM-111-04-S-S-160
Виробник: Samtec Inc.
Description: 2.00 MM VARIABLE POST HEIGHT TER
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 11
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.104" (2.64mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.323" (8.20mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 435 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+363.44 грн
В кошику  од. на суму  грн.
MTMM-112-03-S-S-160
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 12
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.083" (2.11mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.302" (7.67mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 435 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+380.75 грн
В кошику  од. на суму  грн.
HCSS-16-01-N hcss-xx-x-xx.xx-01-xxx-xxx-mkt.pdf
Виробник: Samtec Inc.
Description: IDC SOCKET AND TERMINAL CABLE AS
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
HCSS-16-01 hcss-xx-x-xx.xx-01-xxx-xxx-mkt.pdf
Виробник: Samtec Inc.
Description: IDC SOCKET AND TERMINAL CABLE AS
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
MTLW-120-05-S-S-160
Виробник: Samtec Inc.
Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 5.2A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.115" (2.92mm)
Insulation Height: 0.060" (1.52mm)
Shrouding: Unshrouded
Overall Contact Length: 0.335" (8.51mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 221 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+576.07 грн
В кошику  од. на суму  грн.
PSS-16-01-T-S PSS-16-01-T-S
Виробник: Samtec Inc.
Description: .200" POWER SOCKET STRIP
Packaging: Tube
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-120-02-S-S-160
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.036" (0.91mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.255" (6.48mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 186 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+610.68 грн
В кошику  од. на суму  грн.
MTMM-124-05-S-S-160
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 24
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.158" (4.01mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.377" (9.58mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length - Mating: 0.160" (4.06mm)
на замовлення 228 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+735.95 грн
В кошику  од. на суму  грн.
ZW-14-10-T-S-365-280 zw_th.pdf
Виробник: Samtec Inc.
Description: CONN BRD STACK .100" 14POS
Packaging: Bulk
Color: Black
Mounting Type: Through Hole
Pitch: 0.100" (2.54mm)
Termination: Solder
Contact Finish - Post (Mating): Tin
Number of Rows: 1
Number of Positions: 14
Length - Overall Pin: 0.830" (21.082mm)
Length - Post (Mating): 0.185" (4.699mm)
Length - Stack Height: 0.365" (9.271mm)
Length - Tail: 0.280" (7.112mm)
на замовлення 226 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
3+136.81 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
RF316-01SB1-07SP1-0305 rfxxxx-xxxxx-xxxxxx-xxxx-mkt.pdf?display=pdf
Виробник: Samtec Inc.
Description: 50 OHM RF CABLE ASSEMBLY
Packaging: Bulk
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-133-06-G-D-240
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 20.0µin (0.51µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.397" (10.08mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.240" (6.10mm)
на замовлення 90 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1288.94 грн
В кошику  од. на суму  грн.
MTMM-133-06-H-D-240 MTMM-101-02-F-D-006
Виробник: Samtec Inc.
Description: VARIABLE POST HEIGHT HEADER STRI
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.098" (2.50mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.397" (10.08mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-G-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-L-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-S-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTSW-133-07-T-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
MTMM-133-08-L-D-240
Виробник: Samtec Inc.
Description: 2MM TERMINAL STRIP
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.177" (4.50mm)
Insulation Height: 0.059" (1.50mm)
Shrouding: Unshrouded
Overall Contact Length: 0.476" (12.09mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-G-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-L-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-S-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
HMTSW-133-07-T-D-240 mtsw.pdf
Виробник: Samtec Inc.
Description: CONN HEADER VERT 66POS 2.54MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 66
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.090" (2.29mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.430" (10.92mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-TR cle_sm.pdf
CLE-150-01-G-DV-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-P-TR
MLE-150-01-G-DV-P-TR
Виробник: Samtec Inc.
Description: 1MM MICRO STRIPS
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-A-TR
MLE-150-01-G-DV-A-TR
Виробник: Samtec Inc.
Description: 1MM MICRO STRIPS
Features: Board Guide
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-K-TR cle_sm.pdf
CLE-150-01-G-DV-K-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-A-K-TR
MLE-150-01-G-DV-A-K-TR
Виробник: Samtec Inc.
Description: 1MM MICRO STRIPS
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-A-TR cle_sm.pdf
CLE-150-01-G-DV-A-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
MLE-150-01-G-DV-A-P-TR
MLE-150-01-G-DV-A-P-TR
Виробник: Samtec Inc.
Description: 1MM MICRO STRIPS
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Voltage Rating: 310VAC
Current Rating (Amps): 2.9A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.039" (1.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FLE-150-01-G-DV-P-TR fle-1xx-xx-xx-dv-x-footprint.pdf
FLE-150-01-G-DV-P-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.05 GOLD SMD
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.172" (4.37mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-A-K-TR cle_sm.pdf
CLE-150-01-G-DV-A-K-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-A-P-TR cle_sm.pdf
CLE-150-01-G-DV-A-P-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-A-P-TR fte_sm.pdf
FTE-150-01-G-DV-A-P-TR
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES-P-TR fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: End Shrouds, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES-A-P-TR fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FLE-150-01-G-DV-A-K-TR fle-1xx-xx-xx-dv-x-footprint.pdf
FLE-150-01-G-DV-A-K-TR
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.05 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.172" (4.37mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DH-K-TR fte_sm.pdf
FTE-150-01-G-DH-K-TR
Виробник: Samtec Inc.
Description: CONN HEADER SMD R/A 100P 0.8MM
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount, Right Angle
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.120" (3.05mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-F-DV-A-K cle_sm.pdf
CLE-150-01-F-DV-A-K
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Board Guide, Pick and Place
Packaging: Tube
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-P fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-A fte_sm.pdf
FTE-150-01-G-DV-A
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-A-P fte_sm.pdf
FTE-150-01-G-DV-A-P
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EP fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: End Shrouds
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
на замовлення 82 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
14+1265.74 грн
Мінімальне замовлення: 14
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EC fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Lock, End Shrouds
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EP-P fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
на замовлення 62 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
12+1302.19 грн
Мінімальне замовлення: 12
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EC-A fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Lock, End Shrouds
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-EP-A-P fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Tube
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FTE-150-01-G-DV-ES-A-P fte_sm.pdf
Виробник: Samtec Inc.
Description: CONN HEADER SMD 100POS 0.8MM
Features: Board Guide, End Shrouds, Pick and Place
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Shape: Square
Insulation Height: 0.055" (1.40mm)
Shrouding: Unshrouded
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.047" (1.20mm)
Contact Length - Mating: 0.075" (1.90mm)
товару немає в наявності
В кошику  од. на суму  грн.
FLE-150-01-GF-DV-A
FLE-150-01-GF-DV-A
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.05 GOLD SMD
Features: Board Guide
Packaging: Tube
Connector Type: Receptacle
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Gold
Insulation Height: 0.172" (4.37mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
CLE-150-01-G-DV-K cle_sm.pdf
CLE-150-01-G-DV-K
Виробник: Samtec Inc.
Description: CONN RCPT 100POS 0.031 GOLD SMD
Features: Pick and Place
Packaging: Tube
Connector Type: Receptacle, Pass Through
Current Rating (Amps): 2.7A per Contact
Mounting Type: Surface Mount
Number of Positions: 100
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.031" (0.80mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Insulation Height: 0.130" (3.30mm)
Row Spacing - Mating: 0.047" (1.20mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
Обрати Сторінку:   [  << Попередня Сторінка ]  1 353 706 1059 1412 1765 2118 2459 2460 2461 2462 2463 2464 2465 2466 2467 2468 2469 2471 2824 3177 3530  [ Наступна Сторінка >> ]
