Виробник: Tark Thermal Solutions

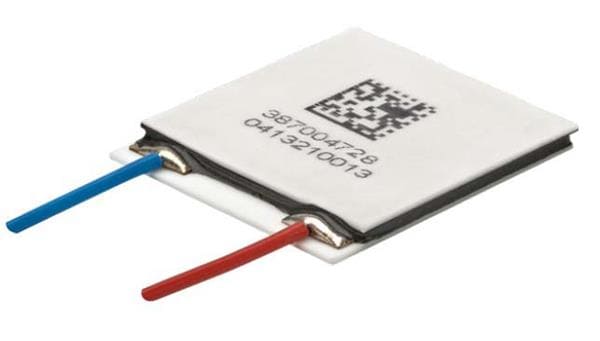

Description: PC4,12,F1,3030,TA,RT,W6
Features: Lead Wires, Sealed - Silicone RTV
Packaging: Box
Size / Dimension: Square - 30.00mm L x 30.00mm W
Operating Temperature: 120°C
Height: 3.20mm
Delta Tmax @ Th: 67°C @ 25°C
Qmax @ Th: 33.4W @ 25°C
Part Status: Active
Current - Max: 3.9 A
Voltage - Max: 14.4 V
Resistance: 3.36 Ohms
Number of Stages: 1

Виробник: Tark Thermal Solutions
Description: PC6,12,F1.4040,TA,RT,W6
Features: Lead Wires, Sealed - Silicone RTV
Packaging: Box
Size / Dimension: Square - 40.00mm L x 40.00mm W
Operating Temperature: 120°C
Height: 3.81mm
Delta Tmax @ Th: 67°C @ 25°C
Qmax @ Th: 51.4W @ 25°C
Part Status: Active
Current - Max: 6 A
Voltage - Max: 14.5 V
Resistance: 2.25 Ohms
Number of Stages: 1

Виробник: Tark Thermal Solutions
Description: PC8,12,F1,4040,TA,RT,W6
Features: Lead Wires, Sealed - Silicone RTV
Packaging: Box
Size / Dimension: Square - 40.00mm L x 40.00mm W
Operating Temperature: 120°C
Height: 3.33mm
Delta Tmax @ Th: 67°C @ 25°C
Qmax @ Th: 72.0W @ 25°C
Current - Max: 8.5 A
Voltage - Max: 14.5 V
Resistance: 1.55 Ohms
Number of Stages: 1

Виробник: Tark Thermal Solutions
Description: PELTIER MODULE 126.2W @ 25C
Packaging: Bulk
Features: Lead Wires, Sealed - Silicone RTV
Operating Temperature: 80°C
Delta Tmax @ Th: 67°C @ 25°C
Qmax @ Th: 126.2W @ 25°C
Current - Max: 14.7 A
Voltage - Max: 14.5 V
Resistance: 910 mOhms
Number of Stages: 1

Виробник: Tark Thermal Solutions

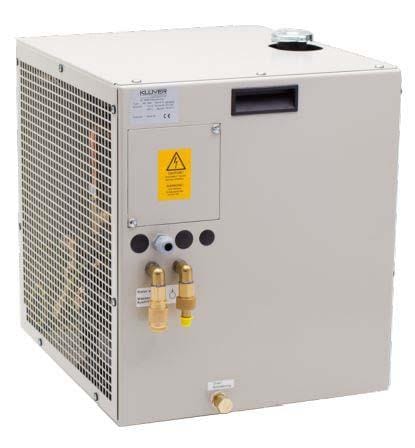

Description: LA5000 5000w heat exchanger
Packaging: Box
Voltage: 200 ~ 240VAC
Dimensions - Overall: 22.24" L x 18.43" W x 20.83" H (565.0mm x 468.0mm x 529.0mm)
Operating Temperature: 5°C ~ 40°C
Power - Cooling: 5 kW
Product Type: Active, Heat Exchanger
Fluid Capacity: 6200ML (209.6 oz)
Flow Rate: 1.06GPM (4.0LPM)
Current: 3.3 A

Виробник: Tark Thermal Solutions
Description: PELTIER MOD CP10,63,06,L1,W4.5
Packaging: Bulk
Features: Lead Wires, Non-Sealed
Size / Dimension: Rectangular - 29.72mm L x 15.00mm W
Operating Temperature: 80°C
Height: 3.58mm
Delta Tmax @ Th: 67°C @ 25°C
Qmax @ Th: 12.7W @ 25°C
Current - Max: 3 A
Voltage - Max: 7.6 V
Resistance: 2.16 Ohms
Number of Stages: 1

Виробник: Tark Thermal Solutions
Description: THERMOELECT ASSY DIRECT-AIR 113W
Packaging: Box
Weight: 6.4 lbs (2.9 kg)
Dimensions - Overall: 300mm L x 152mm W x 94mm H
Operating Temperature: -10°C ~ 47°C
Power - Input: 139 W
Heat Transfer Type: Direct to Air
Power - Cooling: 113 W
Fan Location: Warm Side
Current: 5.8 A
Voltage: 24 V
