Продукція > AXIOMET > Всі товари виробника AXIOMET (353) > Сторінка 1 з 6

Виробник: AXIOMET
WIN1 Indicators, Voltage & Continuity Testers

Виробник: AXIOMET
WIN3 Indicators, Voltage & Continuity Testers

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V; 100mF
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature; transistors' gain h_FE
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 600mV; 6V; 60V; 600V
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V
AC voltage measuring accuracy: ±(1% + 10 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(1% + 5 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring accuracy: ±(1.8% + 5 digit)
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 100mF
Capacitance measuring accuracy: ±(4%+ 15 digit)
Frequency measuring range: 10Hz...10MHz
Frequency measuring accuracy: ±(0.5%+2 digit)
Temperature measuring range: -20...1000°C
Resistance measuring accuracy: ±(1%+5 digit)
Continuity test: acoustic indication; <50Ω
Power supply: battery AAA 1,5V x2
Standard equipment: temperature probe; test leads; user's manual
Conform to the norm: CAT III 600V
Dimensions (W x H x D): 150x72x45mm
Measuring instrument features: alarms breach of limit values; automatic power-off; autoranging; contactless voltage detector; HOLD function; low battery indicator; MIN/MAX function; white LED torch
Battery/ rechargeable battery: battery AAA 1,5V x2
Illumination: yes
Weight with battery: 300g
Band: 1000Hz
Test: diodes

Виробник: AXIOMET
Category: One Channel Power Supplies
Description: Laboratory power supply: standard; single-channel; 0÷120VDC
Type of laboratory power supply: standard
Kind of power supply: single-channel
Number of channels: 1
Output current: 0...1A
Supply voltage: 230V AC
Voltage stabilisation: ≤0.01%+ 3mV
Current stabilisation: ≤0.02%+ 6mA
Dimensions: 270x190x130mm
Voltage (regulated) ripple and noise: ≤0.5mVrms
Connectors for the country: Europe
Output voltage: 0...120V DC
Measuring instrument features: simultaneous voltage and current readout; smart cooling control; voltage and current stepless adjustment
Standard equipment: mains cable; test leads

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit (3999); 3x/s; True RMS AC
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: 3,5 digit (3999)
DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 10A
AC current measuring range: 0.1...400µA; 4mA; 40mA; 400mA; 10A
Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; low battery indicator; MIN/MAX/REL function; overflow indicator
DC current measuring accuracy: ±(1.5% + 3 digit)
AC current measuring accuracy: ±(1.5% + 3 digit)
DC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 1mV...4V; 40V; 400V; 750V
AC voltage measuring accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(0.5%+2 digit)
Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 10pF...10nF; 100nF; 1µF; 10µF; 100µF; 1mF
Capacitance measuring accuracy: ±(2%+ 5 digit)
Temperature measuring range: -20...1000°C
Temperature measurement accuracy: ±(1% + 5 digit)
Continuity test: acoustic indication; <40Ω
Power supply: battery LR6 AA 1,5V x2
Standard equipment: K-type temperature probe; test leads
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance; temperature
Conform to the norm: CAT IV 600V; EN 61010
Battery/ rechargeable battery: none
Sampling: 3x/s
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
True effective value measurement: True RMS AC
Diode test: 0.5mA @1.5V
Dimensions (W x H x D): 91x180x45mm

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; IrDA,USB; LCD; 5 digits; Bargraph: 51segm.
Interface: IrDA; USB
Protection: anti-overload OPP
Battery/ rechargeable battery: battery GR03 AAA 1,5V x6
Power supply: battery GR03 AAA 1,5V x6
Type of meter: digital multimeter
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Kind of display used: LCD
Software: compatible Windows 98; compatible Windows 2000; compatible Windows NT; Windows Vista compatible; Windows XP compatible
True effective value measurement: True RMS
Kind of output connector: USB A plug
Bargraph: 51 segm.
Capacitance measuring range: 10pF...50nF; 500nF; 5µF; 50µF; 500µF; 5mF
AC current measuring range: 0.01...500µA; 5mA; 50mA; 0.5A; 10A
DC current measuring range: 10nA...500µA; 5mA; 50mA; 500mA; 5A; 10A
DC voltage measuring range: 0.001...50mV; 5mV; 500mV; 50V; 500V; 1kV
AC voltage measuring range: 0.001...50mV; 500mV; 5V; 50V; 500V; 1kV
Diode test: 0.7mA @2.5V
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ
Frequency measuring range: 5...200kHz
Frequency measuring accuracy: ±(0.006%+4 digit)
Duty cycle factor: 0.01...95%
DC voltage measuring accuracy: ±(0.03% + 10 digit)
Resistance measuring accuracy: ±(0.1%+10 digit)
DC current measuring accuracy: ±(0.15% + 15 digit)
Dimensions (W x H x D): 100x200x40mm
AC voltage measuring accuracy: ±(0.5% + 40 digit)
AC current measuring accuracy: ±(0.75% + 20 digit)
Capacitance measuring accuracy: ±(1%+ 5 digit)
Pollution degree: 2
Waveform frequency for duty cycle factor: 5...500Hz
Bandwidth for AC voltage measurements: 40...20kHz
Bandwidth for AC current measurements: 40...20kHz
Weight with battery: 560g
Duty cycle factor measurement accuracy: ±(2% + 5 digits)
Measuring resolution: 0,01Ω
Measurement: capacitance; dBm; DC current; DC voltage; duty cycle; frequency; resistance
Sampling: 2,5x/s
Standard equipment: optical cable with USB; set of test leads with insulated clips; set of test leads with probes
Display parameters: 5 digits
Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; indicates incorrect connection of test leads; low battery indicator; MIN/MAX function; REL function
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
Continuity test: acoustic indication; <50Ω

Виробник: AXIOMET
Category: Multichannel Power Supplies
Description: Laboratory power supply: standard; linear,multi-channel; 0÷3A
Output voltage: 0...30V DC
Protection: anti-overload OPP; short circuit protection SCP
Supply voltage: 230V AC
Type of laboratory power supply: standard
Output current: 0...3A
Output current 2: 0...3A
Output voltage 2: 0...30V DC
Output current resolution: 10mA
Voltage (regulated) ripple and noise: ≤1mVrms
Output voltage resolution: 0.1V
Dimensions: 260x160x310mm
Number of channels: 3
Output current 3: 3A
Measuring instrument features: 2 regulated blocks that can operate in constant current or constant voltage modes and as serial, parallel or independent PSUs; programmable current limiter; simultaneous voltage and current readout; smart cooling control; very quiet fan operation; voltage and current stepless adjustment
Output voltage 3: 5V DC
Display parameters: 3,5 digit
Kind of power supply: linear; multi-channel
Connectors for the country: Europe
Kind of display used: LED x4

Виробник: AXIOMET
Category: One Channel Power Supplies
Description: Laboratory power supply: standard; switching,single-channel
Kind of power supply: single-channel; switching
Output voltage: 30V DC
Output current: 3.75A
Operating temperature: 0...40°C
Protection: output short circuit
Supply voltage: 85...265V AC
Connectors for the country: Europe
Software: for calibration
Kind of display used: LCD
Standard equipment: mains cable; test leads
Type of laboratory power supply: standard
Output current resolution: 1mA
Output voltage resolution: 10mV
Dimensions: 185x88x38mm
Number of channels: 1
Output current 3: 2A
Output current 2: 2A
Output voltage 3: 5V DC
Output voltage 2: 5V DC
Maximum power: 50W
Display parameters: 4 digit
Voltage load regulation: ≤0,02% + 3mV
Measuring instrument features: automatic recognition of USB charging port; handheld design; settings memory; USB x2

Виробник: AXIOMET
Category: One Channel Power Supplies
Description: Laboratory power supply: standard; switching,single-channel
Output voltage: 0...30V DC
Protection: anti-overload OPP
Supply voltage: 230V AC
Type of laboratory power supply: standard
Output current: 0...5A
Voltage (regulated) ripple and noise: ≤200mVpp
Current stabilisation: ≤1%+ 5mA
Voltage stabilisation: ≤1%+ 10mV
Dimensions: 85x160x205mm
Number of channels: 1
Measuring instrument features: coarse and precise voltage and current adjustment; simultaneous voltage and current readout; voltage and current stepless adjustment
Display parameters: 3 digit
Kind of power supply: single-channel; switching
Standard equipment: mains cable; test leads with crocodile clips
Connectors for the country: Europe
Kind of display used: LCD

Виробник: AXIOMET
Category: Multichannel Power Supplies
Description: Laboratory power supply: standard; linear,multi-channel; 0÷5A
Output voltage: 0...30V DC
Protection: anti-overload OPP; short circuit protection SCP
Supply voltage: 230V AC
Type of laboratory power supply: standard
Output current 2: 0...5A
Output current: 0...5A
Output voltage 2: 0...30V DC
Output current resolution: 10mA
Voltage (regulated) ripple and noise: ≤1mVrms
Output voltage resolution: 0.1V
Dimensions: 260x160x360mm
Number of channels: 3
Output current 3: 3A
Measuring instrument features: 2 regulated blocks that can operate in constant current or constant voltage modes and as serial, parallel or independent PSUs; programmable current limiter; simultaneous voltage and current readout; smart cooling control; very quiet fan operation; voltage and current stepless adjustment
Output voltage 3: 5V DC
Display parameters: 3,5 digit
Kind of power supply: linear; multi-channel
Connectors for the country: Europe
Kind of display used: LED x4

Виробник: AXIOMET
Category: Multichannel Power Supplies
Description: Laboratory power supply: standard; linear,multi-channel; 0÷5A
Type of laboratory power supply: standard
Kind of power supply: linear; multi-channel
Number of channels: 4
Output voltage 2: 0...30V DC
Output current: 0...5A
Supply voltage: 100...240V AC
Kind of display used: LED x4
Output voltage resolution: 0.1V
Output current resolution: 10mA
Protection: against reverse polarity; anti-overload OPP; anti-overvoltage OVP
Dimensions: 250x150x310mm
Voltage (regulated) ripple and noise: ≤2mVrms
Output current 2: 0...5A
Output voltage: 0...30V DC
Voltage (not regulated) ripple and noise: ≤2mV
Output current 3: 1A
Output current 4: 1A
Output voltage 4: 2.2...15V DC
Output voltage 3: 2.2...15V DC
Measuring instrument features: simultaneous voltage and current readout; voltage and current stepless adjustment
Display parameters: 3 digit
Voltage load regulation: ≤0,01% + 3mV
Current load regulation: ≤0,2% + 3mA

Виробник: AXIOMET
Category: One Channel Power Supplies
Description: Laboratory power supply: standard; switching,single-channel
Output voltage: 0...30V DC
Protection: anti-overload OPP
Supply voltage: 230V AC
Type of laboratory power supply: standard
Output current: 0...10A
Voltage (regulated) ripple and noise: ≤200mVpp
Current stabilisation: ≤1%+ 5mA
Voltage stabilisation: ≤1%+ 10mV
Dimensions: 80x160x205mm
Number of channels: 1
Measuring instrument features: coarse and precise voltage and current adjustment; simultaneous voltage and current readout; voltage and current stepless adjustment
Display parameters: 3 digit
Kind of power supply: single-channel; switching
Connectors for the country: Europe
Kind of display used: LCD

Виробник: AXIOMET
Category: Meters and AC/DC Clamp Probes
Description: Meter: multifunction; digital,pincers type; Øcable: 55mm; LCD
Operating temperature: 0...40°C
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: none
Type of meter: multifunction
Conform to the norm: CAT III 600V; EN 61010
Kind of meter: digital; pincers type
Kind of display used: LCD
Capacitance measuring range: 40nF; 400nF; 4µF; 40µF; 100µF
DC voltage measuring range: 400mV; 4V; 40V; 400V; 1kV
AC voltage measuring range: 400mV; 4V; 40V; 400V; 750V
AC current measuring range: 400A; 2kA
DC current measuring range: 400A; 2kA
Resistance measuring range: 0.4kΩ; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Frequency measuring range: 5.12Hz; 51.2Hz; 512Hz; 5.12kHz; 51.2kHz; 100kHz; 512kHz
Frequency measuring accuracy: ±(0.5%+4 digit)
Max. diameter of measured cable: 55mm
DC voltage measuring accuracy: ±(0.5% + 4 digit)
Dimensions: 275x96x50mm
Resistance measuring accuracy: ±(0.8%+4 digit)
DC current measuring accuracy: ±(3.5% + 20 digit)
AC voltage measuring accuracy: ±(0.8% + 10 digit)
AC current measuring accuracy: ±(3% + 10 digit)
Capacitance measuring accuracy: ±(3.5%+ 8 digit)
Display parameters: 3,5 digit (3999)
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance
Continuity test: acoustic indication
Standard equipment: test leads
Measuring instrument features: automatic power-off; display zeroing function in DCA measurements; HOLD function; low battery indicator; REL function
Test: diodes

Виробник: AXIOMET
Category: Temperature Meters
Description: Meter: temperature; digital; LCD; 4 digit; Temp.(IR): -50÷300°C
Measuring instrument features: automatic power-off; contact or non-contact temperature measurement; HOLD function; laser sight; low battery indicator; MIN/MAX/MEDIUM function
Power supply: battery GR03 AAA 1,5V x3
Battery/ rechargeable battery: battery GR03 AAA 1,5V x3
Type of meter: temperature
Measuring unit: °C; °F
Kind of display used: LCD
Kind of meter: digital
Illumination: yes
Temperature measuring range measured by probe: -200...1300°C
Non-contact temperature measuring range: -50...300°C
Temperature measurement resolution: 0.1°C
Temperature measuring accuracy (measurement with probe): ±(0.1% + 0.7°C)
Dimensions: 121x60x30mm
Non-contact temperature measuring accuracy: ±(1.5% + 3°C)
Optical resolution: 2:1
Emissivity value: 0,95 (fixed)
Standard equipment: case; drop-like K-type probe; hand strap
Display parameters: 4 digit
Measurement: non-contact temeprature (IR)
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4,5 digit (19999); 3x/s; Resol: 0.1°C
Type of meter: digital multimeter
Measurement: AC current; capacitance; DC current; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 4,5 digit (19999)
DC voltage measuring range: 10µV...200mV; 2V; 20V; 200V; 1kV
DC voltage measuring accuracy: ±(0.1% + 5 digit)
AC voltage measuring range: 100µV...2V; 20V; 200V; 750V
Bandwidth for AC voltage measurements: 40...400Hz
DC current measuring range: 10nA...200µA; 2mA; 20mA; 200mA; 20A
DC current measuring accuracy: ±(0.5% + 4 digit)
AC current measuring range: 1µA...20mA; 200mA; 20A
AC current measuring accuracy: ±(1.5% + 25 digit)
Bandwidth for AC current measurements: 40...200Hz
Resistance measuring range: 10mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 200MΩ
Capacitance measuring range: 1pF...20nF; 2µF; 200µF
Capacitance measuring accuracy: ±(3.5%+ 10 digit)
Frequency measuring range: 1...20kHz; 200kHz
Frequency measuring accuracy: ±(3%+150 digit)
Temperature measuring range: -10...1000°C
Temperature measurement accuracy: ±(0.8% + 40 digit)
Resistance measuring accuracy: ±(0.4%+5 digit)
Temperature measurement resolution: 0.1°C
Continuity test: acoustic indication; <70Ω
Weight with battery: 400g
Power supply: battery 6F22 9V x1
Standard equipment: drop-like K-type probe with banana clips 4mm TP-09; test leads
Conform to the norm: CAT III 1000V; EN 61010
Measuring instrument features: automatic power-off; HOLD function; impact resistant holster; low battery indicator; manual ranging; universal
Diode test: 1mA @3V
Display height 1: 32mm
Body dimensions: 97x35x189mm
Sampling: 3x/s
Optional equipment: AX-58P soft cover

Виробник: AXIOMET

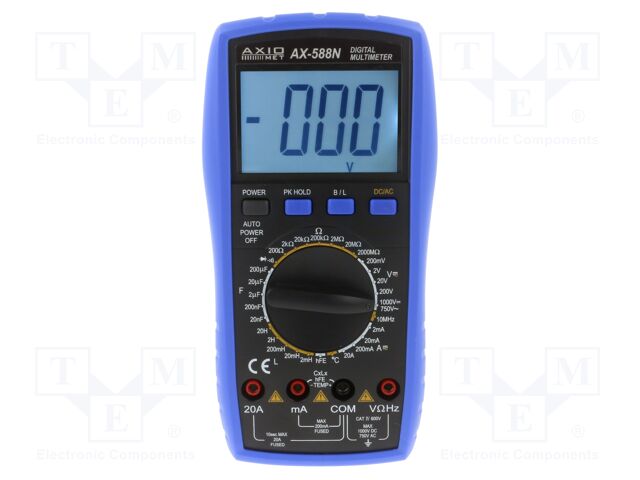

Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit; VDC accuracy: ±(0.5%+3digit)
Type of meter: digital multimeter
Measurement: AC current; capacitance; DC current; frequency; resistance; temperature; transistors' gain h_FE
Kind of display used: LCD
Display parameters: 3,5 digit
DC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 0.1...200mV; 2V; 20V; 200V; 750V
AC voltage measuring accuracy: ±(0.8% + 5 digit)
Bandwidth for AC voltage measurements: 40Hz...100Hz @ ≤750V; 40Hz...400Hz @ ≤200V
DC current measuring range: 1µA...2mA; 20mA; 200mA; 20A
DC current measuring accuracy: ±(0.8% + 3 digit)
AC current measuring range: 1µA...2mA; 20mA; 200mA; 20A
AC current measuring accuracy: ±(1% + 5 digit)
Bandwidth for AC current measurements: 40...200Hz
Resistance measuring range: 100mΩ...200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 2GΩ
Capacitance measuring range: 10pF...20nF; 2µF; 20µF; 200µF
Capacitance measuring accuracy: ±(2.5%+ 20 digit)
Frequency measuring range: 1...2kHz; 20kHz; 200kHz; 2MHz; 10MHz
Frequency measuring accuracy: ±(0.5%+4 digit)
Temperature measuring range: -40...1000°C
Temperature measurement accuracy: ±(1% + 4 digit)
Resistance measuring accuracy: ±(0.8%+3 digit)
Continuity test: acoustic indication; <70Ω
Weight with battery: 400g
Power supply: battery 6F22 9V x1
Standard equipment: adapter for capacitance and transistors' gain (hFE) measurement; drop-like K-type probe with banana clips 4mm TP-09; test leads
Conform to the norm: CAT III 1000V; EN 61010
Measuring instrument features: automatic power-off; enhanced range of resistance measurement to 2000MΩ; impact resistant holster; low battery indicator; manual ranging; PEAK HOLD function; universal
Inductance measuring range: 1µH...2mH; 20mH; 200mH; 2H; 20H
Diode test: 1mA @3V
Display height 1: 28mm
Body dimensions: 97x35x189mm
Inductance measuring accuracy: ±(2.5% + 20 digit)
Transistors' gain (hFE) test: 3V
Optional equipment: AX-58P soft cover

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; 3,75 digit (3999); 3x/s; -20÷1000°C
Measuring instrument features: automatic power-off; autoranging; HOLD function; impact resistant holster; low battery indicator; MIN/MAX function; overflow indicator; REL function
Power supply: battery LR03 AAA 1,5V x2
Battery/ rechargeable battery: none
Type of meter: digital multimeter
Interface: USB
Conform to the norm: CAT IV 600V; EN 61010
Kind of display used: LCD
Software: included
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
Kind of output connector: USB A plug
Bargraph: 41 segm. 30x/s
Temperature measuring range: -20...1000°C
Diode test: 1mA
Capacitance measuring range: 10pF...40nF; 400nF; 4µF; 40µF; 200µF
DC current measuring range: 1...400µA; 4mA; 40mA; 400mA; 4A; 10A
AC current measuring range: 1...400µA; 4mA; 40mA; 400mA; 4A; 10A
DC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV
AC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 750V
Frequency measuring range: 10mHz...10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 30MHz
Frequency measuring accuracy: ±(0.5%+4 digit)
Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
DC voltage measuring accuracy: ±(0.5% + 4 digit)
Resistance measuring accuracy: ±(0.8%+4 digit)
Dimensions (W x H x D): 93x191x48mm
DC current measuring accuracy: ±(1% + 10 digit)
Duty cycle factor: 0.1...99.9%
Temperature measurement accuracy: ±(1% + 5 digit)
AC voltage measuring accuracy: ±(0.8% + 10 digit)
AC current measuring accuracy: ±(1.5% + 10 digit)
Capacitance measuring accuracy: ±(3.5%+ 8 digit)
Weight with battery: 350g
Standard equipment: K-type temperature probe; test leads; USB cable
Sampling: 3x/s
Display parameters: 3,75 digit (3999)
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; USB; LCD; (5999); 3x/s; -20÷1000°C
Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; low battery indicator; MIN/MAX function
Power supply: battery LR03 AAA 1,5V x2
Type of meter: digital multimeter
Interface: USB
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Kind of display used: LCD
Software: included
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
Bargraph: yes
Temperature measuring range: -20...1000°C
Diode test: 1mA @3V
Capacitance measuring range: 10pF...40nF; 400nF; 4µF; 40µF; 200µF
DC current measuring range: 10µA...60mA; 600mA; 6A; 10A
AC current measuring range: 10µA...60mA; 600mA; 6A; 10A
DC voltage measuring range: 0.1...600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 1mV...6V; 60V; 600V; 750V
Frequency measuring range: 1mHz...10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz
Frequency measuring accuracy: ±(0.3%+2 digit)
Resistance measuring range: 100mΩ...600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
DC voltage measuring accuracy: ±(0.5% + 4 digit)
Resistance measuring accuracy: ±(0.8%+4 digit)
Dimensions (W x H x D): 91x185x49mm
DC current measuring accuracy: ±(1% + 10 digit)
AC voltage measuring accuracy: ±(1% + 6 digit)
AC current measuring accuracy: ±(1.5% + 10 digit)
Capacitance measuring accuracy: ±(3.5%+ 8 digit)
Weight with battery: 410g
Standard equipment: K-type temperature probe; test leads; USB cable
Sampling: 3x/s
Display parameters: (5999)
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; relative; resistance; temperature
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Continuity test: acoustic indication; <30Ω

Виробник: AXIOMET
Category: Benchtop digital multimeters
Description: Benchtop multimeter; LCD; 5 digits (80000); Sampling: 4x/s
Protection: anti-overload OPP
Measuring instrument features: AUTO HOLD; PEAK HOLD function; simultaneously displays 2 measurements
Type of meter: benchtop multimeter
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Software: compatible Windows 7; compatible Windows 10; compatible Windows 98; compatible Windows 2000; compatible Windows NT; Windows Vista compatible; Windows XP compatible
Kind of display used: LCD
Additional functions: square waveform generator
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
True effective value measurement: True RMS
Temperature measuring range measured by probe: -50...1372°C
Operating temperature: 0...50°C
Resistance measuring range: 800Ω; 8kΩ; 80kΩ; 800kΩ; 8MΩ; 80MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF
DC voltage measuring accuracy: ±(0.05% + 5 digit)
Frequency measuring accuracy: ±(0.05%+5 digit)
DC current measuring range: 80mA; 800mA; 8A; 20A
AC current measuring range: 80mA; 800mA; 8A; 20A
AC voltage measuring range: 80mV; 800mV; 8V; 80V; 750V
DC voltage measuring range: 80mV; 800mV; 8V; 80V; 800V; 1kV
Resistance measuring accuracy: ±(0.1%+5 digit)
DC current measuring accuracy: ±(0.2% + 10 digit)
Dimensions: 225x100x368mm
AC current measuring accuracy: ±(0.8% + 20 digit)
AC voltage measuring accuracy: ±(0.8% + 50 digit)
Temperature measurement accuracy: ±(2% + 2°C)
Capacitance measuring accuracy: ±(2.5%+ 50 digit)
Bargraph: 23 segm. 40x/s
Max. environment humidity: 75%
Frequency measuring range: 99999mHz; 999.99Hz; 9.9999kHz; 99.999kHz; 999.99kHz; 8MHz
Supply voltage: 100...240V AC
Standard equipment: drop-like K-type probe; mains cable; RS232 cable; test lead
Sampling: 4x/s
Display parameters: 5 digits (80000)
Interface: RS232
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Measurement: AC current; AC voltage; capacitance; continuity; dBm; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication; <60Ω

Виробник: AXIOMET
Category: Inspection Cameras, Boroscopes
Description: Probe: for inspection camera; Len: 1m; Probe dia: 9mm
Type of measuring probe: for inspection camera
Probe diameter: 9mm
Cable length: 1m
Related items: AX-B150; AX-B350

Виробник: AXIOMET
Category: Calibrators
Description: Spare part: motherboard
Type of spare part: motherboard
Related items: AX-C800

Виробник: AXIOMET
Category: Test hooks
Description: Clip-on probe; with puncturing point; 10A; black; 4mm; Ø: 4mm
Contact material: brass/steel
Conform to the norm: CAT III 1000V; EN 61010
Type of test accessories: clip-on probe
Insulator material: polyamide
Kind of clip-on probe: with puncturing point
Socket size: 4mm
Max. wire diameter: 4mm
Overall length: 136mm
Current rating: 10A
Colour: black

Виробник: AXIOMET
Category: Test hooks
Description: Clip-on probe; with puncturing point; 10A; red; 4mm; Ø: 4mm
Contact material: brass/steel
Conform to the norm: CAT III 1000V; EN 61010
Type of test accessories: clip-on probe
Insulator material: polyamide
Kind of clip-on probe: with puncturing point
Socket size: 4mm
Max. wire diameter: 4mm
Overall length: 136mm
Current rating: 10A
Colour: red

Виробник: AXIOMET
Category: Test hooks
Description: Clip-on probe; with puncturing point; 10A; black; 4mm
Contact material: brass/steel
Conform to the norm: CAT III 1000V; EN 61010
Type of test accessories: clip-on probe
Contact plating: nickel plated
Insulator material: polyamide
Kind of clip-on probe: with puncturing point
Socket size: 4mm
Grip capacity: max. 6mm
Overall length: 159mm
Current rating: 10A
Colour: black

Виробник: AXIOMET
Category: Test hooks
Description: Clip-on probe; with puncturing point; 10A; red; 4mm
Contact material: brass/steel
Conform to the norm: CAT III 1000V; EN 61010
Type of test accessories: clip-on probe
Contact plating: nickel plated
Insulator material: polyamide
Kind of clip-on probe: with puncturing point
Socket size: 4mm
Grip capacity: max. 6mm
Overall length: 159mm
Current rating: 10A
Colour: red

Виробник: AXIOMET
Category: Probes - Test Plugs
Description: Measuring tip; 10A; black; Tip diameter: 2mm; Socket size: 4mm
Type of test accessories: measuring tip
Current rating: 10A
Colour: black
Tip diameter: 2mm
Socket size: 4mm
Conform to the norm: CAT II 1000V; EN 61010
Overall length: 103mm
Insulator material: polyamide

Виробник: AXIOMET
Category: Probes - Test Plugs
Description: Measuring tip; 10A; red; Tip diameter: 2mm; Socket size: 4mm
Type of test accessories: measuring tip
Current rating: 10A
Colour: red
Tip diameter: 2mm
Socket size: 4mm
Conform to the norm: CAT II 1000V; EN 61010
Overall length: 103mm
Insulator material: polyamide

Виробник: AXIOMET
Category: 2mm Crocodile Clips
Description: Crocodile clip; 10A; 60VDC; black; Overall len: 41.5mm
Type of test accessories: crocodile clip
Current rating: 10A
Grip capacity: max. 8.5mm
Overall length: 41.5mm
Colour: black
Contact material: brass
Insulator material: polyamide
Socket size: 2mm
Rated voltage: 60V DC
Contact plating: nickel plated

Виробник: AXIOMET
Category: 2mm Crocodile Clips
Description: Crocodile clip; 10A; 60VDC; blue; Overall len: 41.5mm
Type of test accessories: crocodile clip
Current rating: 10A
Grip capacity: max. 8.5mm
Overall length: 41.5mm
Colour: blue
Contact material: brass
Insulator material: polyamide
Socket size: 2mm
Rated voltage: 60V DC
Contact plating: nickel plated

Виробник: AXIOMET
Category: 2mm Crocodile Clips
Description: Crocodile clip; 10A; 60VDC; green; Overall len: 41.5mm
Type of test accessories: crocodile clip
Current rating: 10A
Rated voltage: 60V DC
Colour: green
Overall length: 41.5mm
Grip capacity: max. 8.5mm
Contact plating: nickel plated
Contact material: brass
Insulator material: polyamide
Socket size: 2mm

Виробник: AXIOMET
Category: 2mm Crocodile Clips
Description: Crocodile clip; 10A; 60VDC; red; Overall len: 41.5mm
Type of test accessories: crocodile clip
Current rating: 10A
Grip capacity: max. 8.5mm
Overall length: 41.5mm
Colour: red
Contact material: brass
Insulator material: polyamide
Socket size: 2mm
Rated voltage: 60V DC
Contact plating: nickel plated

Виробник: AXIOMET
Category: 2mm Crocodile Clips
Description: Crocodile clip; 10A; 60VDC; yellow; Overall len: 41.5mm
Type of test accessories: crocodile clip
Current rating: 10A
Rated voltage: 60V DC
Colour: yellow
Overall length: 41.5mm
Grip capacity: max. 8.5mm
Contact plating: nickel plated
Contact material: brass
Insulator material: polyamide
Socket size: 2mm

Виробник: AXIOMET
Category: 4mm Crocodile Clips
Description: Crocodile clip; 15A; black; Grip capac: max.12mm; Socket size: 4mm
Type of test accessories: crocodile clip
Current rating: 15A
Grip capacity: max. 12mm
Overall length: 56mm
Colour: black
Contact material: brass
Insulator material: polyamide
Socket size: 4mm
Conform to the norm: CAT II 300V; EN 61010
Contact plating: nickel plated

Виробник: AXIOMET
Category: 4mm Crocodile Clips
Description: Crocodile clip; 15A; blue; Grip capac: max.12mm; Socket size: 4mm
Type of test accessories: crocodile clip
Current rating: 15A
Grip capacity: max. 12mm
Overall length: 56mm
Colour: blue
Contact material: brass
Insulator material: polyamide
Socket size: 4mm
Conform to the norm: CAT II 300V; EN 61010
Contact plating: nickel plated

Виробник: AXIOMET
Category: 4mm Crocodile Clips
Description: Crocodile clip; 15A; red; Grip capac: max.12mm; Socket size: 4mm
Type of test accessories: crocodile clip
Current rating: 15A
Grip capacity: max. 12mm
Overall length: 56mm
Colour: red
Contact material: brass
Insulator material: polyamide
Socket size: 4mm
Conform to the norm: CAT II 300V; EN 61010
Contact plating: nickel plated

Виробник: AXIOMET
Category: Coating Thickness Testers
Description: Tester: coating thickness; Range: 10÷1250um; 80x42x24mm
Type of tester: coating thickness
Measuring range: 10...1250µm
Measuring instrument features: automatic power-off; HOLD function; low battery indicator
Power supply: battery CR2032 3V x1
Body dimensions: 80x42x24mm
Measurement accuracy: ±2% ±0,02mm

Виробник: AXIOMET
Category: Generators and Frequency Meters
Description: Laboratory generator: arbitrary, function; 15MHz; LCD TFT 3,5"
Type of laboratory generator: arbitrary, function
Maximum waveform frequency: 15MHz
Waveform frequency range: 1µHz...1MHz (other waveforms); 1µHz...1MHz (ramp waveform); 1µHz...1MHz (triangle waveform); 1µHz...5MHz (rectangular waveform); 1µHz...15MHz (sinus waveform)
Kind of display used: LCD TFT 3,5"
Number of channels: 2
Memory record length: 1024pts
Vertical resolution: 8bit
Dimensions: 415x295x195mm
Interface: RS232
Kind of modulation: ASK; FM; FSK; PSK
Waveforms: arbitrary; ramp; rectangular; sinus; triangle
Sampling: 100Msps
Additional functions: frequency meter
Standard equipment: BNC cable; mains cable; RS232 cable; test lead
Software: included
Connectors for the country: Europe
Sweep mode: period: 100m...900s
Amplitude: value of amplitude Vpp 0,2...2V - actual offset value is 10 % of set value; value of amplitude Vpp<0,2V - actual offset value is 1% of set value; value of amplitude Vpp>2V - actual offset value is set value
Supply voltage: 100...240V AC
Protection: against reverse polarity; anti-overload OPP; anti-overvoltage OVP; short circuit protection SCP
Measuring instrument features: 32 built-in waveforms
Output parameters: impedance: 50Ω

Виробник: AXIOMET
Category: Digital Oscilloscopes
Description: Oscilloscope: digital; Ch: 2; 50MHz; 500Msps (in real time); 7ns
Type of oscilloscope: digital
Band: 50MHz
Vertical resolution: 8bit
Kind of display used: LCD TFT 7"
Number of channels: 2
Sampling: 500Msps (in real time)
Memory record length: 32kpts
Time base: 5n...50s/div
Display resolution: 800x480
Trigger: falling-edge; impulse width; risetime; rising-edge; video signal
Input coupling: AC, DC, GND
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal; supply voltage source
Rise time: 7ns
Input sensitivity: 2mV/div...10V/div
Interface: LAN; USB
Input impedance: 1MΩ/18pF
Measuring instrument features: 20 sets memory; automatic measurement of many parameters; digital filter function; displays input waveform and FFT on divided screen; integrated FFT with algorithm selection: Hamming, Hanning, Blackman, Rectangular; mathematical functions: addition, subtraction, division, multiplication and FFT; Pass/Fail function
Standard equipment: mains cable; oscilloscope probe (1 per channel); USB cable
Connectors for the country: Europe
Supply voltage 400Hz: 100...120V AC
Max. input voltage: 400V
Trigger coupling: AC; DC; highpass; lowpass
Body dimensions: 323.1x135.6x157mm
Supply voltage: 100...240V AC

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,75 digit (3999); 3x/s; Resol: 1°C
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 3,75 digit (3999)
DC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.8% + 3 digit)
AC voltage measuring range: 1mV...4V; 40V; 400V; 750V
AC voltage measuring accuracy: ±(1% + 3 digit)
DC current measuring range: 1...4000µA; 400mA; 10A
DC current measuring accuracy: ±(1.2% + 3 digit)
AC current measuring range: 1...4000µA; 400mA; 10A
AC current measuring accuracy: ±(1.5% + 5 digit)
Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 1pF...4nF; 40nF; 400nF; 4µF; 40µF; 200µF
Capacitance measuring accuracy: ±(3%+ 5 digit)
Frequency measuring range: 1mHz...10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 200kHz
Frequency measuring accuracy: ±(0.1%+1 digit)
Temperature measuring range: -20...1000°C
Temperature measurement accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(1.2%+3 digit)
Temperature measurement resolution: 1°C
Diode test: 1mA @1.5V
Continuity test: acoustic indication; <40Ω
Power supply: battery GR03 AAA 1,5V x3
Standard equipment: test leads
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 82x156x29mm
Measuring instrument features: auto and manual ranging; automatic power-off; built-in AC voltage detector; contactless voltage detector; ergonomic enclosure adapted to the palm shape; HOLD function; indicates incorrect connection of test leads; low battery indicator; REL function
Battery/ rechargeable battery: battery GR03 AAA 1,5V x3
Bandwidth for AC current measurements: 40...400Hz
Bandwidth for AC voltage measurements: 40...400Hz
Sampling: 3x/s
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
Illumination: yes
Display height 1: 18mm
Pollution degree: 2

Виробник: AXIOMET
Category: pH Meters and Testers
Description: Meter: pH; LCD; 3,5÷9,0pH; Dim: 122x63x36mm; Unit: °C,°F
Kind of display used: LCD
Type of meter: pH
Measuring unit: °C; °F
Power supply: battery 6F22 9V x1
Measurement: soil humidity; soil pH; soil temperature
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes
Temperature measuring range measured by probe: -9...50°C
Measuring instrument features: 5 level sail moisture rate; 9 level sunlight rate; automatic power-off
Dimensions: 122x63x36mm
Temperature measuring accuracy (measurement with probe): ±1°C
Measuring range: 3,5...9,0pH
Measurement accuracy: 0,5pH

Виробник: AXIOMET
Category: Indicators, Voltage & Continuity Testers
Description: Tester: electrical; LEDs; VAC: 6V,12V,24V,50V,120V,230V,400V
Type of tester: electrical
IP rating: IP64
Kind of display used: LEDs
Measurement: AC voltage; DC voltage
Bandwidth for AC voltage measurements: 0...60Hz
Body dimensions: 240x78x40mm
DC voltage measuring range: 6V; 12V; 24V; 50V; 120V; 230V; 400V
AC voltage measuring range: 6V; 12V; 24V; 50V; 120V; 230V; 400V
Measuring instrument features: low impedance test; polarization indicator
RCD test: 30mA
Weight without batteries: 237g

Виробник: AXIOMET
Category: Indicators, Voltage & Continuity Testers
Description: Tester: electrical; LCD; 3,5 digit (1999); Sampling: 3x/s; 0÷60Hz
Type of tester: electrical
IP rating: IP64
Kind of display used: LCD
Conform to the norm: CAT III 1000V; EN 61010
Standard equipment: case; test leads
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Power supply: battery LR03 AAA 1,5V x2
Additional functions: torch
Measurement: AC voltage; DC voltage
Bargraph: yes
Illumination: yes
Bandwidth for AC voltage measurements: 0...60Hz
Input current: <2.5mA @ 690V DC; <3mA @ 690V AC
Body dimensions: 240x78x40mm
DC voltage measuring accuracy: ±(1% + 3 digit)
AC voltage measuring accuracy: ±(1.5% + 5 digit)
Continuity test: acoustic indication; <300kΩ
DC voltage measuring range: 6V; 12V; 24V; 50V; 120V; 230V; 400V; 690V
AC voltage measuring range: 6V; 12V; 24V; 50V; 120V; 230V; 400V; 690V
Measuring instrument features: AC/DC voltage indicator; indicates phase sequence; low battery indicator; low impedance test; polarization indicator
Weight without batteries: 237g
Sampling: 3x/s
Display parameters: 3,5 digit (1999)

Виробник: AXIOMET
Category: Test Leads - Sets
Description: Test leads; Inom: 10A; Len: 1.2m; test leads x2; red and black
Kit contents: test leads x2
Optional equipment: AX-CR-4PM-B crocodile clip; AX-CR-4PM-BL crocodile clip; AX-CR-4PM-G crocodile clip; AX-CR-4PM-R crocodile clip; AX-CR-4PM-Y crocodile clip; AX-CR-02-SET crocodile clip; clip-on probe AX-CP-03-B; clip-on probe AX-CP-03-R; clip-on probe AX-CP-04-B; clip-on probe AX-CP-04-R; clip-on probe AX-CP-07-B; clip-on probe AX-CP-07-R; test probes AX-CP-01-SET; test probes AX-CP-02-B
Colour: red and black
Test accessories version: cap protecting against short circuits
Conform to the norm: CAT III 1000V; EN 61010
Test accessories features: pointed tip that can be plugged to 4mm socket
Wire insulation material: PVC
Type of test accessories: test leads
Cable length: 1.2m
Current rating: 10A
Test lead configuration: angular banana plug 4mm x2; probe tip x2

Виробник: AXIOMET
Category: One Channel Power Supplies
Description: Laboratory power supply: standard; single-channel; 0÷120VDC
Type of laboratory power supply: standard
Kind of power supply: single-channel
Number of channels: 1
Output current: 0...1A
Supply voltage: 230V AC
Voltage stabilisation: ≤0.01%+ 3mV
Current stabilisation: ≤0.02%+ 6mA
Dimensions: 270x190x130mm
Voltage (regulated) ripple and noise: ≤0.5mVrms
Connectors for the country: Europe
Output voltage: 0...120V DC
Measuring instrument features: simultaneous voltage and current readout; smart cooling control; voltage and current stepless adjustment
Standard equipment: mains cable; test leads
кількість в упаковці: 1 шт

Виробник: AXIOMET
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,5 digit (3999); 3x/s; True RMS AC
Type of meter: digital multimeter
Kind of display used: LCD
Display parameters: 3,5 digit (3999)
DC current measuring range: 0.4mA; 4mA; 40mA; 400mA; 10A
AC current measuring range: 0.1...400µA; 4mA; 40mA; 400mA; 10A
Measuring instrument features: auto and manual ranging; automatic power-off; HOLD function; low battery indicator; MIN/MAX/REL function; overflow indicator
DC current measuring accuracy: ±(1.5% + 3 digit)
AC current measuring accuracy: ±(1.5% + 3 digit)
DC voltage measuring range: 0.1...400mV; 4V; 40V; 400V; 1kV
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 1mV...4V; 40V; 400V; 750V
AC voltage measuring accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(0.5%+2 digit)
Resistance measuring range: 100mΩ...400Ω; 4kΩ; 40kΩ; 400kΩ; 4MΩ; 40MΩ
Capacitance measuring range: 10pF...10nF; 100nF; 1µF; 10µF; 100µF; 1mF
Capacitance measuring accuracy: ±(2%+ 5 digit)
Temperature measuring range: -20...1000°C
Temperature measurement accuracy: ±(1% + 5 digit)
Continuity test: acoustic indication; <40Ω
Power supply: battery LR6 AA 1,5V x2
Standard equipment: K-type temperature probe; test leads
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; resistance; temperature
Conform to the norm: CAT IV 600V; EN 61010
Battery/ rechargeable battery: none
Sampling: 3x/s
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Optional equipment: test leads AX-TL-4B1-B; test leads AX-TL-4B1-BL; test leads AX-TL-4B1-R; test leads AX-TL-BNC-4BP2; test leads AX-TLP-001; test leads AX-TLP-001T; test leads AX-TLP-002; test leads AX-TLP-003; test leads AX-TLS-001B; test leads AX-TLS-002B; test leads AX-TLS-003A; test leads AX-TLS-004A; test leads AX-TLS-005A; test leads AX-TLS-007S; test leads PPOM-14; test tweezers AX-TLP-TW-01
True effective value measurement: True RMS AC
Diode test: 0.5mA @1.5V
Dimensions (W x H x D): 91x180x45mm
кількість в упаковці: 1 шт

Виробник: AXIOMET

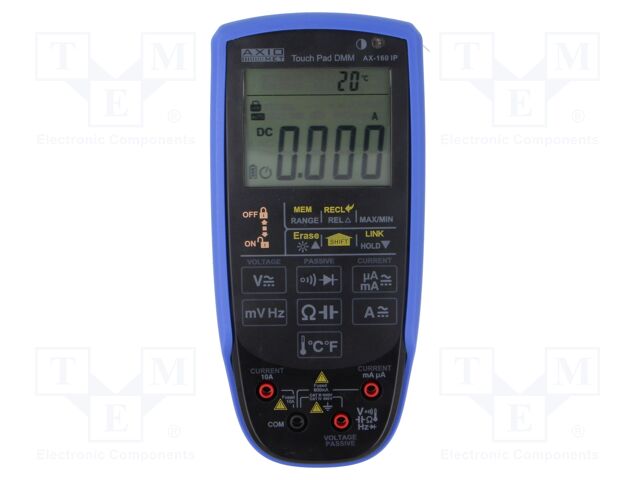

AX-160IP Portable digital multimeters
