Продукція > CHAUVIN ARNOUX > Всі товари виробника CHAUVIN ARNOUX (301) > Сторінка 1 з 6

Виробник: CHAUVIN ARNOUX
Category: Accessories - Others
Description: Earthing resistance measurement kit
Type of test accessories: earthing resistance measurement kit
Test accessories features: for 3-wired earthing resistance measurements
Standard equipment: 10m long test lead (green); 100m long test lead (blue); 100m long test lead (red); case; ground earth stake (2pcs.); hammer; spade connectors x5
Related items: CA-6116N

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 170mm; I AC: 100mA÷10kA; Len: 3m
Type of test accessories: AC current clamp adapter
Related items: CA-8220; CA-8336; CA-PEL103
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
AC current measuring range: 100mA...10kA
Max. diameter of measured cable: 170mm
Probe length: 800mm
Cable length: 3m

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 170mm; I AC: 100mA÷10kA; Len: 3m
Type of test accessories: AC current clamp adapter
Related items: CA-8220; CA-8336; CA-PEL103
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
AC current measuring range: 100mA...10kA
Max. diameter of measured cable: 170mm
Probe length: 800mm
Cable length: 3m
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 125mm; Probe l: 800mm; IP54
Type of test accessories: AC current clamp adapter
Max. diameter of measured cable: 125mm
AC current measuring range: 500mA...30A; 500mA...300A; 500mA...3kA
Output signal: 1mV/1A; 10mV/1A; 100mV/1A
Probe length: 800mm
IP rating: IP54
Power supply: battery AA 1,5V x2
Measurement: AC current
Conform to the norm: CAT IV 1000V; EN 61010
Kind of connector: BNC x3

Виробник: CHAUVIN ARNOUX
Category: Tachometers
Description: Tachometer; LCD; 60÷100000rpm; 216x72x47mm; IP51; Illumin: yes
Type of meter: tachometer
Kind of display used: LCD
Measuring range: 60...100000rpm
Body dimensions: 216x72x47mm
Power supply: battery 9V x1
Measuring instrument features: MIN/MAX function; programmable alarm thresholds
Standard equipment: FRB F adapter; hard case; reflective tape; user's manual
Measurement: rpm velocity (mechanical); rpm velocity (optical)
IP rating: IP51
Battery/ rechargeable battery: battery 9V x1
Illumination: yes
Bargraph: yes; 42 segm.

Виробник: CHAUVIN ARNOUX
Category: Temperature and Humidity Loggers
Description: Data logger; temperature; IP54; Display: LCD; ±(0.2%+0.6°C); Ch: 1
Type of meter: data logger
Measurement: temperature
IP rating: IP54
Kind of display used: LCD
Temperature measurement accuracy: ±(0.2% + 0.6°C)
Temperature measuring range with N-type thermocouple: -200...1300°C
Temperature measuring range (with R-type thermocouple): 0...1767°C
Temperature measuring range (with S-type thermocouple): 0...1767°C
Temperature measuring range (with E-type thermocouple): -150...950°C
Temperature measuring range: -250...1767°C
Temperature measuring range (with K-type thermocouple): -200...1372°C
Temperature measuring range (with J-type thermocouple): -210...1200°C
Temperature measuring range (with T-type thermocouple): -250...400°C
Standard equipment: case; USB cable
Interface: Bluetooth; USB
Power supply: battery LR6 AA 1,5V x3
Dimensions: 150x72x32mm
Kind of temperature sensor: thermocouple E; thermocouple J; thermocouple K; thermocouple N; thermocouple R; thermocouple S; thermocouple T
Operating temperature: -10...60°C
Number of channels: 1
Producer guarantee (months): 24
Measuring instrument features: automatic power-off; HOLD function; long operating time up to 3 years (at 15-minute measurement interval); MIN/MAX function; programmable alarm thresholds
Battery/ rechargeable battery: battery LR6 AA 1,5V x3
Measurement memory: 100000
Software: dedicated mobile app
Supported formats: EXCEL
Illumination: yes

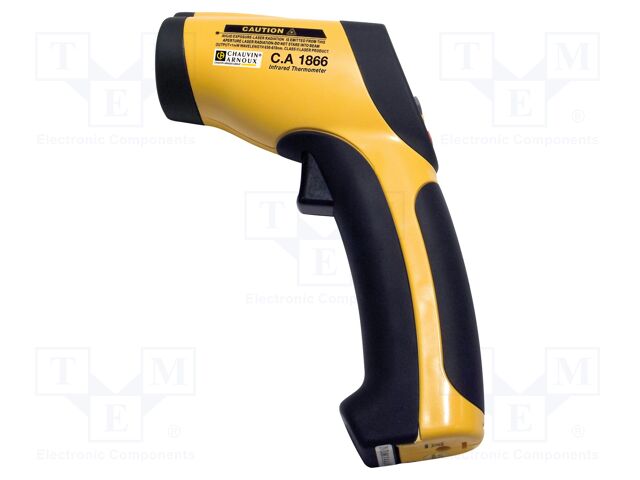

Виробник: CHAUVIN ARNOUX
Category: Pirometers
Description: Infrared thermometer; LCD; -50÷1000°C; Accur: ±2°C; ±1.5%; ε: 0,1÷1
Type of meter: infrared thermometer
Kind of display used: LCD
Non-contact temperature measuring range: -50...1000°C
Temperature measurement accuracy: ±1.5%; ±2°C
Non-contact temperature measuring resolution: 0.1°C
Optical resolution: 50:1
Emissivity value: 0,1...1
Measurement: non-contact temeprature (IR)
Measuring unit: °C; °F
Dimensions: 230x100x56mm
Power supply: battery 9V x1
Measuring instrument features: adjustable emissivity; automatic power-off; HOLD function; laser sight; low battery indicator; MIN/MAX/MEDIUM function
Battery/ rechargeable battery: battery 9V x1
Illumination: yes

Виробник: CHAUVIN ARNOUX
Category: Infrared Cameras - Others
Description: Infrared camera; LCD 2,8"; 80x80; 9Hz; -20÷250°C; Focus: automatic
Resistance to: fall from 2m height
Software: included
Type of meter: infrared camera
IP rating: IP54
Kind of display used: LCD 2,8"
Battery/ rechargeable battery: rechargeable battery Ni-MH x4
Power supply: rechargeable battery Ni-MH x4
Temperature measuring range: -20...250°C
Three-dimensional resolution: 4.4mrad
Body dimensions: 225x125x83mm
Thermal sensitivity (NETD): ≤0.08 @ 30°C
Temperature measurement accuracy: ±2%; ±2°C
Refresh rate: 9Hz
Field of observation: 20° horizontal x 20° vertical
Camera resolution: 80x80
Weight with battery: 700g
Emissivity value: 0,05...1
Focusing: automatic
Interface: Bluetooth; USB
Measuring instrument features: Bluetooth communication with clamp meters and multimeters; socket for mounting on a stand; temperature markers (min, max); thermal or real image; voice annotation
Standard equipment: Bluetooth earphones; hard case; mains battery charger; microSDHC memory card; USB cable; user's manual
Related items: CA-F407; CA-F607

Виробник: CHAUVIN ARNOUX
Category: Infrared Cameras - Others
Description: Infrared camera; LCD 2,8"; 160x120; 9Hz; -20÷250°C; IP54; 4.1mrad
Resistance to: fall from 2m height
Software: included
Type of meter: infrared camera
IP rating: IP54
Kind of display used: LCD 2,8"
Battery/ rechargeable battery: rechargeable battery Ni-MH x4
Power supply: rechargeable battery Ni-MH x4
Temperature measuring range: -20...250°C
Three-dimensional resolution: 4.1mrad
Body dimensions: 225x125x83mm
Thermal sensitivity (NETD): ≤0.08 @ 30°C
Temperature measurement accuracy: ±2%; ±2°C
Refresh rate: 9Hz
Field of observation: 38° horizontal x 28° vertical
Camera resolution: 160x120
Weight with battery: 700g
Emissivity value: 0,05...1
Focusing: focus free
Interface: Bluetooth; USB
Measuring instrument features: Bluetooth communication with clamp meters and multimeters; socket for mounting on a stand; temperature markers (min, max); thermal or real image; voice annotation
Standard equipment: Bluetooth earphones; hard case; mains battery charger; microSDHC memory card; USB cable; user's manual
Related items: CA-F407; CA-F607

Виробник: CHAUVIN ARNOUX
Category: Analog Multimeters
Description: Analogue multimeter; Features: blown fuse indicator; IP40
Type of meter: analogue multimeter
Measuring instrument features: blown fuse indicator
Battery/ rechargeable battery: battery LR6 AA 1,5V x1
Power supply: battery LR6 AA 1,5V x1
Standard equipment: test leads; test probes
Conform to the norm: CAT III 600V; EN 61010
IP rating: IP40
DC current measuring range: 50µA; 5mA; 50mA; 500mA; 5A
AC current measuring range: 5mA; 50mA; 0.5A; 5A
Body dimensions: 56x105x160mm
DC voltage measuring range: 100mV; 1V; 3V; 10V; 30V; 100V; 300V; 1kV
DC voltage measuring accuracy: ±1.5%
AC current measuring accuracy: ±2.5%
DC current measuring accuracy: ±2.5%
AC voltage measuring accuracy: ±2.5%
AC voltage measuring range: 10V; 30V; 100V; 300V; 1kV
Resistance measuring accuracy: ±10%
Producer guarantee (months): 36
Input impedance for AC voltage: 6.32kΩ/V
Input impedance for DC voltage measurement: 20kΩ/V
Resistance measuring range: 5...1MΩ
Measurement: AC current; AC voltage; DC current; DC voltage; resistance
Continuity test: acoustic indication; <50Ω

Виробник: CHAUVIN ARNOUX
Category: Analog Multimeters
Description: Analogue multimeter; VDC: 100mV,1V,3V,10V,30V,100V,300V,1kV
IP rating: IP53
Conform to the norm: CAT III 600V; EN 61010
Standard equipment: test leads; test probes
DC current measuring range: 50µA; 150µA; 1.5mA; 15mA; 150mA; 1.5A; 15A
AC current measuring range: 1.5mA; 15mA; 150mA; 1.5A; 15A
Body dimensions: 56x105x160mm
DC voltage measuring range: 100mV; 1V; 3V; 10V; 30V; 100V; 300V; 1kV
DC voltage measuring accuracy: ±1.5%
AC voltage measuring accuracy: ±2.5%
DC current measuring accuracy: ±2.5%
AC current measuring accuracy: ±2.5%
AC voltage measuring range: 10V; 30V; 100V; 300V; 1kV
Resistance measuring accuracy: ±10%
Producer guarantee (months): 36
Input impedance for AC voltage: 6.32kΩ/V
Input impedance for DC voltage measurement: 20kΩ/V
Resistance measuring range: 5...1MΩ
Measurement: AC current; AC voltage; DC current; DC voltage; resistance
Continuity test: acoustic indication; <50Ω
Type of meter: analogue multimeter
Measuring instrument features: automatic calibration; blown fuse indicator
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: battery 6F22 9V x1

Виробник: CHAUVIN ARNOUX
Category: Analog Multimeters
Description: Analogue multimeter; VDC: 100mV,1V,3V,10V,30V,100V,300V,1kV
Type of meter: analogue multimeter
DC voltage measuring range: 100mV; 1V; 3V; 10V; 30V; 100V; 300V; 1kV
DC voltage measuring accuracy: ±1.5%
AC voltage measuring range: 10V; 30V; 100V; 300V; 1kV
AC voltage measuring accuracy: ±2.5%
DC current measuring range: 50µA; 1mA; 10mA; 100mA; 1A; 10A
DC current measuring accuracy: ±2.5%
AC current measuring range: 3A; 10A; 30A; 100A; 240A
AC current measuring accuracy: ±2.5%
Resistance measuring range: 5...1MΩ
Resistance measuring accuracy: ±10%
Continuity test: acoustic indication; <50Ω
Measurement: AC current (with current clamps); AC voltage; DC current; DC voltage; resistance
Measuring instrument features: automatic calibration; blown fuse indicator
Producer guarantee (months): 36
Input impedance for AC voltage: 6.32kΩ/V
Input impedance for DC voltage measurement: 20kΩ/V
Standard equipment: CA-MN89 - current clamp; holster; test leads
Power supply: battery 6F22 9V x1
Conform to the norm: CAT III 600V; EN 61010
IP rating: IP53
Body dimensions: 56x105x160mm

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); Bargraph: 61segm; 5x/s; True RMS
Resistance to: fall from 1m height
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication
Measuring instrument features: auto and manual ranging; automatic calibration; automatic power-off; HOLD function; low input impedance function (LoZ); low-pass filter; MIN/MAX function
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: battery 6F22 9V x1
Standard equipment: drop-like K-type probe; test leads; test probes
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Type of meter: digital multimeter
Test: diodes
IP rating: IP54
Kind of display used: LCD
Illumination: yes
True effective value measurement: True RMS
Temperature measuring range (with K-type thermocouple): -59.6...1200°C
Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
AC current measuring range: 6A; 10A
DC current measuring range: 6A; 10A; 20A < 30s
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
Dimensions (W x H x D): 90x190x45mm
Temperature measurement accuracy: ±(0.5% + 2°C)
Frequency measuring accuracy: ±(0.1%+2 digit)
Frequency measuring range: 100mHz...600Hz; 6kHz; 60kHz
DC voltage measuring accuracy: ±(0.2% + 2 digit)
Resistance measuring accuracy: ±(1%+2 digit)
DC current measuring accuracy: ±(0.8% + 2 digit)
AC current measuring accuracy: ±(1% + 3 digit)
Capacitance measuring accuracy: ±(1%+ 5 digit)
AC voltage measuring accuracy: ±(1.2% + 3 digit)
Producer guarantee (months): 36
Bandwidth for AC voltage measurements: 40...400Hz; 400Hz...3kHz
Bandwidth for AC current measurements: 40Hz...1kHz
Bargraph: 61 segm.
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Sampling: 5x/s
Display parameters: (6000)

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); Bargraph: 61segm; 5x/s; True RMS
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.09% + 2 digit)
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC current measuring range: 6mA; 60mA; 600mA; 6A; 10A; 20A < 30s
DC current measuring accuracy: ±(0.8% + 2 digit)
AC current measuring range: 6mA; 60mA; 600mA; 6A; 10A; (20A <30s)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 100mHz...600Hz; 6kHz; 60kHz
Frequency measuring accuracy: ±(0.1%+2 digit)
Temperature measurement accuracy: ±(0.5% + 2°C)
Temperature measuring range (with K-type thermocouple): -59.6...1200°C
Resistance measuring accuracy: ±(1%+2 digit)
Test: diodes
Continuity test: acoustic indication
IP rating: IP54
Power supply: battery 6F22 9V x1
Standard equipment: case; drop-like K-type probe; MultiFIX mounting system; test leads; test probes
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 90x190x45mm
Producer guarantee (months): 36
Measuring instrument features: auto and manual ranging; automatic calibration; automatic power-off; HOLD function; ionization current measurement; low input impedance function (LoZ); low-pass filter; MIN/MAX/DIF/AVG function; MIN/MAX function; PEAK function; selection of AC or AC+DC measurement
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes
Bargraph: 61 segm.
AC current measuring accuracy: ±(1% + 3 digit)
Resistance to: fall from 1m height
Sampling: 5x/s
Bandwidth for AC voltage measurements: 40...400Hz; 400Hz...10kHz
Bandwidth for AC current measurements: 40Hz...1kHz
AC voltage measuring accuracy: ±(1% + 3 digit)

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; USB; colour,LCD; (100000); 5x/s; True RMS
Type of meter: digital multimeter
Interface: USB
Measurement: AC current; AC voltage; capacitance; continuity; dB; dBm; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: colour; LCD
Display parameters: (100000)
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0.03% + 8 digit)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; 20A < 30s
DC current measuring accuracy: ±(0.08% + 8 digit)
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; (20A <30s)
True effective value measurement: True RMS
Resistance measuring range: 1Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Frequency measuring range: 10...100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 5MHz
Temperature measuring range: -200...800°C
Temperature measurement accuracy: ±0.1%
Temperature measuring range (with K-type thermocouple): -40...1200°C
Resistance measuring accuracy: ±(0.07%+8 digit)
Test: diodes
Continuity test: acoustic indication
IP rating: IP67
Power supply: rechargeable battery Ni-MH AA 1,2V x4
Standard equipment: case; mains battery charger; test leads; test probes; USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX801515; EX871515; EX872502; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 90x169x47.1mm
Producer guarantee (months): 36
Kind of temperature sensor: Pt100; Pt1000; thermocouple J; thermocouple K
Measuring instrument features: auto and manual ranging; AUTO HOLD; automatic power-off; HOLD function; low input impedance function (LoZ); MIN/MAX/DIF/AVG function; PEAK function; selection of AC or AC+DC measurement
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x4
Software: included
Illumination: yes
Sampling: 5x/s
Event memory: 10000

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,USB; colour,LCD; (100000); 5x/s
Type of meter: digital multimeter
Interface: Bluetooth; USB
Measurement: AC current; AC voltage; capacitance; continuity; dB; dBm; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: colour; LCD
Display parameters: (100000)
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0.03% + 8 digit)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; 20A < 30s
DC current measuring accuracy: ±(0.08% + 8 digit)
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; (20A <30s)
True effective value measurement: True RMS
Resistance measuring range: 1Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Frequency measuring range: 10...100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 5MHz
Temperature measuring range: -200...800°C
Temperature measurement accuracy: ±0.1%
Temperature measuring range (with K-type thermocouple): -40...1200°C
Resistance measuring accuracy: ±(0.07%+8 digit)
Test: diodes
Continuity test: acoustic indication
IP rating: IP67
Power supply: rechargeable battery Ni-MH AA 1,2V x4
Standard equipment: case; mains battery charger; test leads; test probes; USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX801515; EX871515; EX872502; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 90x169x47.1mm
Producer guarantee (months): 36
Kind of temperature sensor: Pt100; Pt1000; thermocouple J; thermocouple K
Measuring instrument features: auto and manual ranging; AUTO HOLD; automatic power-off; HOLD function; low input impedance function (LoZ); MIN/MAX/DIF/AVG function; PEAK function; selection of AC or AC+DC measurement
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x4
Software: included
Illumination: yes
Sampling: 5x/s
Event memory: 30000

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; USB; colour,LCD; (100000); 5x/s; True RMS
Type of meter: digital multimeter
Interface: USB
Measurement: AC current; AC voltage; capacitance; continuity; dB; dBm; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: colour; LCD
Display parameters: (100000)
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0.03% + 8 digit)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; 20A < 30s
DC current measuring accuracy: ±(0.08% + 8 digit)
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; (20A <30s)
True effective value measurement: True RMS
Resistance measuring range: 1Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Frequency measuring range: 10...100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 5MHz
Temperature measuring range: -200...800°C
Temperature measurement accuracy: ±0.1%
Temperature measuring range (with K-type thermocouple): -40...1200°C
Resistance measuring accuracy: ±(0.07%+8 digit)
Test: diodes
Continuity test: acoustic indication
IP rating: IP67
Power supply: rechargeable battery Ni-MH AA 1,2V x4
Standard equipment: case; mains battery charger; test leads; test probes; USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX801515; EX871515; EX872502; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 90x169x47.1mm
Producer guarantee (months): 36
Kind of temperature sensor: Pt100; Pt1000; thermocouple J; thermocouple K
Measuring instrument features: auto and manual ranging; AUTO HOLD; automatic power-off; HOLD function; low input impedance function (LoZ); MIN/MAX/DIF/AVG function; PEAK function; selection of AC or AC+DC measurement
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x4
Software: included
Illumination: yes
Sampling: 5x/s
Event memory: 10000

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,USB; colour,LCD; (100000); 5x/s
Type of meter: digital multimeter
Interface: Bluetooth; USB
Measurement: AC current; AC voltage; capacitance; continuity; dB; dBm; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: colour; LCD
Display parameters: (100000)
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0.02% + 8 digit)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; 20A < 30s
DC current measuring accuracy: ±(0.08% + 8 digit)
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; (20A <30s)
True effective value measurement: True RMS
Resistance measuring range: 1Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Frequency measuring range: 10...100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 5MHz
Temperature measuring range: -200...800°C
Temperature measurement accuracy: ±0.1%
Temperature measuring range (with K-type thermocouple): -40...1200°C
Resistance measuring accuracy: ±(0.07%+8 digit)
Test: diodes
Continuity test: acoustic indication
IP rating: IP67
Power supply: rechargeable battery Ni-MH AA 1,2V x4
Standard equipment: case; mains battery charger; test leads; test probes; USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX801515; EX871515; EX872502; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 90x169x47.1mm
Producer guarantee (months): 36
Kind of temperature sensor: Pt100; Pt1000; thermocouple J; thermocouple K
Measuring instrument features: auto and manual ranging; AUTO HOLD; automatic power-off; HOLD function; low input impedance function (LoZ); MIN/MAX/DIF/AVG function; PEAK function; selection of AC or AC+DC measurement
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x4
Software: included
Illumination: yes
Sampling: 5x/s
Event memory: 30000

Виробник: CHAUVIN ARNOUX
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; colour,LCD 5,7"; 320x240; USB; IP53
Type of meter: appliance meter
Interface: USB
Measurement: AC current (with current clamps); active power; AC voltage; continuity; DC voltage; earthing resistance; frequency; harmonics; impedance; insulation resistance; leakage current; phase sequence; RCD tripping current; RCD tripping time; short circuit loop impedance; votlage drop
Kind of display used: colour; LCD 5,7"
Continuity test: acoustic indication; optical indication
Weight with battery: 2.2kg
Power supply: rechargeable battery Li-Ion 10,8V x1
Standard equipment: 3 crocodile clips; carrying case; hand strap; mains battery charger; neckstrap; remote probe; screen protector preventing scratching (set); test leads; test probes; USB cable
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010; IEC 61326-1
Measuring instrument features: long operating time up to 30 hours; programmable alarm thresholds; test leads resistance compensation
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V x1
Insulation resistance measuring ranges: 0.01MΩ...2GΩ
Optional equipment: CA-C177A; CA-MN77
RCD test: AC, A and F-type RCDs; general purpose
Software: included
IP rating: IP53
Illumination: yes
Loop impedance measurement: 100...500mΩ; 4Ω; 40Ω; 400Ω
Body dimensions: 280x190x128mm
Earthing resistance measuring range: 500mΩ...40Ω; 15kΩ; 40kΩ
Earthing resistance measuring accuracy: ±(2% + 2 digit)
Loop impedance measuring accuracy: ±(5% + 2 digit)
Test voltage: 50V; 100V; 250V; 500V; 1kV
Display resolution: 320x240

Виробник: CHAUVIN ARNOUX
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; colour,LCD 5,7"; 320x240; USB; IP53
Type of meter: appliance meter
Kind of display used: colour; LCD 5,7"
Display resolution: 320x240
Earthing resistance measuring range: 500mΩ...40Ω; 15kΩ; 40kΩ
Earthing resistance measuring accuracy: ±(2% + 2 digit)
Continuity test: acoustic indication; optical indication
RCD test: AC, B, B+, EV, A and F-type RCDs; general purpose
Loop impedance measurement: 100...500mΩ; 4Ω; 40Ω; 400Ω
Measurement: AC current (with current clamps); active power; AC voltage; continuity; DC voltage; earthing resistance; frequency; harmonics; impedance; insulation resistance; leakage current; phase sequence; RCD tripping current; RCD tripping time; short circuit loop impedance; votlage drop
Insulation resistance measuring ranges: 0.01MΩ...2GΩ
Interface: USB
Test voltage: 50V; 100V; 250V; 500V; 1kV
IP rating: IP53
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010; IEC 61326-1
Power supply: rechargeable battery Li-Ion 10,8V x1
Measuring instrument features: built-in fuse table; long operating time up to 30 hours; programmable alarm thresholds; test leads resistance compensation
Body dimensions: 280x190x128mm
Weight with battery: 2.2kg
Standard equipment: 3 crocodile clips; carrying case; hand strap; mains battery charger; neckstrap; remote probe; screen protector preventing scratching (set); test leads; test probes; USB cable
Optional equipment: CA-C177A; CA-MN77
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V x1
Software: included
Illumination: yes
Loop impedance measuring accuracy: ±(5% + 2 digit)

Виробник: CHAUVIN ARNOUX
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD; VAC: 2÷550V; 30÷1000Hz; Bluetooth
Conform to the norm: CAT III 600V; EN 61010; EN 61010-2-034; IEC 61010-1; IEC 61010-2-030; IEC 61326-1
Kind of display used: LCD
Software: dedicated mobile app
IP rating: IP54
Power supply: rechargeable battery Ni-MH AA x6
Battery/ rechargeable battery: rechargeable battery Ni-MH AA x6
Illumination: yes
Bargraph: yes
Insulation resistance measuring ranges: 0...100MΩ; 1GΩ
Loop impedance measuring range: 100mΩ...1Ω; 400Ω
Frequency measuring accuracy: ±(0.1%+1 digit)
Dimensions: 223x126x70mm
Earthing resistance measuring range: 500mΩ...100Ω; 1kΩ; 2kΩ
AC voltage measuring accuracy: ±(1% + 2 digit)
Resistance measuring range: 1...10Ω; 100kΩ
AC voltage measuring range: 2...550V
Continuity test: <10Ω
Frequency measuring range: 30...1000Hz
Measurement memory: 2970
Standard equipment: 3 crocodile clips; battery charger/power supply; carrying case; continuity rod; kit for earth ground resistance measurement 15m; manual (CD); neckstrap; test lead; test leads ( 3pcs.); test probe x1; USB cable
RCD test: 30mA, 100mA, 300mA, 500mA, 650mA; AC, A-type RCDs; general purpose
Measurement: AC current (with current clamps); AC voltage; continuity; earthing resistance; frequency; insulation resistance; phase sequence; RCD tripping time; resistance
Type of meter: appliance meter
Measuring instrument features: automatic generation of PDF file with recorded data; magnetized case; Pass/Fail function
Interface: Bluetooth

Виробник: CHAUVIN ARNOUX
Category: Earth Resistance Meter
Description: Meter: grounding resistance; Øcable: 32mm; OLED; IP40
Type of meter: grounding resistance
Standard equipment: hard case; wristbands
IP rating: IP40
Kind of display used: OLED
Body dimensions: 300x106x56mm
AC current measuring range: 10mA; 100mA; 300mA; 3A; 20A
Earthing resistance measuring range: 10...100mΩ; 1Ω; 50Ω; 150Ω; 250Ω; 450Ω; 650Ω; 1.2kΩ
Max. diameter of measured cable: 32mm
Earthing resistance measuring accuracy: ±(1.5% + 0.01Ω)
AC current measuring accuracy: ±(2% + 200µA)
Measurement memory: 300
Weight with battery: 1.2kg
Related items: CA-P01122301
Measuring instrument features: AUTO HOLD; calibration function; manual HOLD function or automatic PRE-HOLD; measurements on wires and rectangular bars; programmable alarm thresholds: current, impedance
Power supply: battery LR6 AA 1,5V x4
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 150V; CAT IV 100V; EN 61010

Виробник: CHAUVIN ARNOUX
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; (4000); VAC: 300mV÷400V,700V
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Power supply: battery LR6 AA 1,5V x6
Type of meter: insulation resistance
Interface: Bluetooth
Standard equipment: carrying case; crocodile clip; test leads; test probe x1
Kind of display used: LCD
Software: included
IP rating: IP54
Bargraph: yes
Capacitance measuring range: 0.1...400nF; 4µF; 10µF
AC voltage measuring range: 300mV...400V; 700V
DC voltage measuring range: 300mV...400V; 700V
DC voltage measuring accuracy: ±(3% + 2 digit)
Resistance measuring accuracy: ±(3%+2 digit)
Resistance measuring range: 4kΩ; 40kΩ; 400kΩ; 1MΩ
Body dimensions: 211x108x60mm
Insulation resistance measuring accuracy: ±(3% + 2digit)
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight without batteries: 850g
Measurement memory: 1300
Insulation resistance measuring ranges: 10...999kΩ; 4MΩ; 40MΩ; 400MΩ; 4GΩ; 40GΩ; 200GΩ
Display parameters: (4000)
Continuity test: <10Ω; <100Ω
Conform to the norm: CAT IV 600V; EN 61243-3:2010; IEC 61010-1; IEC 61010-2-030; IEC 61326-1

Виробник: CHAUVIN ARNOUX
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; VAC: 1÷5100V; VDC: 1÷5100V; IP53
Type of meter: insulation resistance
Kind of display used: LCD
Body dimensions: 270x250x180mm
Power supply: rechargeable battery Ni-MH x1
Measuring instrument features: polarization index (PI), dielelectric absorption ratio (DAR) and dielectric discharge (DD); settable MIN/MAX alarm thresholds
Standard equipment: 1 lead with rear connection 0,35m length; carrying case; mains cable; test leads with crocodile clips; user's manual
Measurement: AC voltage; capacitance; DC voltage; dielectric absorption ratio (DAR); insulation resistance; leakage current
IP rating: IP53
Illumination: yes
DC voltage measuring range: 1...5100V
AC voltage measuring range: 1...5100V
Capacitance measuring range: 1mF...49.99F
Test voltage: 40...5100V; 500V; 1kV; 2.5kV; 5kV
Insulation resistance measuring ranges: 10kΩ...2TΩ; 10kΩ...4TΩ; 10kΩ...10TΩ
Battery/ rechargeable battery: rechargeable battery Ni-MH x1
Conform to the norm: CAT I 2500V; CAT III 1000V; EN 61010; EN 61557

Виробник: CHAUVIN ARNOUX
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; VAC: 1÷5100V; VDC: 1÷5100V; IP53
Type of meter: insulation resistance
Kind of display used: LCD
Body dimensions: 270x250x180mm
Weight without batteries: 4.3kg
Power supply: rechargeable battery Ni-MH x1
Measuring instrument features: polarization index (PI), dielelectric absorption ratio (DAR) and dielectric discharge (DD); settable MIN/MAX alarm thresholds
Standard equipment: 1 lead with rear connection 0,35m length; carrying case; mains cable; test leads with crocodile clips; USB cable; user's manual
Measurement: AC voltage; capacitance; DC voltage; dielectric absorption ratio (DAR); insulation resistance; leakage current
IP rating: IP53
Interface: USB
Illumination: yes
DC voltage measuring range: 1...5100V
AC voltage measuring range: 1...5100V
Capacitance measuring range: 1mF...49.99F
DC voltage measuring accuracy: ±(5% + 3 digit)
Insulation resistance measuring accuracy: ±(5% + 3digit)
Test voltage: 40...5100V; 500V; 1kV; 2.5kV; 5kV
Supply voltage: 85...265V AC
Insulation resistance measuring ranges: 10kΩ...2TΩ; 10kΩ...4TΩ; 10kΩ...10TΩ
Conform to the norm: CAT I 2500V; CAT III 1000V; EN 61010; EN 61557

Виробник: CHAUVIN ARNOUX
Category: Phase Sequence Indicators
Description: Tester: phase sequence; LCD; Freq: 15÷400Hz; IP40
Kind of display used: LCD
Measurement: motor's rotation direction; phase sequence
Type of tester: phase sequence
Body dimensions: 130x69x32mm
Operating frequency: 15...400Hz
Phase-to-phase voltage range for phase sequence indication: 40...850V AC
Standard equipment: 3 crocodile clips; case; test leads ( 3pcs.)
Weight with battery: 130g
Power supply: from tested wiring system
Conform to the norm: CAT III 600V; EN 61010; IEC 61557-7
IP rating: IP40

Виробник: CHAUVIN ARNOUX
Category: Phase Sequence Indicators
Description: Tester: phase sequence; LED; Freq: 15÷400Hz; IP40
Kind of display used: LED
Measurement: motor's rotation direction; phase sequence
Measuring instrument features: non-contact determination of rotation field direction; voltage indicator individual for each phase
Type of tester: phase sequence
Body dimensions: 130x69x32mm
Operating frequency: 15...400Hz
Phase-to-phase voltage range for phase sequence indication: 40...600V AC
Standard equipment: 3 crocodile clips; case; test leads ( 3pcs.)
Weight with battery: 170g
Power supply: battery 9V x1
Conform to the norm: CAT III 600V; EN 61010; IEC 61557-7
IP rating: IP40

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; LCD; VDC: 3V,30V,300V,1kV; Test: diodes; IP54
Type of meter: digital multimeter
Kind of display used: LCD
Illumination: yes
DC voltage measuring range: 3V; 30V; 300V; 1kV
DC voltage measuring accuracy: ±(2% + 3 digit)
AC voltage measuring range: 3V; 30V; 300V; 1kV
AC voltage measuring accuracy: ±(3% + 4 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Resistance measuring accuracy: ±(3%+3 digit)
Capacitance measuring range: 3nF; 30nF; 300nF; 3µF; 30µF; 300µF; 3mF; 30mF
Capacitance measuring accuracy: ±(5%+ 5 digit)
Test: diodes
Continuity test: acoustic indication; <30Ω
Measurement: AC voltage; capacitance; continuity; DC voltage; resistance
Measuring instrument features: autoranging; contactless voltage detector; low battery indicator; replaceable measuring tips
Standard equipment: test probes
Power supply: battery LR03 AAA 1,5V x2
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Conform to the norm: CAT III 600V; EN 61010
Resistance to: fall from 2m height
IP rating: IP54
Dimensions (W x H x D): 180x52x45mm

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; LCD; VDC: 3V,30V,300V,1kV; Test: diodes; IP54
Type of meter: digital multimeter
Kind of display used: LCD
Illumination: yes
DC voltage measuring range: 3V; 30V; 300V; 1kV
DC voltage measuring accuracy: ±(2% + 3 digit)
AC voltage measuring range: 3V; 30V; 300V; 1kV
AC voltage measuring accuracy: ±(3% + 4 digit)
AC current measuring range: 500mA...30A; 300A
AC current measuring accuracy: ±(3% + 5 digit)
Resistance measuring range: 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ
Resistance measuring accuracy: ±(3%+3 digit)
Capacitance measuring range: 3nF; 30nF; 300nF; 3µF; 30µF; 300µF; 3mF; 30mF
Capacitance measuring accuracy: ±(5%+ 5 digit)
Test: diodes
Continuity test: acoustic indication; <30Ω
Measurement: AC current; AC voltage; capacitance; continuity; DC voltage; resistance
Measuring instrument features: autoranging; contactless voltage detector; low battery indicator; replaceable measuring tips
Standard equipment: probe MiniFlex; test probes; Velcro strap
Power supply: battery LR03 AAA 1,5V x2
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Conform to the norm: CAT III 600V; EN 61010
Resistance to: fall from 2m height
IP rating: IP54
Dimensions (W x H x D): 180x52x45mm

Виробник: CHAUVIN ARNOUX
Category: Power Quality Analyzers
Description: Meter: power quality analyser; LCD; VAC: 6÷600V; True RMS; 40÷70Hz
Type of meter: power quality analyser
Measurement: AC current (with current clamps); active power; AC voltage; apparent power; DC current (with current clamps); Displacement Power Factor (DPF); frequency; harmonics; inrush current; power factor; reactive power; resistance; rpm velocity; temperature (option)
Kind of display used: LCD
AC voltage measuring range: 6...600V
True effective value measurement: True RMS
Frequency measuring range: 40...70Hz
Continuity test: acoustic indication
Weight with battery: 880g
Power supply: battery LR6 AA 1,5V x6
Standard equipment: 2 crocodile clips; optical cable with USB; test leads ( 2pcs.); test probes
Conform to the norm: CAT III 600V; EN 61010
Measuring instrument features: automatic power-off; automatic recognition various current detectors; datalogging; indicates phase sequence
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Optional equipment: CA-1711 techometr probe
Software: Power Analyser Transfer
IP rating: IP54
Illumination: yes
Dimensions: 211x108x60mm
Pollution degree: 2

Виробник: CHAUVIN ARNOUX
CA-1110 Luxmeters

Виробник: CHAUVIN ARNOUX
Category: Analog Multimeters
Description: Analogue multimeter; Features: blown fuse indicator; IP40
Type of meter: analogue multimeter
Measuring instrument features: blown fuse indicator
Battery/ rechargeable battery: battery LR6 AA 1,5V x1
Power supply: battery LR6 AA 1,5V x1
Standard equipment: test leads; test probes
Conform to the norm: CAT III 600V; EN 61010
IP rating: IP40
DC current measuring range: 50µA; 5mA; 50mA; 500mA; 5A
AC current measuring range: 5mA; 50mA; 0.5A; 5A
Body dimensions: 56x105x160mm
DC voltage measuring range: 100mV; 1V; 3V; 10V; 30V; 100V; 300V; 1kV
DC voltage measuring accuracy: ±1.5%
AC current measuring accuracy: ±2.5%
DC current measuring accuracy: ±2.5%
AC voltage measuring accuracy: ±2.5%
AC voltage measuring range: 10V; 30V; 100V; 300V; 1kV
Resistance measuring accuracy: ±10%
Producer guarantee (months): 36
Input impedance for AC voltage: 6.32kΩ/V
Input impedance for DC voltage measurement: 20kΩ/V
Resistance measuring range: 5...1MΩ
Measurement: AC current; AC voltage; DC current; DC voltage; resistance
Continuity test: acoustic indication; <50Ω
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
Category: Analog Multimeters
Description: Analogue multimeter; VDC: 100mV,1V,3V,10V,30V,100V,300V,1kV
IP rating: IP53
Conform to the norm: CAT III 600V; EN 61010
Standard equipment: test leads; test probes
DC current measuring range: 50µA; 150µA; 1.5mA; 15mA; 150mA; 1.5A; 15A
AC current measuring range: 1.5mA; 15mA; 150mA; 1.5A; 15A
Body dimensions: 56x105x160mm
DC voltage measuring range: 100mV; 1V; 3V; 10V; 30V; 100V; 300V; 1kV
DC voltage measuring accuracy: ±1.5%
AC voltage measuring accuracy: ±2.5%
DC current measuring accuracy: ±2.5%
AC current measuring accuracy: ±2.5%
AC voltage measuring range: 10V; 30V; 100V; 300V; 1kV
Resistance measuring accuracy: ±10%
Producer guarantee (months): 36
Input impedance for AC voltage: 6.32kΩ/V
Input impedance for DC voltage measurement: 20kΩ/V
Resistance measuring range: 5...1MΩ
Measurement: AC current; AC voltage; DC current; DC voltage; resistance
Continuity test: acoustic indication; <50Ω
Type of meter: analogue multimeter
Measuring instrument features: automatic calibration; blown fuse indicator
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: battery 6F22 9V x1
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); Bargraph: 61segm; 5x/s; True RMS
Resistance to: fall from 1m height
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Continuity test: acoustic indication
Measuring instrument features: auto and manual ranging; automatic calibration; automatic power-off; HOLD function; low input impedance function (LoZ); low-pass filter; MIN/MAX function
Power supply: battery 6F22 9V x1
Battery/ rechargeable battery: battery 6F22 9V x1
Standard equipment: drop-like K-type probe; test leads; test probes
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Type of meter: digital multimeter
Test: diodes
IP rating: IP54
Kind of display used: LCD
Illumination: yes
True effective value measurement: True RMS
Temperature measuring range (with K-type thermocouple): -59.6...1200°C
Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF
AC current measuring range: 6A; 10A
DC current measuring range: 6A; 10A; 20A < 30s
AC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
Dimensions (W x H x D): 90x190x45mm
Temperature measurement accuracy: ±(0.5% + 2°C)
Frequency measuring accuracy: ±(0.1%+2 digit)
Frequency measuring range: 100mHz...600Hz; 6kHz; 60kHz
DC voltage measuring accuracy: ±(0.2% + 2 digit)
Resistance measuring accuracy: ±(1%+2 digit)
DC current measuring accuracy: ±(0.8% + 2 digit)
AC current measuring accuracy: ±(1% + 3 digit)
Capacitance measuring accuracy: ±(1%+ 5 digit)
AC voltage measuring accuracy: ±(1.2% + 3 digit)
Producer guarantee (months): 36
Bandwidth for AC voltage measurements: 40...400Hz; 400Hz...3kHz
Bandwidth for AC current measurements: 40Hz...1kHz
Bargraph: 61 segm.
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Sampling: 5x/s
Display parameters: (6000)
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
CA-5275 Portable digital multimeters

Виробник: CHAUVIN ARNOUX
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth,USB; colour,LCD; (100000); 5x/s
Type of meter: digital multimeter
Interface: Bluetooth; USB
Measurement: AC current; AC voltage; capacitance; continuity; dB; dBm; DC current; DC voltage; duty cycle; frequency; resistance; temperature
Kind of display used: colour; LCD
Display parameters: (100000)
DC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC voltage measuring accuracy: ±(0.02% + 8 digit)
AC voltage measuring range: 100mV; 1V; 10V; 100V; 1kV
DC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; 20A < 30s
DC current measuring accuracy: ±(0.08% + 8 digit)
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A; (20A <30s)
True effective value measurement: True RMS
Resistance measuring range: 1Ω; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Capacitance measuring range: 1nF; 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Frequency measuring range: 10...100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 5MHz
Temperature measuring range: -200...800°C
Temperature measurement accuracy: ±0.1%
Temperature measuring range (with K-type thermocouple): -40...1200°C
Resistance measuring accuracy: ±(0.07%+8 digit)
Test: diodes
Continuity test: acoustic indication
IP rating: IP67
Power supply: rechargeable battery Ni-MH AA 1,2V x4
Standard equipment: case; mains battery charger; test leads; test probes; USB cable
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX801515; EX871515; EX872502; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 90x169x47.1mm
Producer guarantee (months): 36
Kind of temperature sensor: Pt100; Pt1000; thermocouple J; thermocouple K
Measuring instrument features: auto and manual ranging; AUTO HOLD; automatic power-off; HOLD function; low input impedance function (LoZ); MIN/MAX/DIF/AVG function; PEAK function; selection of AC or AC+DC measurement
Battery/ rechargeable battery: rechargeable battery Ni-MH AA 1,2V x4
Software: included
Illumination: yes
Sampling: 5x/s
Event memory: 30000
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
Category: Multimeters for Electrical Installations
Description: Meter: appliance meter; LCD; VAC: 2÷550V; 30÷1000Hz; Bluetooth
Conform to the norm: CAT III 600V; EN 61010; EN 61010-2-034; IEC 61010-1; IEC 61010-2-030; IEC 61326-1
Kind of display used: LCD
Software: dedicated mobile app
IP rating: IP54
Power supply: rechargeable battery Ni-MH AA x6
Battery/ rechargeable battery: rechargeable battery Ni-MH AA x6
Illumination: yes
Bargraph: yes
Insulation resistance measuring ranges: 0...100MΩ; 1GΩ
Loop impedance measuring range: 100mΩ...1Ω; 400Ω
Frequency measuring accuracy: ±(0.1%+1 digit)
Dimensions: 223x126x70mm
Earthing resistance measuring range: 500mΩ...100Ω; 1kΩ; 2kΩ
AC voltage measuring accuracy: ±(1% + 2 digit)
Resistance measuring range: 1...10Ω; 100kΩ
AC voltage measuring range: 2...550V
Continuity test: <10Ω
Frequency measuring range: 30...1000Hz
Measurement memory: 2970
Standard equipment: 3 crocodile clips; battery charger/power supply; carrying case; continuity rod; kit for earth ground resistance measurement 15m; manual (CD); neckstrap; test lead; test leads ( 3pcs.); test probe x1; USB cable
RCD test: 30mA, 100mA, 300mA, 500mA, 650mA; AC, A-type RCDs; general purpose
Measurement: AC current (with current clamps); AC voltage; continuity; earthing resistance; frequency; insulation resistance; phase sequence; RCD tripping time; resistance
Type of meter: appliance meter
Measuring instrument features: automatic generation of PDF file with recorded data; magnetized case; Pass/Fail function
Interface: Bluetooth
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
Category: Earth Resistance Meter
Description: Meter: grounding resistance; Øcable: 32mm; OLED; IP40
Type of meter: grounding resistance
Standard equipment: hard case; wristbands
IP rating: IP40
Kind of display used: OLED
Body dimensions: 300x106x56mm
AC current measuring range: 10mA; 100mA; 300mA; 3A; 20A
Earthing resistance measuring range: 10...100mΩ; 1Ω; 50Ω; 150Ω; 250Ω; 450Ω; 650Ω; 1.2kΩ
Max. diameter of measured cable: 32mm
Earthing resistance measuring accuracy: ±(1.5% + 0.01Ω)
AC current measuring accuracy: ±(2% + 200µA)
Measurement memory: 300
Weight with battery: 1.2kg
Related items: CA-P01122301
Measuring instrument features: AUTO HOLD; calibration function; manual HOLD function or automatic PRE-HOLD; measurements on wires and rectangular bars; programmable alarm thresholds: current, impedance
Power supply: battery LR6 AA 1,5V x4
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Conform to the norm: CAT III 150V; CAT IV 100V; EN 61010
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
CA-6503 Insulation Resistance Meters

Виробник: CHAUVIN ARNOUX
CA-6524 Insulation Resistance Meters

Виробник: CHAUVIN ARNOUX
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; (4000); VAC: 300mV÷400V,700V
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Power supply: battery LR6 AA 1,5V x6
Type of meter: insulation resistance
Interface: Bluetooth
Standard equipment: carrying case; crocodile clip; test leads; test probe x1
Kind of display used: LCD
Software: included
IP rating: IP54
Bargraph: yes
Capacitance measuring range: 0.1...400nF; 4µF; 10µF
AC voltage measuring range: 300mV...400V; 700V
DC voltage measuring range: 300mV...400V; 700V
DC voltage measuring accuracy: ±(3% + 2 digit)
Resistance measuring accuracy: ±(3%+2 digit)
Resistance measuring range: 4kΩ; 40kΩ; 400kΩ; 1MΩ
Body dimensions: 211x108x60mm
Insulation resistance measuring accuracy: ±(3% + 2digit)
Test voltage: 50V; 100V; 250V; 500V; 1kV
Weight without batteries: 850g
Measurement memory: 1300
Insulation resistance measuring ranges: 10...999kΩ; 4MΩ; 40MΩ; 400MΩ; 4GΩ; 40GΩ; 200GΩ
Display parameters: (4000)
Continuity test: <10Ω; <100Ω
Conform to the norm: CAT IV 600V; EN 61243-3:2010; IEC 61010-1; IEC 61010-2-030; IEC 61326-1
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
CA-702 Portable digital multimeters

Виробник: CHAUVIN ARNOUX
CA-703 Portable digital multimeters

Виробник: CHAUVIN ARNOUX
CA-732 Indicators, Voltage & Continuity Testers

Виробник: CHAUVIN ARNOUX
CA-745N Indicators, Voltage & Continuity Testers

Виробник: CHAUVIN ARNOUX
Category: Power Quality Analyzers
Description: Meter: power quality analyser; LCD; VAC: 6÷600V; True RMS; 40÷70Hz
Type of meter: power quality analyser
Measurement: AC current (with current clamps); active power; AC voltage; apparent power; DC current (with current clamps); Displacement Power Factor (DPF); frequency; harmonics; inrush current; power factor; reactive power; resistance; rpm velocity; temperature (option)
Kind of display used: LCD
AC voltage measuring range: 6...600V
True effective value measurement: True RMS
Frequency measuring range: 40...70Hz
Continuity test: acoustic indication
Weight with battery: 880g
Power supply: battery LR6 AA 1,5V x6
Standard equipment: 2 crocodile clips; optical cable with USB; test leads ( 2pcs.); test probes
Conform to the norm: CAT III 600V; EN 61010
Measuring instrument features: automatic power-off; automatic recognition various current detectors; datalogging; indicates phase sequence
Battery/ rechargeable battery: battery LR6 AA 1,5V x6
Optional equipment: CA-1711 techometr probe
Software: Power Analyser Transfer
IP rating: IP54
Illumination: yes
Dimensions: 211x108x60mm
Pollution degree: 2
кількість в упаковці: 1 шт

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 53mm; I AC: 100mA÷1.2kA; IP40
Max. diameter of measured cable: 53mm
AC current measuring range: 100mA...1.2kA
Dimensions: 216x111x45mm
Gear: 1000:1
Output signal: 1mA/1A
Type of test accessories: AC current clamp adapter
Kind of connector: banana 4mm socket
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
IP rating: IP40

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 53mm; I AC: 100mA÷1.2kA; IP40
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
IP rating: IP40
Dimensions: 216x111x45mm
Max. diameter of measured cable: 53mm
AC current measuring range: 100mA...1.2kA
Cable length: 1.5m
Output signal: 1mV/1A
Type of test accessories: AC current clamp adapter
Kind of connector: banana 4mm plug x2

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 53mm; Len: 2m; IP40; BNC (m)
Type of test accessories: AC current clamp adapter
Max. diameter of measured cable: 53mm
AC current measuring range: 100mA...10A; 1...100A; 1...1000A
Output signal: 1mA/1A AC; 10mV/1A AC; 100mV/1A AC
Cable length: 2m
IP rating: IP40
Dimensions: 216x111x45mm
Conform to the norm: CAT III 600V; CAT IV 300V; EN 61010
Kind of connector: BNC (m)

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 52mm; I AC: 0.005mA÷20A; Len: 2m
Related items: CA-6116N
AC current measuring range: 0.005mA...20A
Max. diameter of measured cable: 52mm
Cable length: 2m
Type of test accessories: AC current clamp adapter

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 52mm; I AC: 0.005mA÷200A
Related items: CA-6116N
AC current measuring range: 0.005mA...200A
Max. diameter of measured cable: 52mm
Cable length: 2m
Type of test accessories: AC current clamp adapter

Виробник: CHAUVIN ARNOUX
Category: Meters and AC Clamp Probes
Description: AC current clamp adapter; Øcable: 52mm; I AC: 1÷1000A; Len: 3.5m
Type of test accessories: AC current clamp adapter
Related items: CA-8220; CA-8336; CA-PEL103
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
AC current measuring range: 1...1000A
Max. diameter of measured cable: 52mm
Cable length: 3.5m
