Фото Назва Виробник Інформація Доступність
Ціна

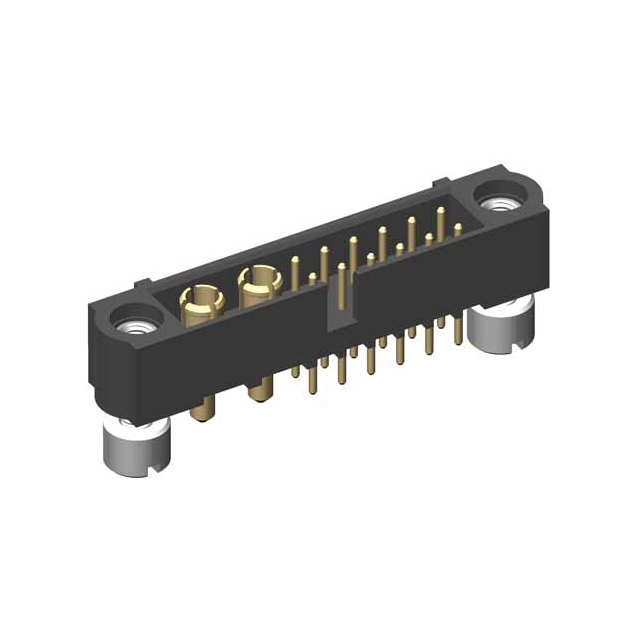

M80-5T11205M2-02-331-00-000 M80-5T11205M2-02-331-00-000 Harwin Inc. M80-5T11205M2-02-331-00-000.pdf Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 14 (12 + 2 Power)
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10605M2-02-331-00-000 M80-5T10605M2-02-331-00-000 Harwin Inc. M80-5T10605M2-02-331-00-000.pdf Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 8 (6 + 2 Power)
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 124 шт:
термін постачання 21-31 дні (днів)
1+1915.05 грн
11+1556.61 грн
110+1323.29 грн
В кошику  од. на суму  грн.
M80-5T10805M2-02-331-00-000 M80-5T10805M2-02-331-00-000 Harwin Inc. M80-5T10805M2-02-331-00-000.pdf Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 10 (8 + 2 Power)
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10822M2-02-331-00-000 M80-5T10822M2-02-331-00-000 Harwin Inc. M80-5T10822M2-02-331-00-000.pdf Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 10 (8 + 2 Power)
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
товару немає в наявності
В кошику  од. на суму  грн.

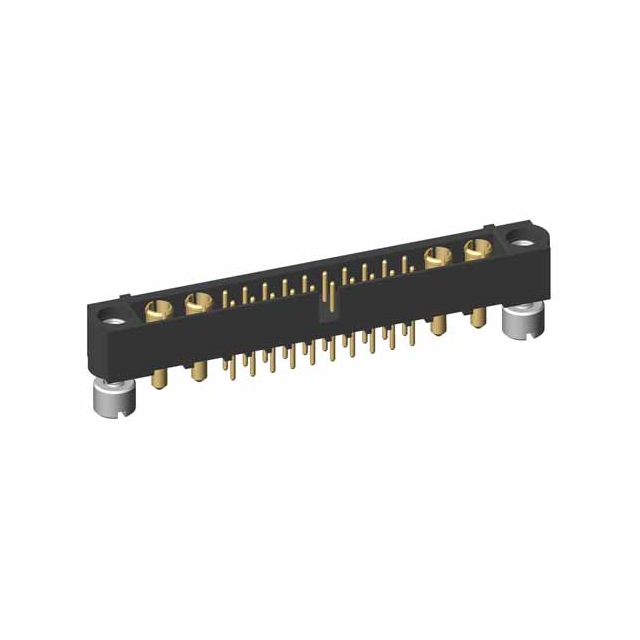

M80-5T12005M2-02-331-02-331 M80-5T12005M2-02-331-02-331 Harwin Inc. M80-5T12005M2-02-331-02-331.pdf Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 24 (20 + 4 Power)
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10222M2-02-331-02-331 M80-5T10222M2-02-331-02-331 Harwin Inc. M80-5T10222M2-02-331-02-331.pdf Description: CONN HEADER VERT 6POS
Packaging: Bulk
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 6 (2 + 4 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Shape: Circular
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-PF5 M80-PF5 Harwin Inc. M80-PF5.pdf Description: CONN SOCKET 10AWG SLDR CUP GOLD
Packaging: Bag
Contact Finish: Gold
Contact Termination: Solder Cup
Wire Gauge: 10 AWG
Type: Power
Pin or Socket: Socket
Contact Finish Thickness: 30.0µin (0.76µm)
на замовлення 4062 шт:
термін постачання 21-31 дні (днів)
1+877.80 грн
10+718.26 грн
30+664.68 грн
50+601.70 грн
100+572.98 грн
250+537.13 грн
500+503.13 грн
1000+479.15 грн
В кошику  од. на суму  грн.
M55-6015042R M55-6015042R Harwin Inc. M55-60X.pdf Description: CONN RCPT 50POS 0.05 GOLD SMD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle
Voltage Rating: 100VAC
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 10.8mm, 12.3mm, 13.9mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.356" (9.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M55-6015042R M55-6015042R Harwin Inc. M55-60X.pdf Description: CONN RCPT 50POS 0.05 GOLD SMD
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle
Voltage Rating: 100VAC
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 10.8mm, 12.3mm, 13.9mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.356" (9.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
на замовлення 134 шт:
термін постачання 21-31 дні (днів)
1+341.09 грн
10+297.99 грн
100+262.55 грн
В кошику  од. на суму  грн.
M80-4205042 M80-4205042 Harwin Inc. M80-420.pdf Description: CONN RCPT 50POS 0.079 GOLD PCB
Packaging: Tube
Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Connector Type: Receptacle
Voltage Rating: 120V
Mounting Type: Through Hole
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M300-FC60305F2-0450L M300-FC60305F2-0450L Harwin Inc. M300-FCXXX05F2-XXXXL.pdf Description: CBL ASS 3MM F 3POS SNGL 450MM
Packaging: Bag
Features: Polarizing Key, Screw Lock
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 1.48' (450.00mm)
Shielding: Unshielded
Number of Positions: 3
Number of Rows: 1
Contact Finish Thickness: 5.90µin (0.150µm)
Cable Termination: Crimp
Pitch - Connector: 0.118" (3.00mm)
Part Status: Active
на замовлення 13 шт:
термін постачання 21-31 дні (днів)
1+2333.41 грн
10+1831.46 грн
В кошику  од. на суму  грн.
M300-FC60305F2-0150L M300-FC60305F2-0150L Harwin Inc. C048XX_M300_Series_Connectors.pdf Description: CBL ASS 3MM F 3POS SNGL 150MM
на замовлення 23 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M300-FC60305F2-0300L M300-FC60305F2-0300L Harwin Inc. M300-FCXXX05F2-XXXXL.pdf Description: CBL ASS 3MM F 3POS SNGL 300MM
Packaging: Bag
Features: Polarizing Key, Screw Lock
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 0.984' (300.00mm, 11.81")
Shielding: Unshielded
Number of Positions: 3
Number of Rows: 1
Contact Finish Thickness: 5.90µin (0.150µm)
Cable Termination: Crimp
Pitch - Connector: 0.118" (3.00mm)
Part Status: Active
товару немає в наявності
В кошику  од. на суму  грн.
M20-9771146 M20-9771146 Harwin Inc. C001XX_M20_Series_Connectors.pdf Description: CONN HEADER VERT 11POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole
Number of Positions: 11
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.122" (3.10mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.452" (11.48mm)
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.228" (5.80mm)
на замовлення 1825 шт:
термін постачання 21-31 дні (днів)
9+38.63 грн
10+31.98 грн
100+24.88 грн
500+20.01 грн
1000+16.67 грн
Мінімальне замовлення: 9
В кошику  од. на суму  грн.
M80-4174898 M80-4174898 Harwin Inc. PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf Description: CONN RCPT HSG 48POS 2.00MM
Features: Mating Flange, Mounting Flange, Polarizing Key
Packaging: Bag
Connector Type: Receptacle
Contact Termination: Crimp
Color: Black
Mounting Type: Panel Mount
Number of Positions: 48
Pitch: 0.079" (2.00mm)
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Row Spacing: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M225-4552698 M225-4552698 Harwin Inc. C050XX_M225_Series_Connectors.pdf Description: CONN RECEPT 2MM 26POS
на замовлення 112 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M20-9960246 M20-9960246 Harwin Inc. M20-996.pdf Description: CONN HEADER R/A 2POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.240" (6.10mm)
на замовлення 10657 шт:
термін постачання 21-31 дні (днів)
40+8.22 грн
45+7.12 грн
100+6.03 грн
500+5.05 грн
1000+4.81 грн
5000+4.29 грн
10000+4.02 грн
Мінімальне замовлення: 40
В кошику  од. на суму  грн.
M300-FC70305F2-0150L M300-FC70305F2-0150L Harwin Inc. C048XX_M300_Series_Connectors.pdf Description: CBL ASS 3MM F 3POS SNGL 150MM
на замовлення 30 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M300-FC70305F2-0300L M300-FC70305F2-0300L Harwin Inc. C048XX_M300_Series_Connectors.pdf Description: CBL ASS 3MM F 3POS SNGL 300MM
на замовлення 28 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M300-FC70305F2-0450L M300-FC70305F2-0450L Harwin Inc. M300-FCXXX05F2-XXXXL.pdf Description: CBL ASS 3MM F 3POS SNGL 450MM
Features: Polarizing Key, Screw Lock
Packaging: Bag
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 1.48' (450.00mm)
Shielding: Unshielded
Number of Positions: 3
Number of Rows: 1
Contact Finish Thickness: 5.90µin (0.150µm)
Cable Termination: Crimp
Pitch - Connector: 0.118" (3.00mm)
Part Status: Active
товару немає в наявності
В кошику  од. на суму  грн.
M50-3600542R M50-3600542R Harwin Inc. PD002-Product-Datasheet-ARCHER-M50-and-M52-ranges-BBi.pdf Description: CONN HEADER SMD 10POS 1.27MM
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
на замовлення 14400 шт:
термін постачання 21-31 дні (днів)
800+65.73 грн
1600+60.27 грн
2400+58.58 грн
4000+53.03 грн
5600+51.78 грн
8000+50.50 грн
Мінімальне замовлення: 800
В кошику  од. на суму  грн.
M50-3600542R M50-3600542R Harwin Inc. PD002-Product-Datasheet-ARCHER-M50-and-M52-ranges-BBi.pdf Description: CONN HEADER SMD 10POS 1.27MM
Features: Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
на замовлення 15470 шт:
термін постачання 21-31 дні (днів)
4+106.03 грн
10+86.27 грн
100+73.31 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
M7681-46 M7681-46 Harwin Inc. M7680-M7683.pdf Description: 14MM JUMPER SKT W/HNDL RED
на замовлення 19576 шт:
термін постачання 21-31 дні (днів)
5+65.75 грн
10+53.19 грн
25+51.00 грн
50+46.85 грн
100+44.82 грн
250+40.74 грн
500+36.07 грн
1000+32.06 грн
2500+29.05 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
M80-4000000F8-02-305-00-000 Harwin Inc. M80-4000000F8-XX-XXX-00-000.pdf Description: CONN RCPT 2POS CRIMP GOLD
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F8-02-306-00-000 Harwin Inc. M80-4000000F8-XX-XXX-00-000.pdf Description: CONN RCPT 2POS CRIMP GOLD
товару немає в наявності
В кошику  од. на суму  грн.
M80-4801042 M80-4801042 Harwin Inc. M80-480.pdf Description: CONN RCPT 10POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 10
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 85 шт:
термін постачання 21-31 дні (днів)
1+1296.15 грн
10+1060.73 грн
25+994.31 грн
50+888.57 грн
В кошику  од. на суму  грн.
M80-4801405 M80-4801405 Harwin Inc. M80-480.pdf Description: CONN RCPT 14POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 14
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 120 шт:
термін постачання 21-31 дні (днів)
1+1611.77 грн
10+1319.22 грн
25+1236.63 грн
50+1105.14 грн
100+1052.42 грн
В кошику  од. на суму  грн.
M80-4801205 M80-4801205 Harwin Inc. DRG-00850-Technical-Drawing-Datasheet-M80-480-pdf.pdf Description: CONN RCPT 12POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 12
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 177 шт:
термін постачання 21-31 дні (днів)
1+1348.76 грн
10+1103.55 грн
25+1034.42 грн
50+924.42 грн
100+880.32 грн
В кошику  од. на суму  грн.
M80-4800442 M80-4800442 Harwin Inc. M80-480.pdf Description: CONN RCPT 4POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 4
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 71 шт:
термін постачання 21-31 дні (днів)
1+832.60 грн
10+681.38 грн
25+638.72 грн
50+570.78 грн
В кошику  од. на суму  грн.
M80-4802642 M80-4802642 Harwin Inc. M80-480.pdf Description: CONN RCPT 26POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 26
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 25 шт:
термін постачання 21-31 дні (днів)
1+2210.94 грн
10+1809.78 грн
25+1696.50 грн
В кошику  од. на суму  грн.
M80-4802042 M80-4802042 Harwin Inc. M80-480.pdf Description: CONN RCPT 20POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 20
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 121 шт:
термін постачання 21-31 дні (днів)
1+1923.27 грн
10+1573.52 грн
25+1474.98 грн
50+1318.17 грн
100+1255.29 грн
В кошику  од. на суму  грн.
M80-4802005 M80-4802005 Harwin Inc. M80-480.pdf Description: CONN RCPT 20POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 20
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 122 шт:
термін постачання 21-31 дні (днів)
1+1851.77 грн
10+1516.06 грн
25+1421.10 грн
50+1270.01 грн
100+1209.42 грн
В кошику  од. на суму  грн.
M80-4801642 M80-4801642 Harwin Inc. M80-480.pdf Description: CONN RCPT 16POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 16
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 205 шт:
термін постачання 21-31 дні (днів)
1+1269.85 грн
10+1039.20 грн
25+974.14 грн
50+870.56 грн
100+829.03 грн
В кошику  од. на суму  грн.
M80-4802442 M80-4802442 Harwin Inc. M80-480.pdf Description: CONN RCPT 24POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 24
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 23 шт:
термін постачання 21-31 дні (днів)
1+1391.50 грн
10+1139.01 грн
В кошику  од. на суму  грн.
M80-4802405 M80-4802405 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 24POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 24
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803042 M80-4803042 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 30POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 30
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4801605 M80-4801605 Harwin Inc. M80-480.pdf Description: CONN RCPT 16POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 16
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 78 шт:
термін постачання 21-31 дні (днів)
1+1584.65 грн
10+1296.67 грн
25+1215.45 грн
50+1086.22 грн
В кошику  од. на суму  грн.
M80-4804005 M80-4804005 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 40POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 40
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804405 M80-4804405 Harwin Inc. M80-480.pdf Description: CONN RCPT 44POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 44
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 58 шт:
термін постачання 21-31 дні (днів)
1+2205.19 грн
10+1804.87 грн
25+1691.85 грн
50+1511.99 грн
В кошику  од. на суму  грн.
M80-4802242 M80-4802242 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 22POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 22
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4802805 M80-4802805 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 28POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 28
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4802842 M80-4802842 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 28POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 28
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803242 M80-4803242 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 32POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 32
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803642 M80-4803642 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 36POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 36
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803805 M80-4803805 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 38POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 38
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803842 M80-4803842 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 38POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 38
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804042 M80-4804042 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 40POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 40
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804442 M80-4804442 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 44POS CRIMP 22AWG GOLD
Packaging: Tube
Features: Jackscrews
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 44
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804605 M80-4804605 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 46POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 46
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804642 M80-4804642 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 46POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 46
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804805 M80-4804805 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 48POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 48
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804842 M80-4804842 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: CONN RCPT 48POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 48
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M55-7002642R M55-7002642R Harwin Inc. M55-70X.pdf Description: CONN HEADER SMD 26POS 1.27MM
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.266" (6.76mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.157" (4.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M55-7002642R M55-7002642R Harwin Inc. M55-70X.pdf Description: CONN HEADER SMD 26POS 1.27MM
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.266" (6.76mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.157" (4.00mm)
на замовлення 360 шт:
термін постачання 21-31 дні (днів)
3+138.08 грн
10+115.87 грн
100+103.55 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
M80-8510845 Harwin Inc. Harwin_PC_Datamate.pdf Description: CONN HEADER R/A 8POS 2MM
товару немає в наявності
В кошику  од. на суму  грн.
M20-7910542R M20-7910542R Harwin Inc. M20-791R.pdf Description: CONN RCPT 5POS 0.1 GOLD SMD R/A
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 0.59µin (0.015µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.098" (2.50mm)
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
M20-7910542R M20-7910542R Harwin Inc. M20-791R.pdf Description: CONN RCPT 5POS 0.1 GOLD SMD R/A
Packaging: Cut Tape (CT)
Connector Type: Receptacle
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 0.59µin (0.015µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.098" (2.50mm)
Number of Rows: 1
на замовлення 1191 шт:
термін постачання 21-31 дні (днів)
4+106.85 грн
10+78.75 грн
100+60.78 грн
500+47.65 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
G125-FC12605F1-0450L G125-FC12605F1-0450L Harwin Inc. G125-XXXXXXXXX-XXXXL.pdf Description: CBL GECKO 1.25MM F 450MM 26POS
Packaging: Bag
Features: Polarizing Key, Screw Lock
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 1.48' (450.00mm)
Shielding: Unshielded
Number of Positions: 26
Number of Rows: 2
Cable Termination: Crimp
Pitch - Connector: 0.049" (1.25mm)
Part Status: Active
на замовлення 63 шт:
термін постачання 21-31 дні (днів)
1+9160.21 грн
10+7498.71 грн
30+6939.90 грн
50+6282.57 грн
В кошику  од. на суму  грн.
M20-9732046 M20-9732046 Harwin Inc. M20-973.pdf Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.122" (3.10mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.496" (12.60mm)
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.276" (7.00mm)
на замовлення 303 шт:
термін постачання 21-31 дні (днів)
6+60.00 грн
10+48.83 грн
200+39.53 грн
Мінімальне замовлення: 6
В кошику  од. на суму  грн.
M55-7104042R M55-7104042R Harwin Inc. PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf Description: CONN HEADER SMD R/A 40POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Board Guide, Solder Retention
Connector Type: Header
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.165" (4.20mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.157" (4.00mm)
на замовлення 9600 шт:
термін постачання 21-31 дні (днів)
600+109.59 грн
1200+100.50 грн
1800+97.66 грн
3000+88.41 грн
4200+86.34 грн
6000+84.19 грн
Мінімальне замовлення: 600
В кошику  од. на суму  грн.
M80-5T11205M2-02-331-00-000 M80-5T11205M2-02-331-00-000.pdf
M80-5T11205M2-02-331-00-000
Виробник: Harwin Inc.
Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 14 (12 + 2 Power)
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10605M2-02-331-00-000 M80-5T10605M2-02-331-00-000.pdf
M80-5T10605M2-02-331-00-000
Виробник: Harwin Inc.
Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 8 (6 + 2 Power)
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
на замовлення 124 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1915.05 грн
11+1556.61 грн
110+1323.29 грн
В кошику  од. на суму  грн.
M80-5T10805M2-02-331-00-000 M80-5T10805M2-02-331-00-000.pdf
M80-5T10805M2-02-331-00-000
Виробник: Harwin Inc.
Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 10 (8 + 2 Power)
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Part Status: Active
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10822M2-02-331-00-000 M80-5T10822M2-02-331-00-000.pdf
M80-5T10822M2-02-331-00-000
Виробник: Harwin Inc.
Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 10 (8 + 2 Power)
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T12005M2-02-331-02-331 M80-5T12005M2-02-331-02-331.pdf
M80-5T12005M2-02-331-02-331
Виробник: Harwin Inc.
Description: DATAMATE 2-ROW MIX-TEK MALE VERT
Packaging: Tube
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 24 (20 + 4 Power)
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
товару немає в наявності
В кошику  од. на суму  грн.
M80-5T10222M2-02-331-02-331 M80-5T10222M2-02-331-02-331.pdf
M80-5T10222M2-02-331-02-331
Виробник: Harwin Inc.
Description: CONN HEADER VERT 6POS
Packaging: Bulk
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 6 (2 + 4 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Shape: Circular
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M80-PF5 M80-PF5.pdf
M80-PF5
Виробник: Harwin Inc.
Description: CONN SOCKET 10AWG SLDR CUP GOLD
Packaging: Bag
Contact Finish: Gold
Contact Termination: Solder Cup
Wire Gauge: 10 AWG
Type: Power
Pin or Socket: Socket
Contact Finish Thickness: 30.0µin (0.76µm)
на замовлення 4062 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+877.80 грн
10+718.26 грн
30+664.68 грн
50+601.70 грн
100+572.98 грн
250+537.13 грн
500+503.13 грн
1000+479.15 грн
В кошику  од. на суму  грн.
M55-6015042R M55-60X.pdf
M55-6015042R
Виробник: Harwin Inc.
Description: CONN RCPT 50POS 0.05 GOLD SMD
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle
Voltage Rating: 100VAC
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 10.8mm, 12.3mm, 13.9mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.356" (9.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M55-6015042R M55-60X.pdf
M55-6015042R
Виробник: Harwin Inc.
Description: CONN RCPT 50POS 0.05 GOLD SMD
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle
Voltage Rating: 100VAC
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 10.8mm, 12.3mm, 13.9mm
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.356" (9.05mm)
Row Spacing - Mating: 0.050" (1.27mm)
Number of Rows: 2
на замовлення 134 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+341.09 грн
10+297.99 грн
100+262.55 грн
В кошику  од. на суму  грн.
M80-4205042 M80-420.pdf
M80-4205042
Виробник: Harwin Inc.
Description: CONN RCPT 50POS 0.079 GOLD PCB
Packaging: Tube
Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Connector Type: Receptacle
Voltage Rating: 120V
Mounting Type: Through Hole
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M300-FC60305F2-0450L M300-FCXXX05F2-XXXXL.pdf
M300-FC60305F2-0450L
Виробник: Harwin Inc.
Description: CBL ASS 3MM F 3POS SNGL 450MM
Packaging: Bag
Features: Polarizing Key, Screw Lock
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 1.48' (450.00mm)
Shielding: Unshielded
Number of Positions: 3
Number of Rows: 1
Contact Finish Thickness: 5.90µin (0.150µm)
Cable Termination: Crimp
Pitch - Connector: 0.118" (3.00mm)
Part Status: Active
на замовлення 13 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+2333.41 грн
10+1831.46 грн
В кошику  од. на суму  грн.
M300-FC60305F2-0150L C048XX_M300_Series_Connectors.pdf
M300-FC60305F2-0150L
Виробник: Harwin Inc.
Description: CBL ASS 3MM F 3POS SNGL 150MM
на замовлення 23 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M300-FC60305F2-0300L M300-FCXXX05F2-XXXXL.pdf
M300-FC60305F2-0300L
Виробник: Harwin Inc.
Description: CBL ASS 3MM F 3POS SNGL 300MM
Packaging: Bag
Features: Polarizing Key, Screw Lock
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 0.984' (300.00mm, 11.81")
Shielding: Unshielded
Number of Positions: 3
Number of Rows: 1
Contact Finish Thickness: 5.90µin (0.150µm)
Cable Termination: Crimp
Pitch - Connector: 0.118" (3.00mm)
Part Status: Active
товару немає в наявності
В кошику  од. на суму  грн.
M20-9771146 C001XX_M20_Series_Connectors.pdf
M20-9771146
Виробник: Harwin Inc.
Description: CONN HEADER VERT 11POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole
Number of Positions: 11
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.122" (3.10mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.452" (11.48mm)
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.228" (5.80mm)
на замовлення 1825 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
9+38.63 грн
10+31.98 грн
100+24.88 грн
500+20.01 грн
1000+16.67 грн
Мінімальне замовлення: 9
В кошику  од. на суму  грн.
M80-4174898 PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf
M80-4174898
Виробник: Harwin Inc.
Description: CONN RCPT HSG 48POS 2.00MM
Features: Mating Flange, Mounting Flange, Polarizing Key
Packaging: Bag
Connector Type: Receptacle
Contact Termination: Crimp
Color: Black
Mounting Type: Panel Mount
Number of Positions: 48
Pitch: 0.079" (2.00mm)
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Push-Pull
Row Spacing: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M225-4552698 C050XX_M225_Series_Connectors.pdf
M225-4552698
Виробник: Harwin Inc.
Description: CONN RECEPT 2MM 26POS
на замовлення 112 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M20-9960246 M20-996.pdf
M20-9960246
Виробник: Harwin Inc.
Description: CONN HEADER R/A 2POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.240" (6.10mm)
на замовлення 10657 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
40+8.22 грн
45+7.12 грн
100+6.03 грн
500+5.05 грн
1000+4.81 грн
5000+4.29 грн
10000+4.02 грн
Мінімальне замовлення: 40
В кошику  од. на суму  грн.
M300-FC70305F2-0150L C048XX_M300_Series_Connectors.pdf
M300-FC70305F2-0150L
Виробник: Harwin Inc.
Description: CBL ASS 3MM F 3POS SNGL 150MM
на замовлення 30 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M300-FC70305F2-0300L C048XX_M300_Series_Connectors.pdf
M300-FC70305F2-0300L
Виробник: Harwin Inc.
Description: CBL ASS 3MM F 3POS SNGL 300MM
на замовлення 28 шт:
термін постачання 21-31 дні (днів)
В кошику  од. на суму  грн.
M300-FC70305F2-0450L M300-FCXXX05F2-XXXXL.pdf
M300-FC70305F2-0450L
Виробник: Harwin Inc.
Description: CBL ASS 3MM F 3POS SNGL 450MM
Features: Polarizing Key, Screw Lock
Packaging: Bag
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 1.48' (450.00mm)
Shielding: Unshielded
Number of Positions: 3
Number of Rows: 1
Contact Finish Thickness: 5.90µin (0.150µm)
Cable Termination: Crimp
Pitch - Connector: 0.118" (3.00mm)
Part Status: Active
товару немає в наявності
В кошику  од. на суму  грн.
M50-3600542R PD002-Product-Datasheet-ARCHER-M50-and-M52-ranges-BBi.pdf
M50-3600542R
Виробник: Harwin Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Features: Pick and Place
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
на замовлення 14400 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
800+65.73 грн
1600+60.27 грн
2400+58.58 грн
4000+53.03 грн
5600+51.78 грн
8000+50.50 грн
Мінімальне замовлення: 800
В кошику  од. на суму  грн.
M50-3600542R PD002-Product-Datasheet-ARCHER-M50-and-M52-ranges-BBi.pdf
M50-3600542R
Виробник: Harwin Inc.
Description: CONN HEADER SMD 10POS 1.27MM
Features: Pick and Place
Packaging: Cut Tape (CT)
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Insulation Height: 0.039" (1.00mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.118" (3.00mm)
на замовлення 15470 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
4+106.03 грн
10+86.27 грн
100+73.31 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
M7681-46 M7680-M7683.pdf
M7681-46
Виробник: Harwin Inc.
Description: 14MM JUMPER SKT W/HNDL RED
на замовлення 19576 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
5+65.75 грн
10+53.19 грн
25+51.00 грн
50+46.85 грн
100+44.82 грн
250+40.74 грн
500+36.07 грн
1000+32.06 грн
2500+29.05 грн
Мінімальне замовлення: 5
В кошику  од. на суму  грн.
M80-4000000F8-02-305-00-000 M80-4000000F8-XX-XXX-00-000.pdf
Виробник: Harwin Inc.
Description: CONN RCPT 2POS CRIMP GOLD
товару немає в наявності
В кошику  од. на суму  грн.
M80-4000000F8-02-306-00-000 M80-4000000F8-XX-XXX-00-000.pdf
Виробник: Harwin Inc.
Description: CONN RCPT 2POS CRIMP GOLD
товару немає в наявності
В кошику  од. на суму  грн.
M80-4801042 M80-480.pdf
M80-4801042
Виробник: Harwin Inc.
Description: CONN RCPT 10POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 10
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 85 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1296.15 грн
10+1060.73 грн
25+994.31 грн
50+888.57 грн
В кошику  од. на суму  грн.
M80-4801405 M80-480.pdf
M80-4801405
Виробник: Harwin Inc.
Description: CONN RCPT 14POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 14
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 120 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1611.77 грн
10+1319.22 грн
25+1236.63 грн
50+1105.14 грн
100+1052.42 грн
В кошику  од. на суму  грн.
M80-4801205 DRG-00850-Technical-Drawing-Datasheet-M80-480-pdf.pdf
M80-4801205
Виробник: Harwin Inc.
Description: CONN RCPT 12POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 12
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 177 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1348.76 грн
10+1103.55 грн
25+1034.42 грн
50+924.42 грн
100+880.32 грн
В кошику  од. на суму  грн.
M80-4800442 M80-480.pdf
M80-4800442
Виробник: Harwin Inc.
Description: CONN RCPT 4POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 4
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 71 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+832.60 грн
10+681.38 грн
25+638.72 грн
50+570.78 грн
В кошику  од. на суму  грн.
M80-4802642 M80-480.pdf
M80-4802642
Виробник: Harwin Inc.
Description: CONN RCPT 26POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 26
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 25 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+2210.94 грн
10+1809.78 грн
25+1696.50 грн
В кошику  од. на суму  грн.
M80-4802042 M80-480.pdf
M80-4802042
Виробник: Harwin Inc.
Description: CONN RCPT 20POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 20
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 121 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1923.27 грн
10+1573.52 грн
25+1474.98 грн
50+1318.17 грн
100+1255.29 грн
В кошику  од. на суму  грн.
M80-4802005 M80-480.pdf
M80-4802005
Виробник: Harwin Inc.
Description: CONN RCPT 20POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 20
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 122 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1851.77 грн
10+1516.06 грн
25+1421.10 грн
50+1270.01 грн
100+1209.42 грн
В кошику  од. на суму  грн.
M80-4801642 M80-480.pdf
M80-4801642
Виробник: Harwin Inc.
Description: CONN RCPT 16POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 16
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 205 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1269.85 грн
10+1039.20 грн
25+974.14 грн
50+870.56 грн
100+829.03 грн
В кошику  од. на суму  грн.
M80-4802442 M80-480.pdf
M80-4802442
Виробник: Harwin Inc.
Description: CONN RCPT 24POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 24
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 23 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1391.50 грн
10+1139.01 грн
В кошику  од. на суму  грн.
M80-4802405 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4802405
Виробник: Harwin Inc.
Description: CONN RCPT 24POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 24
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803042 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4803042
Виробник: Harwin Inc.
Description: CONN RCPT 30POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 30
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4801605 M80-480.pdf
M80-4801605
Виробник: Harwin Inc.
Description: CONN RCPT 16POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 16
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 78 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+1584.65 грн
10+1296.67 грн
25+1215.45 грн
50+1086.22 грн
В кошику  од. на суму  грн.
M80-4804005 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804005
Виробник: Harwin Inc.
Description: CONN RCPT 40POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 40
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804405 M80-480.pdf
M80-4804405
Виробник: Harwin Inc.
Description: CONN RCPT 44POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 44
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
на замовлення 58 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+2205.19 грн
10+1804.87 грн
25+1691.85 грн
50+1511.99 грн
В кошику  од. на суму  грн.
M80-4802242 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4802242
Виробник: Harwin Inc.
Description: CONN RCPT 22POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 22
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4802805 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4802805
Виробник: Harwin Inc.
Description: CONN RCPT 28POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 28
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4802842 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4802842
Виробник: Harwin Inc.
Description: CONN RCPT 28POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 28
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803242 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4803242
Виробник: Harwin Inc.
Description: CONN RCPT 32POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 32
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803642 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4803642
Виробник: Harwin Inc.
Description: CONN RCPT 36POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 36
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803805 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4803805
Виробник: Harwin Inc.
Description: CONN RCPT 38POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 38
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4803842 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4803842
Виробник: Harwin Inc.
Description: CONN RCPT 38POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 38
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804042 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804042
Виробник: Harwin Inc.
Description: CONN RCPT 40POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 40
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804442 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804442
Виробник: Harwin Inc.
Description: CONN RCPT 44POS CRIMP 22AWG GOLD
Packaging: Tube
Features: Jackscrews
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 44
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804605 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804605
Виробник: Harwin Inc.
Description: CONN RCPT 46POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 46
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804642 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804642
Виробник: Harwin Inc.
Description: CONN RCPT 46POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 46
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804805 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804805
Виробник: Harwin Inc.
Description: CONN RCPT 48POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 48
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M80-4804842 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-4804842
Виробник: Harwin Inc.
Description: CONN RCPT 48POS CRIMP 22AWG GOLD
Features: Jackscrews
Packaging: Tube
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 48
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Part Status: Active
Number of Rows: 2
товару немає в наявності
В кошику  од. на суму  грн.
M55-7002642R M55-70X.pdf
M55-7002642R
Виробник: Harwin Inc.
Description: CONN HEADER SMD 26POS 1.27MM
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.266" (6.76mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.157" (4.00mm)
товару немає в наявності
В кошику  од. на суму  грн.
M55-7002642R M55-70X.pdf
M55-7002642R
Виробник: Harwin Inc.
Description: CONN HEADER SMD 26POS 1.27MM
Features: Board Guide, Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.266" (6.76mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.157" (4.00mm)
на замовлення 360 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
3+138.08 грн
10+115.87 грн
100+103.55 грн
Мінімальне замовлення: 3
В кошику  од. на суму  грн.
M80-8510845 Harwin_PC_Datamate.pdf
Виробник: Harwin Inc.
Description: CONN HEADER R/A 8POS 2MM
товару немає в наявності
В кошику  од. на суму  грн.
M20-7910542R M20-791R.pdf
M20-7910542R
Виробник: Harwin Inc.
Description: CONN RCPT 5POS 0.1 GOLD SMD R/A
Packaging: Tape & Reel (TR)
Connector Type: Receptacle
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 0.59µin (0.015µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.098" (2.50mm)
Number of Rows: 1
товару немає в наявності
В кошику  од. на суму  грн.
M20-7910542R M20-791R.pdf
M20-7910542R
Виробник: Harwin Inc.
Description: CONN RCPT 5POS 0.1 GOLD SMD R/A
Packaging: Cut Tape (CT)
Connector Type: Receptacle
Current Rating (Amps): 3A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 5
Style: Board to Board
Operating Temperature: -40°C ~ 105°C
Contact Type: Forked
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 0.59µin (0.015µm)
Contact Finish - Post: Tin
Part Status: Active
Insulation Height: 0.098" (2.50mm)
Number of Rows: 1
на замовлення 1191 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
4+106.85 грн
10+78.75 грн
100+60.78 грн
500+47.65 грн
Мінімальне замовлення: 4
В кошику  од. на суму  грн.
G125-FC12605F1-0450L G125-XXXXXXXXX-XXXXL.pdf
G125-FC12605F1-0450L
Виробник: Harwin Inc.
Description: CBL GECKO 1.25MM F 450MM 26POS
Packaging: Bag
Features: Polarizing Key, Screw Lock
Connector Type: Socket to Individual Wire Leads
Contact Finish: Gold
Color: White, Individual
Length: 1.48' (450.00mm)
Shielding: Unshielded
Number of Positions: 26
Number of Rows: 2
Cable Termination: Crimp
Pitch - Connector: 0.049" (1.25mm)
Part Status: Active
на замовлення 63 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
1+9160.21 грн
10+7498.71 грн
30+6939.90 грн
50+6282.57 грн
В кошику  од. на суму  грн.
M20-9732046 M20-973.pdf
M20-9732046
Виробник: Harwin Inc.
Description: CONN HEADER VERT 20POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Current Rating (Amps): 3A per Contact
Mounting Type: Through Hole
Number of Positions: 20
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.122" (3.10mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.496" (12.60mm)
Insulation Material: Polyamide (PA6T), Nylon 6T
Contact Length - Mating: 0.276" (7.00mm)
на замовлення 303 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
6+60.00 грн
10+48.83 грн
200+39.53 грн
Мінімальне замовлення: 6
В кошику  од. на суму  грн.
M55-7104042R PD010-Product-Datasheet-KONTROL-M55-range-BBi.pdf
M55-7104042R
Виробник: Harwin Inc.
Description: CONN HEADER SMD R/A 40POS 1.27MM
Packaging: Tape & Reel (TR)
Features: Board Guide, Solder Retention
Connector Type: Header
Current Rating (Amps): 1.2A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Number of Rows: 2
Style: Board to Board
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Rectangular
Insulation Height: 0.165" (4.20mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP)
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.157" (4.00mm)
на замовлення 9600 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна
600+109.59 грн
1200+100.50 грн
1800+97.66 грн
3000+88.41 грн
4200+86.34 грн
6000+84.19 грн
Мінімальне замовлення: 600
В кошику  од. на суму  грн.
Обрати Сторінку:   [  << Попередня Сторінка ]  1 21 42 63 84 105 126 147 163 164 165 166 167 168 169 170 171 172 173 189 210 218  [ Наступна Сторінка >> ]
