00123483 LAPP

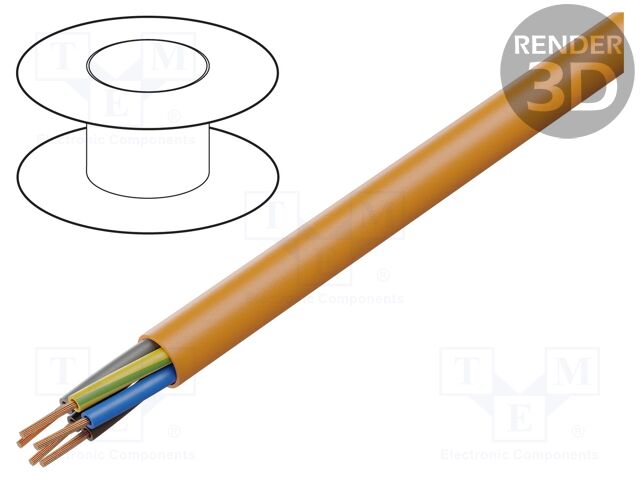

Category: Multicore Cables - Unshielded, Description: Wire; ÖLFLEX® 500 P; 5G1mm2; unshielded; 300V,500V; Cu; stranded, Type of wire: control cable, Manufacturer series: ÖLFLEX® 500 P, Cable structure: 5G1mm2, Shield structure: unshielded, Rated voltage: 0.3kV; 0.5kV, Wire insulation material: PUR, Kind of core: Cu, Core structure: stranded, Number of cores: 5, Core section: 1mm2, Core marking: colours without colour repetition + ground wire, Insulation colour: orange, Cable external diameter: 8.9mm, Kind of material: halogen free; no flame propagation, Operating temperature: -50...80°C, Resistance to: diluted acids; mechanical stesses; most of chemical compounds; most of lubricants; most of oils; temperature; to weather conditions; UV rays, Flexibility class: 6, Earth core: yellow-green, Cable application: hand tools; industrial tools, Conform to the norm: EN 50618; EN 50620; IEC 60332-1-2; IEC 61892-4, Cable features: elastic.
