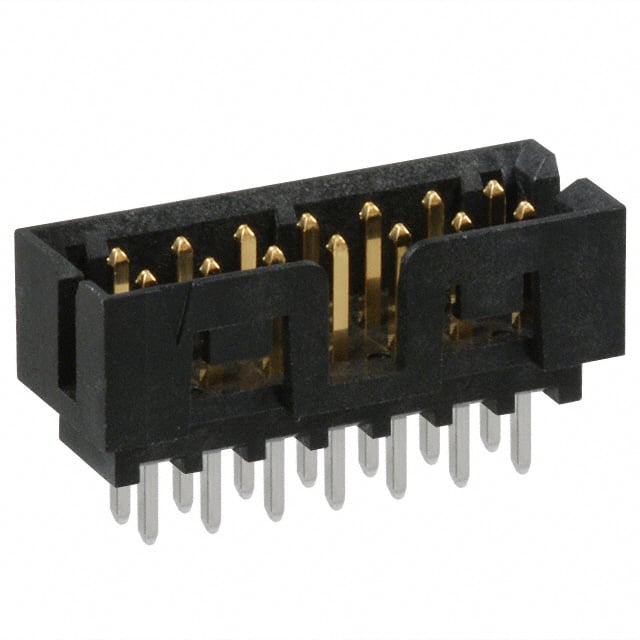

0878311420 Molex

Description: CONN HEADER VERT 14POS 2MM, Packaging: Tube, Features: Keying Slot, Connector Type: Header, Voltage Rating: 125V, Current Rating (Amps): 2A, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Black, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 15.0µin (0.38µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.098" (2.50mm), Insulation Height: 0.252" (6.40mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Glass Filled, Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.141" (3.60mm).
