1-5499160-0

1-5499160-0 TE Connectivity


DDEController?Action=srchrtrv&DocNm=5499160&DocType=Customer+Drawing&DocLang=English Виробник: TE Connectivity

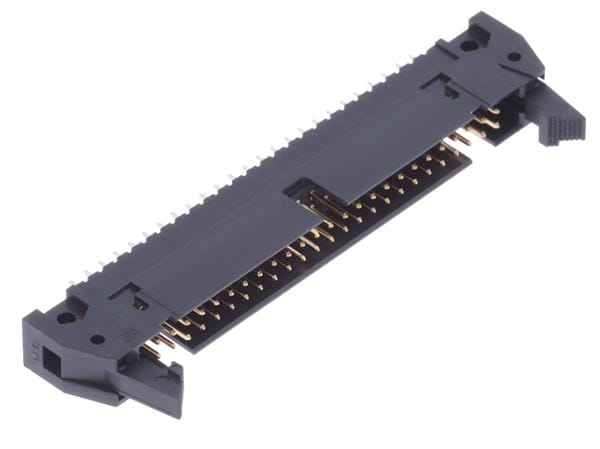

Headers & Wire Housings 50 POS HDR 30AU W/SHORT LATCHES
на замовлення 262 шт:

термін постачання 21-30 дні (днів)
Кількість Ціна без ПДВ
1+770.41 грн
10+ 657.99 грн
24+ 471.39 грн
1008+ 430.29 грн
Відгуки про товар
Написати відгук

Технічний опис 1-5499160-0 TE Connectivity

Description: CONN HEADER VERT 50POS 2.54MM, Packaging: Bulk, Features: Keying Slot, Mounting Flange, Connector Type: Header, Current Rating (Amps): 1A, Mounting Type: Through Hole, Number of Positions: 50, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Short, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold or Gold-Palladium, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Square, Contact Length - Post: 0.110" (2.79mm), Insulation Height: 0.549" (13.94mm), Shrouding: Shrouded - 4 Wall, Overall Contact Length: 0.639" (16.23mm), Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.240" (6.10mm).

Інші пропозиції 1-5499160-0 за ціною від 567.78 грн до 926.71 грн

Фото Назва Виробник Інформація Доступність
Ціна без ПДВ
1-5499160-0 1-5499160-0 Виробник : TE Connectivity AMP Connectors DDEController?Action=srchrtrv&DocNm=5499160&DocType=Customer+Drawing&DocLang=English Description: CONN HEADER VERT 50POS 2.54MM
Packaging: Bulk
Features: Keying Slot, Mounting Flange
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Through Hole
Number of Positions: 50
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Lock/Eject Hooks, Short
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold or Gold-Palladium
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Part Status: Active
Contact Shape: Square
Contact Length - Post: 0.110" (2.79mm)
Insulation Height: 0.549" (13.94mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.639" (16.23mm)
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.240" (6.10mm)
на замовлення 505 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна без ПДВ
1+836.24 грн
10+ 728.33 грн
100+ 631.98 грн
500+ 567.78 грн
1-5499160-0 1-5499160-0 Виробник : AMP - TE CONNECTIVITY 1-5499160-0 Description: AMP - TE CONNECTIVITY - 1-5499160-0 - WIRE-BOARD CONNECTOR, HEADER, 50 POSITION, 2.54MM
Kontaktüberzug: Gold Plated Contacts
Kontaktanschluss: Through Hole Straight
Rastermaß: 2.54
Anzahl der Kontakte: 50
Steckverbindersysteme: Wire-to-Board
Anzahl der Reihen: 2
Kontaktmaterial: Phosphor Bronze
Steckverbinderkragen: Shrouded
Produktpalette: AMP-LATCH Series
SVHC: No SVHC (08-Jul-2021)
на замовлення 41 шт:
термін постачання 21-31 дні (днів)
Кількість Ціна без ПДВ
1+926.71 грн
10+ 837.46 грн
25+ 773.5 грн
