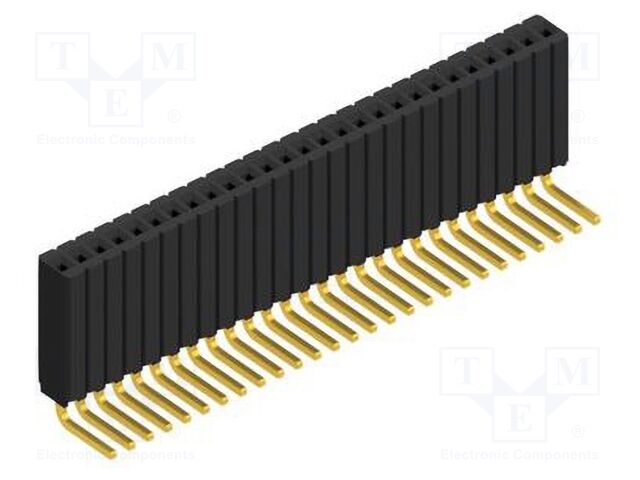

10027412 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 27; THT; 1.5A; 125V; 1x27
Operating temperature: -40...163°C
Rated voltage: 125V
Contact material: bronze
Plating thickness: 0.254µm
Contacts pitch: 1.27mm
Height: 2.5mm
Lead length: 3mm
Manufacturer series: BLM LA 1
Current rating: 1.5A
Spatial orientation: angled
Number of pins: 27
Connector pinout layout: 1x27
Type of connector: pin strips
Contact plating: gold-plated
Connector: socket
Kind of connector: female
Electrical mounting: THT
Flammability rating: UL94V-0
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 27; THT; 1.5A; 125V; 1x27
Operating temperature: -40...163°C
Rated voltage: 125V
Contact material: bronze
Plating thickness: 0.254µm
Contacts pitch: 1.27mm
Height: 2.5mm
Lead length: 3mm
Manufacturer series: BLM LA 1
Current rating: 1.5A
Spatial orientation: angled
Number of pins: 27
Connector pinout layout: 1x27
Type of connector: pin strips
Contact plating: gold-plated
Connector: socket
Kind of connector: female
Electrical mounting: THT
Flammability rating: UL94V-0
кількість в упаковці: 1 шт
