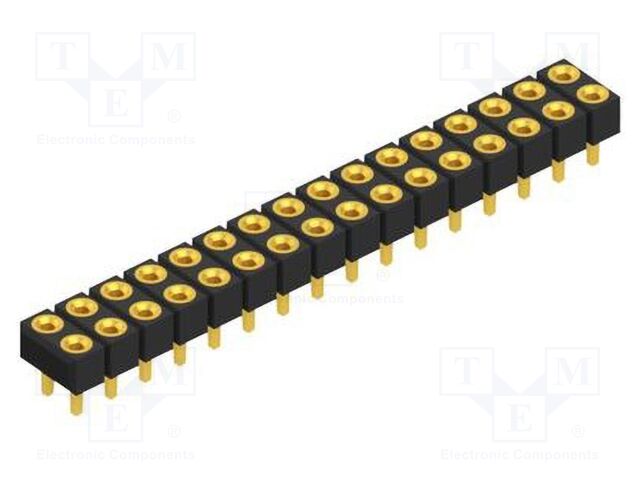

10042753 FISCHER ELEKTRONIK
Виробник: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 32; MK 228 THR; 1.5A
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 32
Manufacturer series: MK 228 THR
Current rating: 1.5A
Rated voltage: 60V
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x16
Contact plating: gold-plated
Connector variant: precision; turned contacts
Row pitch: 2.54mm
Flammability rating: UL94V-0
Height: 2.5mm
Plating thickness: 0.25µm
Contact material: beryllium copper
Overall length: 5mm
Operating temperature: -40...163°C
Lead length: 2.5mm
кількість в упаковці: 1 шт
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 32; MK 228 THR; 1.5A
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 32
Manufacturer series: MK 228 THR
Current rating: 1.5A
Rated voltage: 60V
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 2x16
Contact plating: gold-plated
Connector variant: precision; turned contacts
Row pitch: 2.54mm
Flammability rating: UL94V-0
Height: 2.5mm
Plating thickness: 0.25µm
Contact material: beryllium copper
Overall length: 5mm
Operating temperature: -40...163°C
Lead length: 2.5mm
кількість в упаковці: 1 шт
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 10042753 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 32; MK 228 THR; 1.5A, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 32, Manufacturer series: MK 228 THR, Current rating: 1.5A, Rated voltage: 60V, Spatial orientation: straight, Electrical mounting: THT, Contacts pitch: 2.54mm, Connector pinout layout: 2x16, Contact plating: gold-plated, Connector variant: precision; turned contacts, Row pitch: 2.54mm, Flammability rating: UL94V-0, Height: 2.5mm, Plating thickness: 0.25µm, Contact material: beryllium copper, Overall length: 5mm, Operating temperature: -40...163°C, Lead length: 2.5mm, кількість в упаковці: 1 шт.
