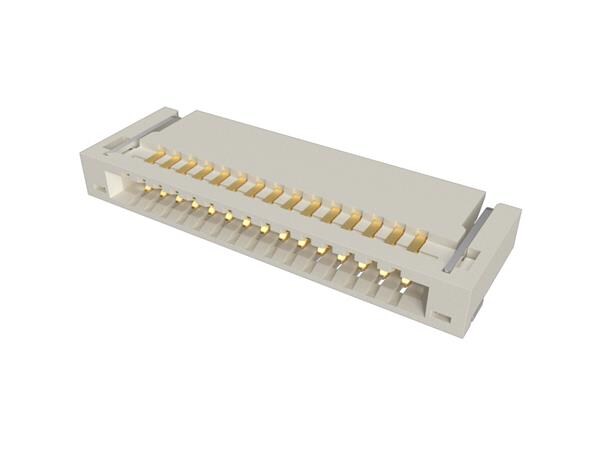

10051922-1510EHLF Amphenol ICC (FCI)
Виробник: Amphenol ICC (FCI)Description: CONN FPC BOTTOM 15POS 0.5MM R/A
Features: Solder Retention, Zero Insertion Force (ZIF)
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Voltage Rating: 50V
Mounting Type: Surface Mount, Right Angle
Number of Positions: 15
Pitch: 0.020" (0.50mm)
Operating Temperature: -55°C ~ 85°C
Termination: Solder
Height Above Board: 0.051" (1.30mm)
Locking Feature: Flip Lock, Backlock
Material Flammability Rating: UL94 V-0
Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free
Contact Material: Copper Alloy
FFC, FCB Thickness: 0.30mm
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled
Cable End Type: Tapered
Flat Flex Type: FPC
Connector/Contact Type: Contacts, Bottom
товару немає в наявності
Відгуки про товар
Написати відгук
Технічний опис 10051922-1510EHLF Amphenol ICC (FCI)
Description: CONN FPC BOTTOM 15POS 0.5MM R/A, Features: Solder Retention, Zero Insertion Force (ZIF), Packaging: Tape & Reel (TR), Contact Finish: Gold, Voltage Rating: 50V, Mounting Type: Surface Mount, Right Angle, Number of Positions: 15, Pitch: 0.020" (0.50mm), Operating Temperature: -55°C ~ 85°C, Termination: Solder, Height Above Board: 0.051" (1.30mm), Locking Feature: Flip Lock, Backlock, Material Flammability Rating: UL94 V-0, Actuator Material: Polyamide (PA9T), Nylon 9T, Glass Filled, Halogen Free, Contact Material: Copper Alloy, FFC, FCB Thickness: 0.30mm, Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Cable End Type: Tapered, Flat Flex Type: FPC, Connector/Contact Type: Contacts, Bottom.
Інші пропозиції 10051922-1510EHLF
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
10051922-1510EHLF | Виробник : Amphenol FCI |
FFC & FPC Connectors 0.50mm Flex Connector, VLL Series, 15 Position, Lower Side Contact, Side Entry Surface Mount ZIF Connector, Halogen Free and Lead Free Type. |
товару немає в наявності |
