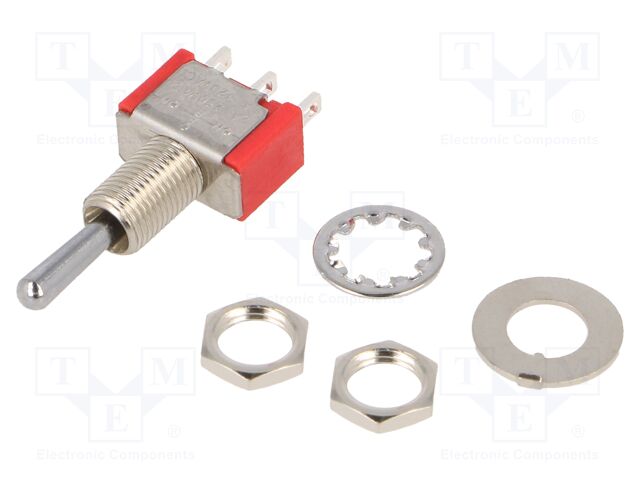

100SP3T1B1M1QEH E-Switch
Виробник: E-Switch
Description: SWITCH TOGGLE SPDT 5A 120V
Packaging: Bulk
Features: Epoxy Sealed Terminals
Current Rating (Amps): 5A (AC/DC)
Mounting Type: Panel Mount
Circuit: SPDT
Switch Function: On-Off-On
Operating Temperature: -30°C ~ 85°C
Termination Style: Solder Lug
Illumination: Non-Illuminated
Bushing Thread: 1/4-40
Actuator Length: 10.41mm
Actuator Type: Standard Round
Panel Cutout Dimensions: Circular - 6.35mm Dia
Voltage Rating - AC: 120 V
Voltage Rating - DC: 28 V
| Кількість | Ціна |
|---|---|
| 2+ | 220.74 грн |
| 10+ | 183.14 грн |
| 25+ | 172.75 грн |
| 96+ | 148.74 грн |
| 192+ | 142.26 грн |
| 288+ | 138.60 грн |
| 576+ | 130.38 грн |
Відгуки про товар
Написати відгук
Технічний опис 100SP3T1B1M1QEH E-Switch
Category: Toggle Switches, Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ, Type of switch: toggle, Number of positions: 3, Stable positions number: 3, Contacts configuration: SP3T, Switching method: ON-OFF-ON, AC contacts rating @R: 2A / 250V AC, Leads: for soldering, Operating temperature: -30...85°C, Mounting hole diameter: Ø6.35mm, Max. contact resistance:: 10mΩ, Body dimensions: 12.7x6.86x8.89mm, Electrical life: 40000 cycles, Contact plating: silver plated, DC contacts rating @R: 5A / 28V DC, Lever length: 10.41mm, Contact material: copper, Mounting: on panel.
Інші пропозиції 100SP3T1B1M1QEH за ціною від 128.48 грн до 233.81 грн
| Фото | Назва | Виробник | Інформація | Доступність | Ціна |
||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100SP3T1B1M1QEH | E-SWITCH |
Category: Toggle Switches Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ Type of switch: toggle Number of positions: 3 Stable positions number: 3 Contacts configuration: SP3T Switching method: ON-OFF-ON AC contacts rating @R: 2A / 250V AC Leads: for soldering Operating temperature: -30...85°C Mounting hole diameter: Ø6.35mm Max. contact resistance:: 10mΩ Body dimensions: 12.7x6.86x8.89mm Electrical life: 40000 cycles Contact plating: silver plated DC contacts rating @R: 5A / 28V DC Lever length: 10.41mm Contact material: copper Mounting: on panel |
на замовлення 146 шт: термін постачання 14-30 дні (днів) |
|
||||||||||||||
 |
100SP3T1B1M1QEH | E-Switch |
Toggle Switches ON-OFF-ON SLDR MNT |
на замовлення 913 шт: термін постачання 118-127 дні (днів) |
|
| 100SP3T1B1M1QEH |
|
Виробник: E-SWITCH
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ
Type of switch: toggle
Number of positions: 3
Stable positions number: 3
Contacts configuration: SP3T
Switching method: ON-OFF-ON
AC contacts rating @R: 2A / 250V AC
Leads: for soldering
Operating temperature: -30...85°C
Mounting hole diameter: Ø6.35mm
Max. contact resistance:: 10mΩ
Body dimensions: 12.7x6.86x8.89mm
Electrical life: 40000 cycles
Contact plating: silver plated
DC contacts rating @R: 5A / 28V DC
Lever length: 10.41mm
Contact material: copper
Mounting: on panel
Category: Toggle Switches
Description: Switch: toggle; Pos: 3; SP3T; ON-OFF-ON; 2A/250VAC; 5A/28VDC; 10mΩ
Type of switch: toggle
Number of positions: 3
Stable positions number: 3
Contacts configuration: SP3T
Switching method: ON-OFF-ON
AC contacts rating @R: 2A / 250V AC
Leads: for soldering
Operating temperature: -30...85°C
Mounting hole diameter: Ø6.35mm
Max. contact resistance:: 10mΩ
Body dimensions: 12.7x6.86x8.89mm
Electrical life: 40000 cycles
Contact plating: silver plated
DC contacts rating @R: 5A / 28V DC
Lever length: 10.41mm
Contact material: copper
Mounting: on panel
на замовлення 146 шт:
термін постачання 14-30 дні (днів)
| Кількість | Ціна |
|---|---|
| 3+ | 225.39 грн |
| 5+ | 193.32 грн |
| 10+ | 184.91 грн |
| 100SP3T1B1M1QEH |
|
Виробник: E-Switch
Toggle Switches ON-OFF-ON SLDR MNT
Toggle Switches ON-OFF-ON SLDR MNT
на замовлення 913 шт:
термін постачання 118-127 дні (днів)
| Кількість | Ціна |
|---|---|
| 2+ | 233.81 грн |
| 10+ | 200.75 грн |
| 96+ | 146.64 грн |
| 288+ | 143.84 грн |
| 576+ | 136.86 грн |
| 1056+ | 132.67 грн |
| 2592+ | 128.48 грн |
