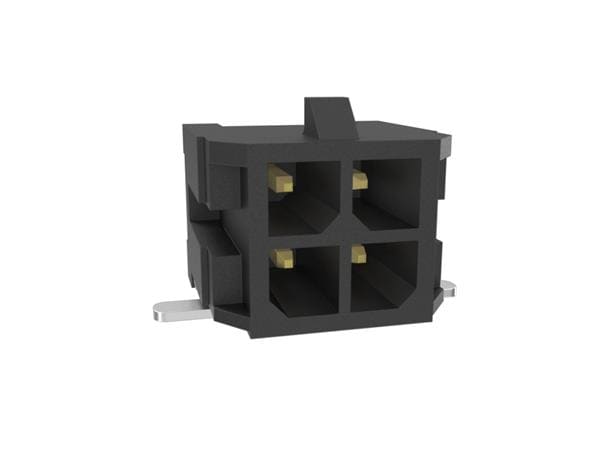

10137924-0441LF AMPHENOL
Виробник: AMPHENOL
Category: Raster signal connectors 3,00mm
Description: Connector: wire-board; male; PIN: 4; Minitek® Pwr 3.0; Inom: 8.5A
Manufacturer series: Minitek® Pwr 3.0
Number of pins: 4
Kind of connector: male
Connector variant: Glow-Wire; shrouded
Contact plating: tinned
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Contacts pitch: 3mm
Current rating: 8.5A
Maximum current: 8.5A
Max. voltage: 600V AC
Spatial orientation: angled
Type of connector: wire-board
Body colour: black
Contact material: copper alloy
| Кількість | Ціна |
|---|---|
| 200+ | 119.42 грн |
| 400+ | 99.04 грн |
| 600+ | 96.50 грн |
Відгуки про товар
Написати відгук
Технічний опис 10137924-0441LF AMPHENOL
Description: 10137924-0441LF-MTK 3.0 04P DR R, Features: Glow Wire Compliant, Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 600VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Right Angle, Number of Positions: 4, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.118" (3.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Contact Shape: Square, Insulation Height: 0.290" (7.37mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free, Row Spacing - Mating: 0.118" (3.00mm).
Інші пропозиції 10137924-0441LF
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
10137924-0441LF | Amphenol ICC (FCI) |
Description: 10137924-0441LF-MTK 3.0 04P DR R Features: Glow Wire Compliant, Solder Retention Packaging: Tape & Reel (TR) Connector Type: Header Voltage Rating: 600VAC/DC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Surface Mount, Right Angle Number of Positions: 4 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.118" (3.00mm) Contact Finish - Mating: Gold Contact Finish Thickness - Mating: 30.0µin (0.76µm) Contact Finish - Post: Tin Contact Shape: Square Insulation Height: 0.290" (7.37mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free Row Spacing - Mating: 0.118" (3.00mm) |
товару немає в наявності |
В кошику од. на суму грн. |
 |
10137924-0441LF | Amphenol FCI |
Headers & Wire Housings Minitek Power3.0 DR RA SMT HDR 4Pos 30Mic Au |
товару немає в наявності |
В кошику од. на суму грн. |
| 10137924-0441LF |
|
Виробник: Amphenol ICC (FCI)
Description: 10137924-0441LF-MTK 3.0 04P DR R
Features: Glow Wire Compliant, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount, Right Angle
Number of Positions: 4
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Shape: Square
Insulation Height: 0.290" (7.37mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
Row Spacing - Mating: 0.118" (3.00mm)
