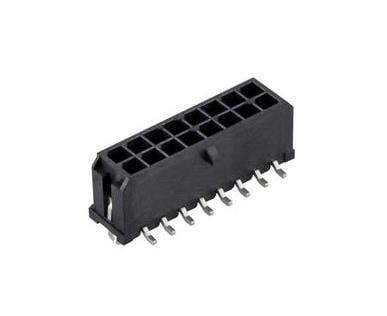

10137927-1611LF AMPHENOL
Виробник: AMPHENOL
Category: Raster signal connectors 3,00mm
Description: Connector: wire-board; male; PIN: 16; Minitek® Pwr 3.0; 8.5A; 600V
Manufacturer series: Minitek® Pwr 3.0
Number of pins: 16
Rated voltage: 0.6kV
Max. voltage: 600V AC
Body colour: black
Contact material: copper alloy
Connector variant: Glow-Wire; pick and place; shrouded
Kind of connector: male
Spatial orientation: straight
Contact plating: tinned
Flammability rating: UL94V-0
Type of connector: wire-board
Operating temperature: -40...105°C
Contacts pitch: 3mm
Current rating: 8.5A
Відгуки про товар
Написати відгук
Технічний опис 10137927-1611LF AMPHENOL
Description: CONN PWR3.0 V/T SMT, Features: Board Lock, Glow Wire Compliant, Pick and Place, Packaging: Tray, Connector Type: Header, Voltage Rating: 600VAC/DC, Current Rating (Amps): Varies by Wire Gauge, Mounting Type: Surface Mount, Number of Positions: 16, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.118" (3.00mm), Contact Finish - Mating: Tin, Contact Shape: Square, Insulation Height: 0.390" (9.91mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free, Row Spacing - Mating: 0.118" (3.00mm).
Інші пропозиції 10137927-1611LF
| Фото | Назва | Виробник | Інформація |
Доступність |
Ціна |
|---|---|---|---|---|---|
 |
10137927-1611LF | Amphenol ICC (FCI) |
Description: CONN PWR3.0 V/T SMT Features: Board Lock, Glow Wire Compliant, Pick and Place Packaging: Tray Connector Type: Header Voltage Rating: 600VAC/DC Current Rating (Amps): Varies by Wire Gauge Mounting Type: Surface Mount Number of Positions: 16 Number of Rows: 2 Style: Board to Cable/Wire Operating Temperature: -40°C ~ 105°C Contact Type: Male Pin Fastening Type: Locking Ramp Number of Positions Loaded: All Termination: Solder Material Flammability Rating: UL94 V-0 Contact Material: Copper Alloy Insulation Color: Black Pitch - Mating: 0.118" (3.00mm) Contact Finish - Mating: Tin Contact Shape: Square Insulation Height: 0.390" (9.91mm) Shrouding: Shrouded - 4 Wall Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free Row Spacing - Mating: 0.118" (3.00mm) |
товару немає в наявності |
Мінімальне замовлення: 3000 шт В кошику од. на суму грн. |
 |
10137927-1611LF | Amphenol FCI |
Power to the Board Minitek Power3.0 DR VT SMT HDR 16Pos Tin |
товару немає в наявності |
Мінімальне замовлення: 3000 шт В кошику од. на суму грн. |
| 10137927-1611LF |
|
Виробник: Amphenol ICC (FCI)
Description: CONN PWR3.0 V/T SMT
Features: Board Lock, Glow Wire Compliant, Pick and Place
Packaging: Tray
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Tin
Contact Shape: Square
Insulation Height: 0.390" (9.91mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
Row Spacing - Mating: 0.118" (3.00mm)
Description: CONN PWR3.0 V/T SMT
Features: Board Lock, Glow Wire Compliant, Pick and Place
Packaging: Tray
Connector Type: Header
Voltage Rating: 600VAC/DC
Current Rating (Amps): Varies by Wire Gauge
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Locking Ramp
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Tin
Contact Shape: Square
Insulation Height: 0.390" (9.91mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Liquid Crystal Polymer (LCP), Halogen Free
Row Spacing - Mating: 0.118" (3.00mm)
товару немає в наявності
Мінімальне замовлення: 3000 шт
В кошику
од. на суму грн.
| 10137927-1611LF |
|
Виробник: Amphenol FCI
Power to the Board Minitek Power3.0 DR VT SMT HDR 16Pos Tin
Power to the Board Minitek Power3.0 DR VT SMT HDR 16Pos Tin
товару немає в наявності
Мінімальне замовлення: 3000 шт
В кошику
од. на суму грн.
