Продукція > AMPHENOL ICC (FCI) > 10157759-02040LF

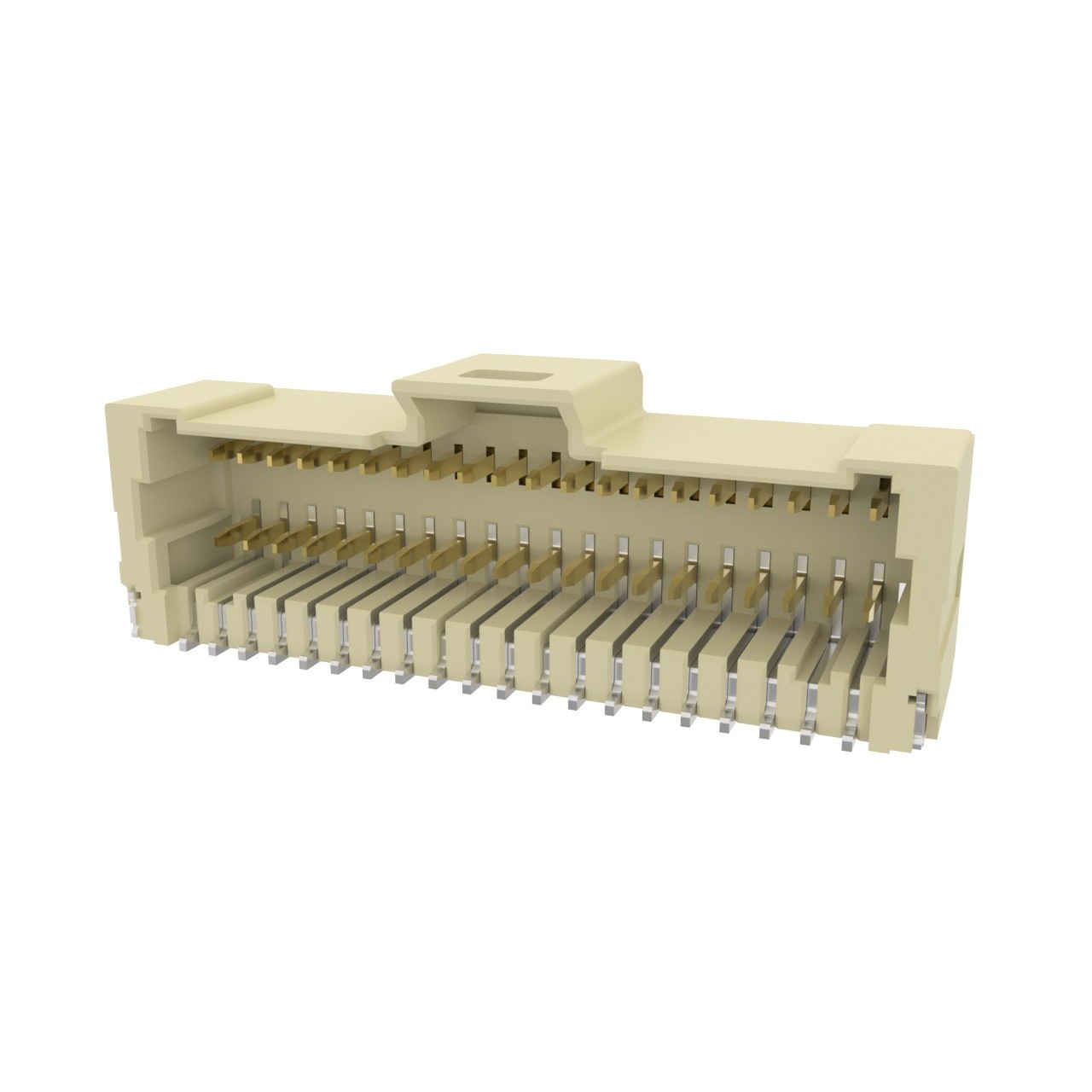

10157759-02040LF

10157759-02040LF Amphenol ICC (FCI)

bwb-fitmate-1-00mm.pdf
Виробник: Amphenol ICC (FCI)
Description: 1.0MM PITCH, HEADER, RIG-HT ANGL
Insulation Material: Polyamide (PA4T), Nylon 4T, Halogen Free
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.323" (8.20mm)
Contact Shape: Rectangular
Contact Finish - Post: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Mating: Gold
Pitch - Mating: 0.039" (1.00mm)
Insulation Color: Natural
Contact Material: Phosphor Bronze
Material Flammability Rating: UL94 V-0
Termination: Solder
Number of Positions Loaded: All
Fastening Type: Latch Holder
Contact Type: Male Pin
Operating Temperature: -40°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 2
Number of Positions: 40
Mounting Type: Surface Mount, Right Angle
Current Rating (Amps): 1A
Voltage Rating: 50VAC/DC
Connector Type: Header
Features: Solder Retention
Packaging: Cut Tape (CT)
на замовлення 2000 шт:
термін постачання 21-31 дні (днів)
КількістьЦіна
2+206.60 грн
10+168.69 грн
100+143.35 грн
500+120.09 грн
1000+119.57 грн
Мінімальне замовлення: 2 шт
В кошику  од. на суму  грн.
Відгуки про товар
Написати відгук

Технічний опис 10157759-02040LF Amphenol ICC (FCI)

Description: 1.0MM PITCH, HEADER, RIG-HT ANGL, Features: Solder Retention, Packaging: Tape & Reel (TR), Connector Type: Header, Voltage Rating: 50VAC/DC, Current Rating (Amps): 1A, Mounting Type: Surface Mount, Right Angle, Number of Positions: 40, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Phosphor Bronze, Insulation Color: Natural, Pitch - Mating: 0.039" (1.00mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: FLASH, Contact Finish - Post: Gold, Contact Shape: Rectangular, Insulation Height: 0.323" (8.20mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA4T), Nylon 4T, Halogen Free.

Інші пропозиції 10157759-02040LF за ціною від 173.79 грн до 173.79 грн

Фото Назва Виробник Інформація Доступність Ціна
10157759-02040LF 10157759-02040LF Amphenol ICC (FCI) bwb-fitmate-1-00mm.pdf Description: 1.0MM PITCH, HEADER, RIG-HT ANGL
Features: Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 50VAC/DC
Current Rating (Amps): 1A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Rectangular
Insulation Height: 0.323" (8.20mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Halogen Free
на замовлення 2000 шт:
термін постачання 21-31 дні (днів)
 Мінімальне замовлення: 2000 шт
В кошику  од. на суму  грн.
10157759-02040LF AMPHENOL bwb-fitmate-1-00mm.pdf Category: Automotive connectors
Description: Connector: wire-board; male; 1A; Contacts: phosphor bronze
Type of connector: wire-board
Current rating: 1A
Contact material: phosphor bronze
Contact plating: gold-plated
Contacts pitch: 0.991mm
Body colour: natural
Kind of connector: male
Connector variant: shrouded
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Locking system: for latch
на замовлення 8000 шт:
термін постачання 14-30 дні (днів)
2000+173.79 грн
Мінімальне замовлення: 2000 шт
В кошику  од. на суму  грн.
10157759-02040LF bwb-fitmate-1-00mm.pdf
10157759-02040LF
Виробник: Amphenol ICC (FCI)
Description: 1.0MM PITCH, HEADER, RIG-HT ANGL
Features: Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Voltage Rating: 50VAC/DC
Current Rating (Amps): 1A
Mounting Type: Surface Mount, Right Angle
Number of Positions: 40
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Natural
Pitch - Mating: 0.039" (1.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: FLASH
Contact Finish - Post: Gold
Contact Shape: Rectangular
Insulation Height: 0.323" (8.20mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Halogen Free
на замовлення 2000 шт:
термін постачання 21-31 дні (днів)
Мінімальне замовлення: 2000 шт
В кошику  од. на суму  грн.
10157759-02040LF bwb-fitmate-1-00mm.pdf
Виробник: AMPHENOL
Category: Automotive connectors
Description: Connector: wire-board; male; 1A; Contacts: phosphor bronze
Type of connector: wire-board
Current rating: 1A
Contact material: phosphor bronze
Contact plating: gold-plated
Contacts pitch: 0.991mm
Body colour: natural
Kind of connector: male
Connector variant: shrouded
Flammability rating: UL94V-0
Operating temperature: -40...105°C
Locking system: for latch
на замовлення 8000 шт:
термін постачання 14-30 дні (днів)
КількістьЦіна
2000+173.79 грн
Мінімальне замовлення: 2000 шт
В кошику  од. на суму  грн.
